Omron V430-F Series - V430-Series and ESP Software Quick Start; Step 1 -Check Hardware and Connect the System

Auto Focus Multi Code Reader V430-series User’s Manual (Z392) 1-17
Quick Start
V430-series and ESP Software Quick Start
Step 1 — Check Hardware and Connect the System
Note: The V430-series can be configured as an RS-232 reader with the V430-W2-3M cable.
Item Description Model Number
1 V430-F V430-F
2 Power Supply, 100-240VAC, +24VDC, M12 12-Pin Socket V430-W8-3M
3 Cordset, Host, Ethernet, M12 8-Pin Plug (Screw-On) to RJ45, 3 m. V430-WE-3M
1

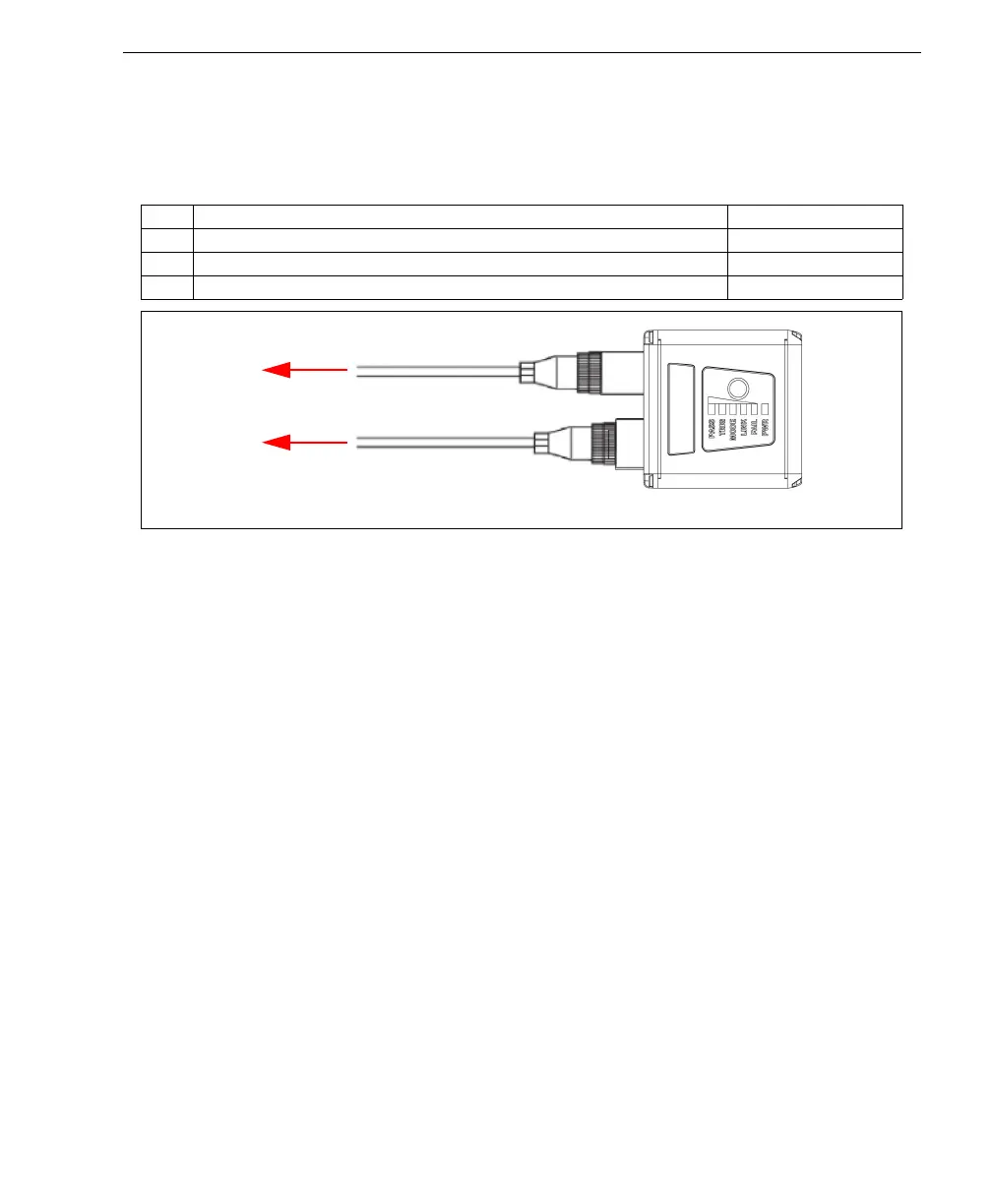

V430-series – Standalone Ethernet Configuration
To Power
To Host
2
3
