Overview of Symbol Quality
Overview of Symbol Quality
Information about symbol quality and timing can be appended to symbol data by enabling
specific evaluation parameters. The order in which these values are appended corresponds
to the order in ISO/IEC 16022 Parameters, Microscan Grading Parameters, ISO/IEC
15415 Parameters, ISO/IEC 15416 Parameters, and ISO/IEC 29158 Parameters.
Symbol Quality parameters are separated into ISO/IEC 16022 Symbol Quality Output,
Microscan Symbol Quality Output, ISO/IEC 15415 Symbol Quality Output, ISO/IEC 15416
Symbol Quality Output, and ISO/IEC 29158 Symbol Quality Output.
Total Read Time , Symbol Quality Separator , and Output Mode are common parameters.

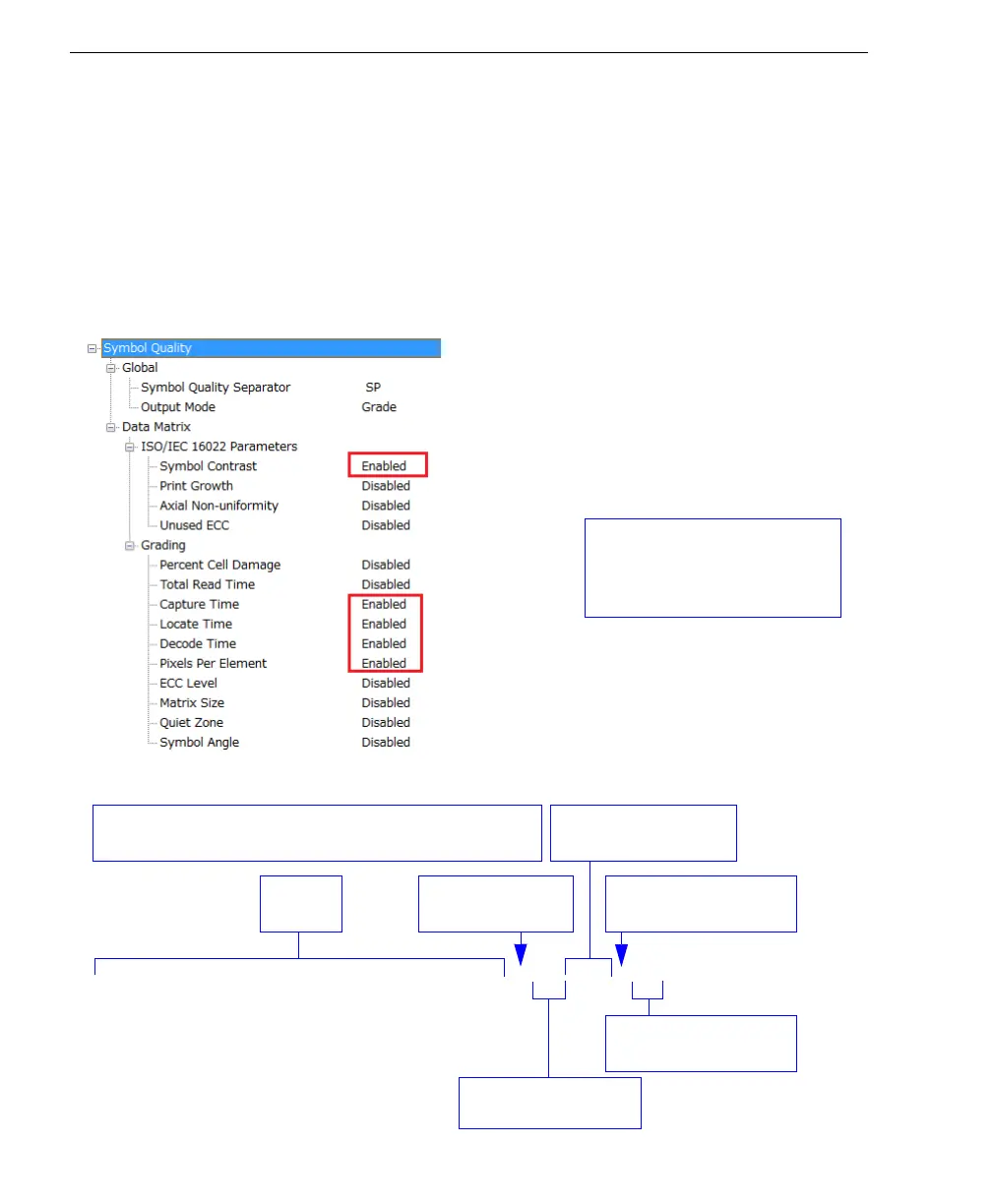

The enabled Symbol
Quality parameters are
appended to symbol data
output
.
0123456789abcdefghijklmnopqrstuv A 30 210 3 17
Symbol
Data
Symbol Contrast
(ISO/IEC 16022)
Capture Time
(Microscan Grading)
Locate Time
(Microscan Grading)
Decode Time
(Microscan Grading)
Pixels Per Element
(Microscan Grading)
If you enable the outputs shown above, they will be returned
in this order:
