Auto Focus Multi Code Reader V430-series User’s Manual (Z392) 1-11
Quick Start
Spot Focus
If the camera is in Continuous mode or Continuous Auto (Continuous mode with Auto
Photometry enabled), you can perform a localized quick focus in the image.

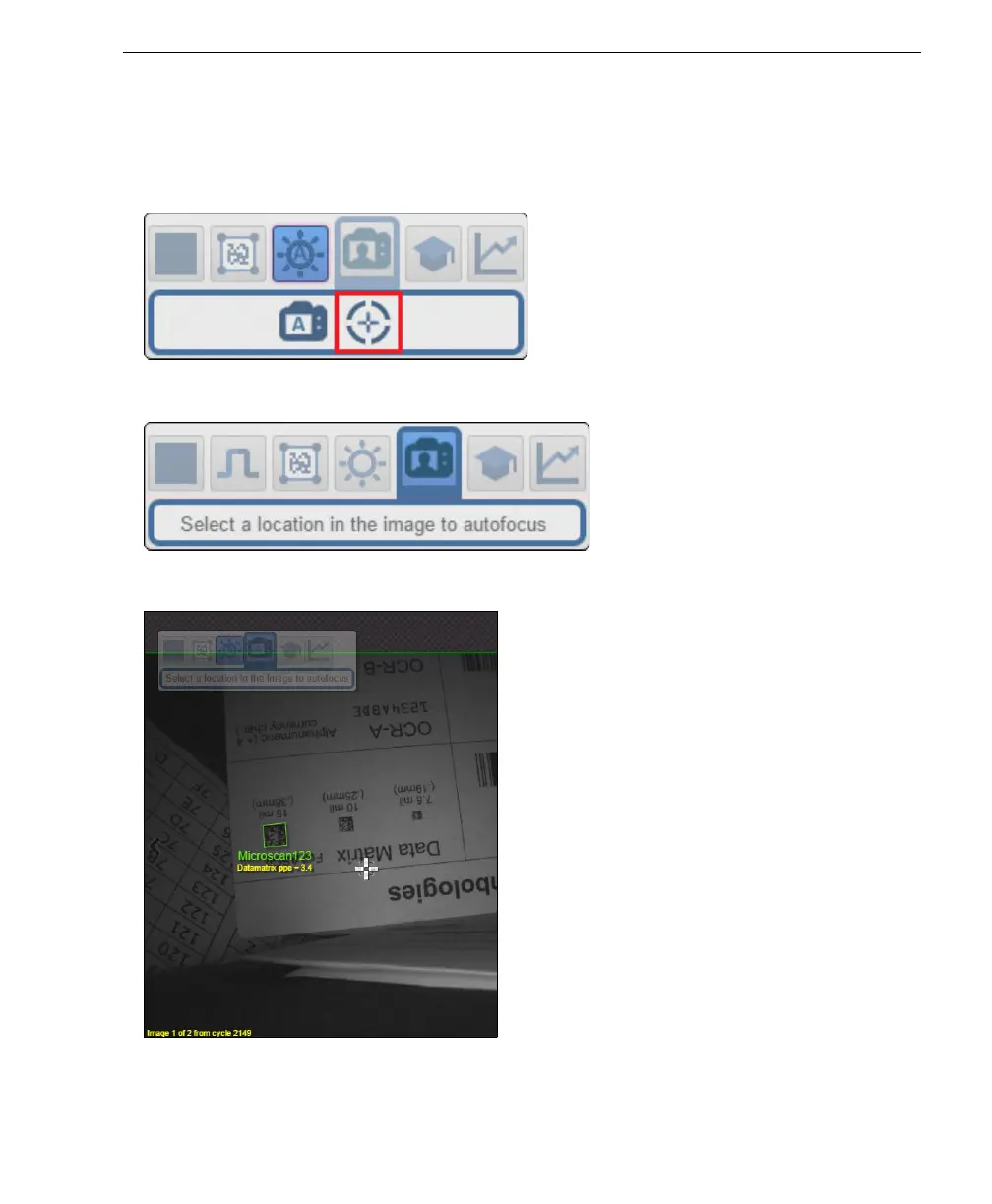

If you click the focus button, the Autofocus and Spot Focus icons appear:
When you click the Spot Focus icon, the Select a location in the image to autofocus
message appears:
The cursor transforms into crosshairs as shown in the example below. This allows you to
select the section of the image in which you want to perform a quick focus.
Note: If you click the Autofocus button to the left of the Spot Focus button, the reader will
switch from Spot Focus to regular Autofocus functionality. If the reader is in Triggered
mode, only the Spot Focus icon will appear.
