A-10 Auto Focus Multi Code Reader V430-series User’s Manual (Z392)
General Specifications

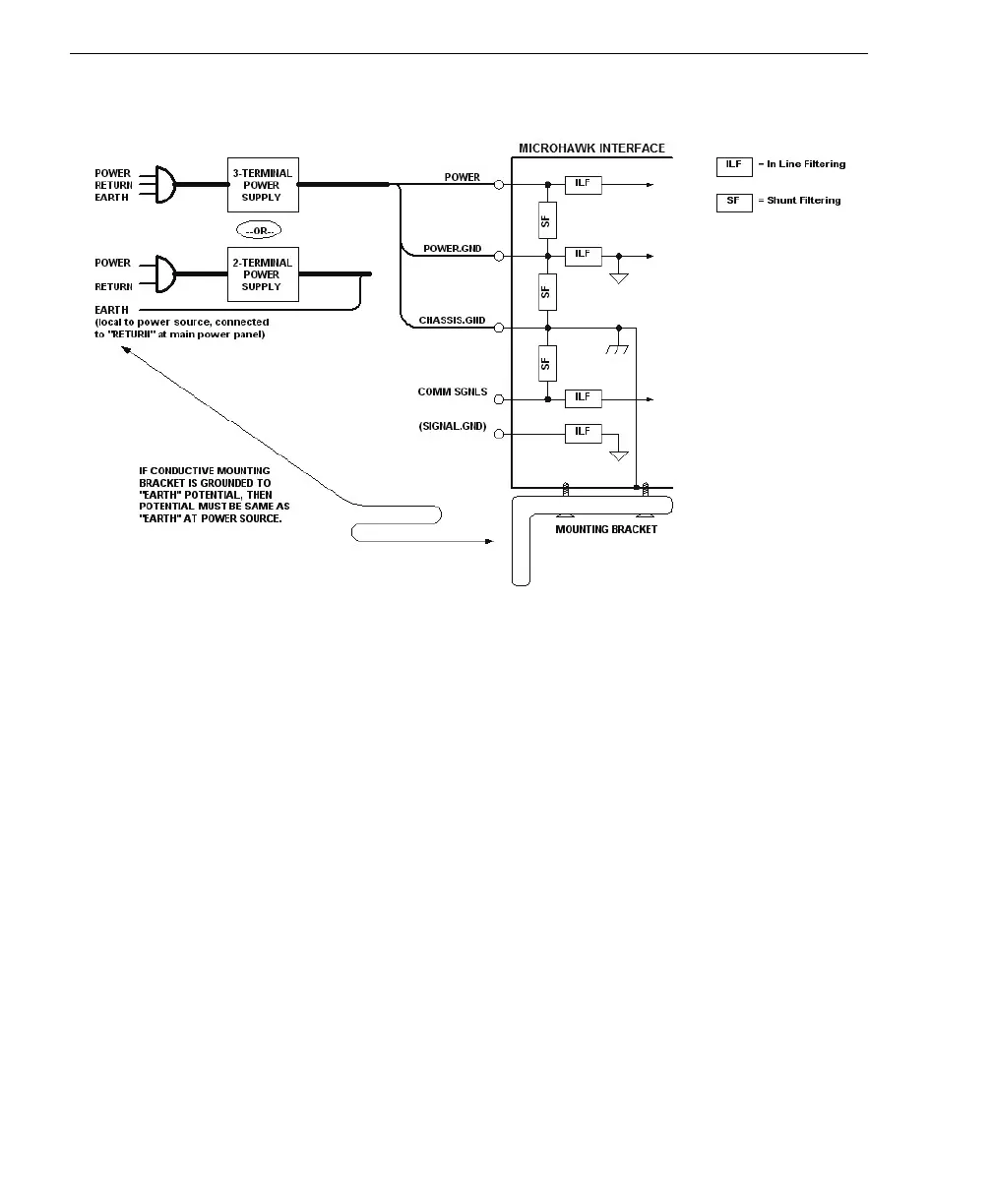

Expected Power and Ground Connections for Proper Operation
Grounding Notes
• Ensure that mounting bracket "Earth" is at the same potential as power source "Earth".
• Supply "Return" and "Earth" ground must be stable, low-impedance reference points.
• "2-Terminal Power Supply" must still provide an "Earth" connection to the imager.
• "Signal Ground" can be used for communications and/or discrete signal ground refer-
ence. It must not be used as Power Ground or Earth Ground.
