Manual Version e1-4.3.0.ae-R3. Page
102
6.14 Manual valve operation

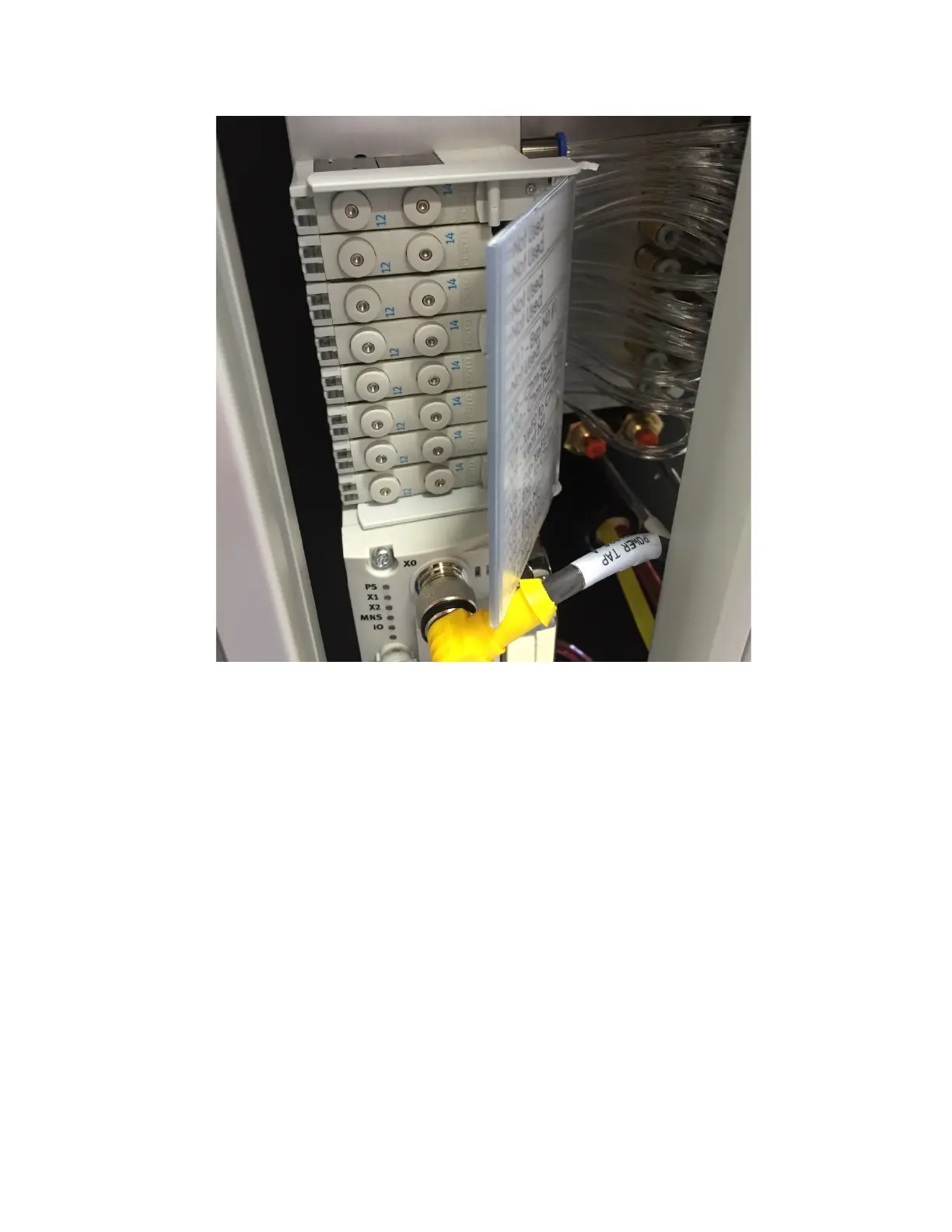

Figure 49. Valve manifold which is mounted on the outside of the gas box
towards the front of the system.
