Manual Version e1-4.3.0.ae-R3. Page

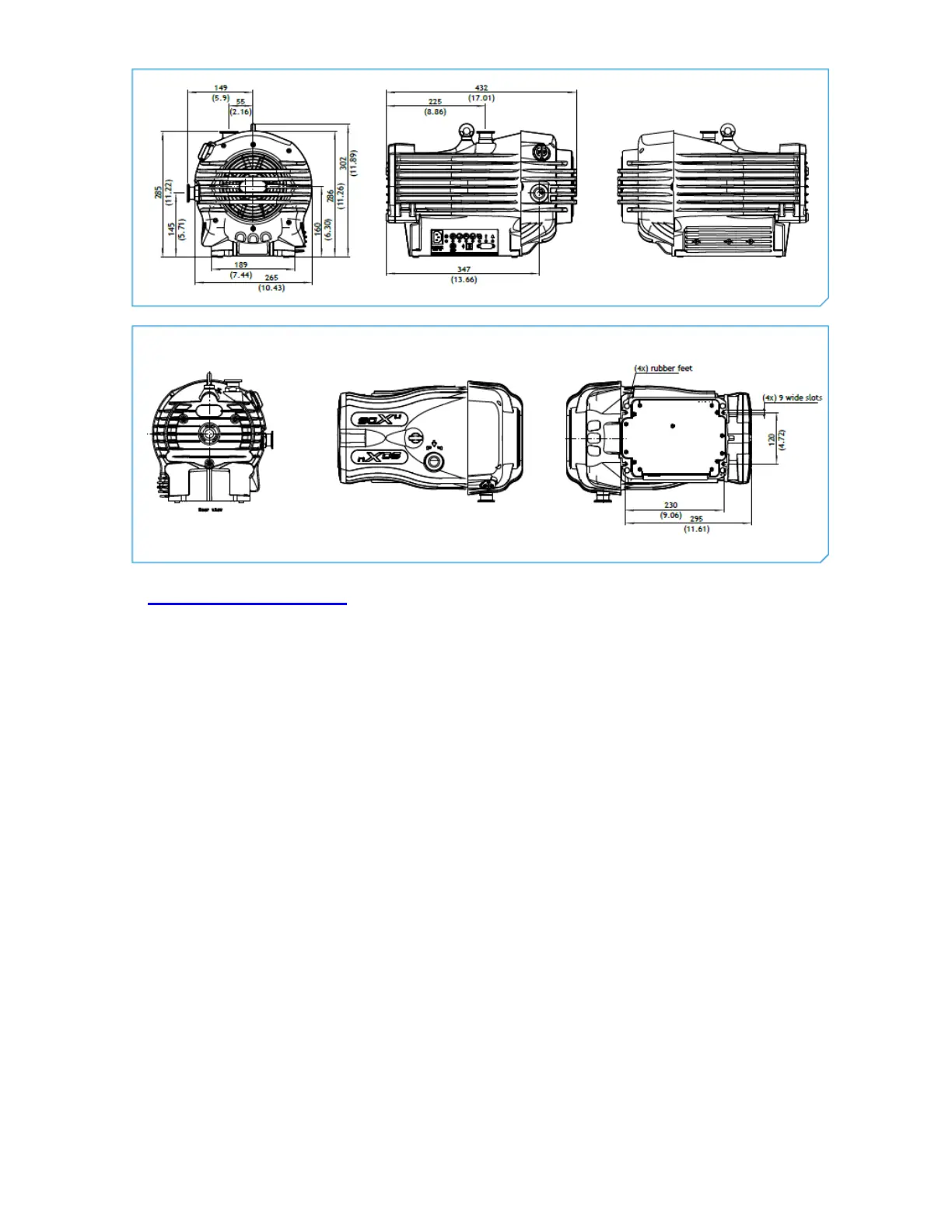

Figure 4. nXDS6i pump dimensions in mm. Graphic taken from Edwards nXDS6i datasheet. See
www.edwardsvacuum.com for more details. The pump is to be connected near the system
using the supplied 1.2 m long bellows connection. If necessary, longer connections are
possible with customer supplied connections. The mass of this pump is 26.2 kg.
4.1.4 Electrical Services Required
For North American operations only, the e1 Series is supplied with an appropriate 115-volt single-phase
power cable and plug. For all other countries the unit is delivered with a mains power cable terminating
with bare wires as standard. It is the responsibility of the customer to provide a suitable mains
connector that complies with the local regulations governing electrical connections. The vacuum pump
is controlled via the system’s electrical box.
4.1.5 General Ambient Temperatures
The area accommodating the e1 Series should have:
• Adequate space all around the unit for servicing,
• Adequate space behind the unit for proper ventilation, and
• No unnecessary items near the unit.
Temperature range for operation of the system: 5-40°C
Temperature range for maintaining proper process range: 19-24°C
Humidity range for operation of the system: Less than 50% at 40°C
Humidity range for maintaining proper process range: 68°F (20°C) 40-70%
Maximum Altitude for operation of the system: 2,000m above mean sea level
