Orbotech SPTS Xactix e1 Series - Cylinder and Valve for Xef2

Manual Version e1-4.3.0.ae-R3. Page
23
4.3 Cylinder and valve for XeF2

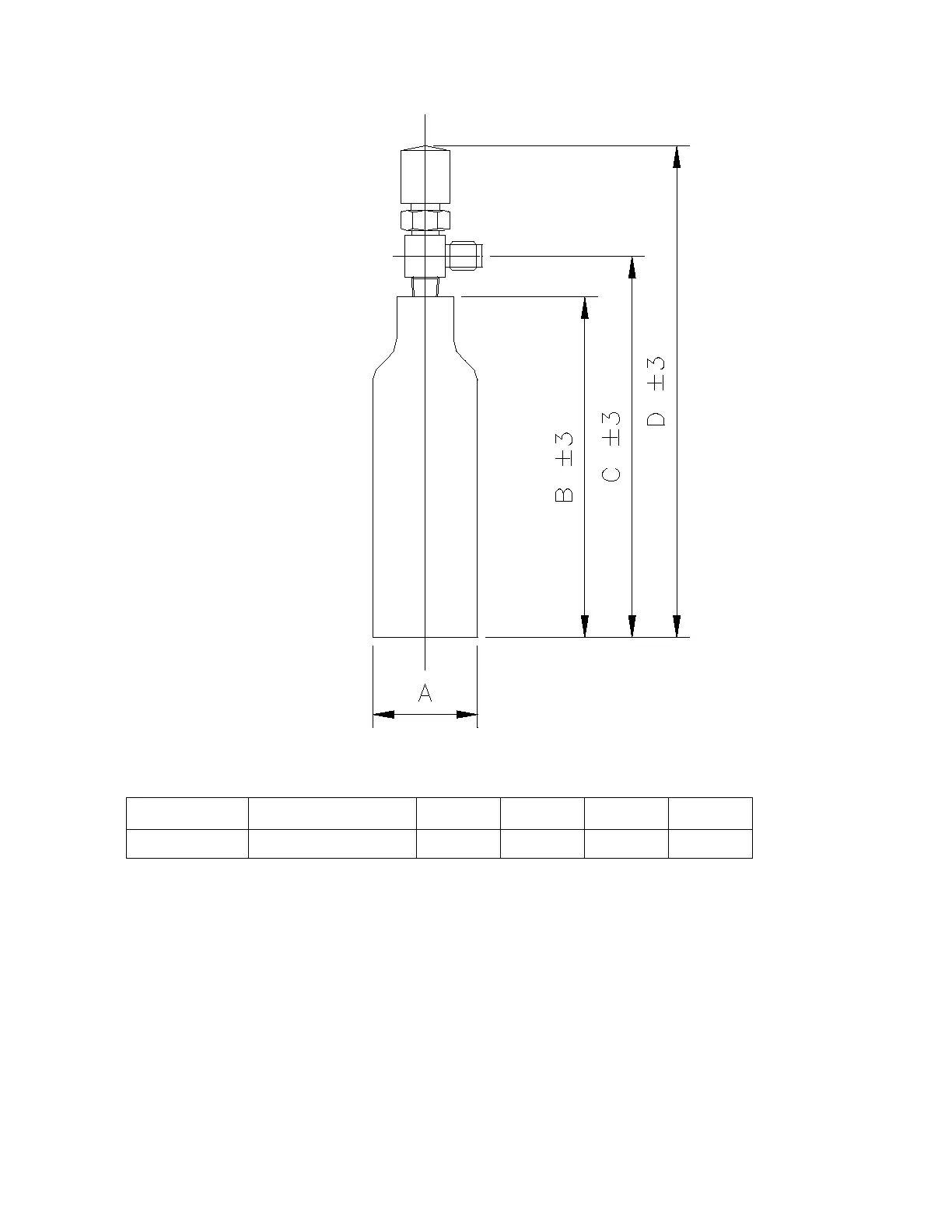

Figure 5: Xenon Difluoride Lecture Bottle (drawing not to scale).
Cylinder size
Maximum XeF
2
A B C D
0.3 L
0.6 kg
51 mm
253 mm
273 mm
325 mm
• Cylinder: Seamless Aluminum
• Valve: Stainless steel, angle diaphragm valve and ¼” VCR male outlet
