14.3 Presentation number

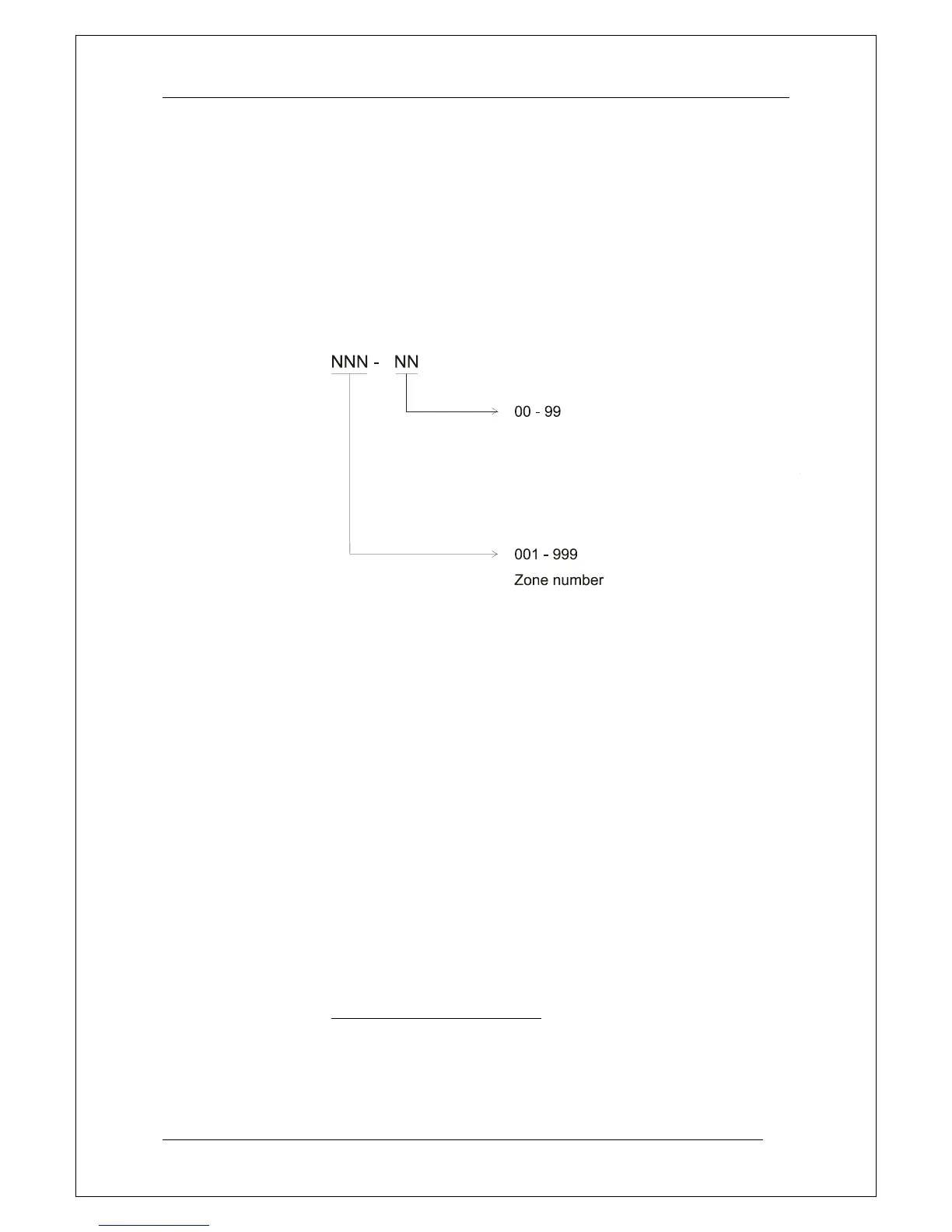

For each fire alarm point / input / zone, a presentation number,
NNN-NN, has to be programmed. The presentation number is shown
in the c.i.e. and ext. FBP display(s)
, to identify the point / zone
generating fire alarm. It is also used to disable / re-enable fire alarm
points / zones and as trigger conditions in control expressions to
activate the programmable outputs.
Together with the presentation number, a user definable 40 characters
text message (alarm text) can be displayed (if programmed).
NOTE 1! Zone numbers 001-999 can be used but more than 512
alarm points or zones per c.i.e. is a violation to the EN54-2 standard.
NOTE 2! When the function "Redundancy in distributed system" is
used, it is presented as 999-xx. The zone number 999 is indicating
that it is an alarm from a Control Unit and the address xx is indicating
from which CU (xx). xx could be an individual CU (xx=00-29) or
several CU:s (xx=99).
Also in the Alert Annunciation Units and Presentation Units ("Display
Units").
The presentation number (or a user definable 40 characters text message) can
also be shown in the old type of display units connected to the COM loops.
01 – 99 = The address within the zone.
00 = Only the zone number will be
displayed, e.g. used for conventional zone
line inputs.
