MEW01457 Rev: - Operating Instructions Fire alarm system EBL512, V2.7.x
15
4 Control Unit

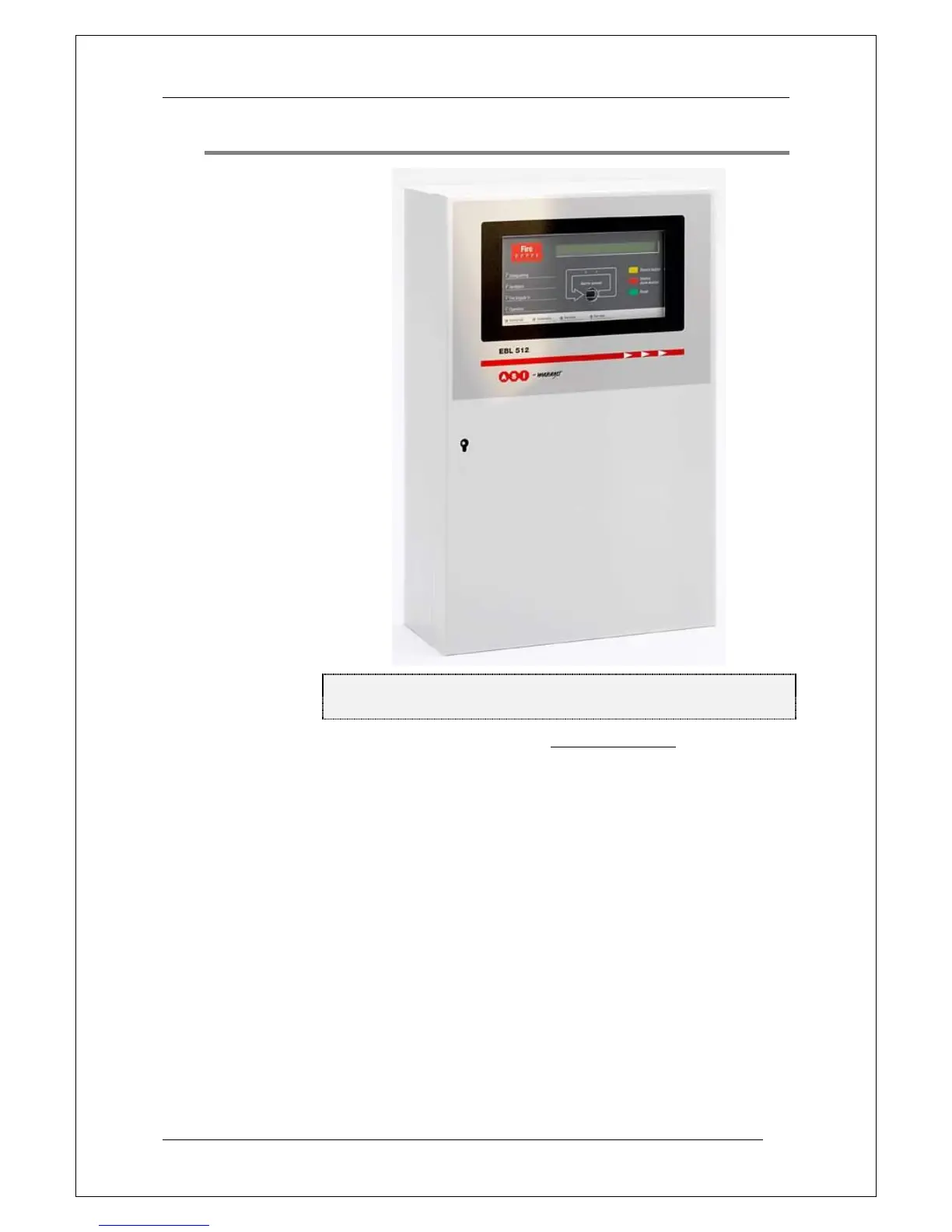

Figure 1. The EBL512 Control Unit (1548 / 1549). The look
might vary according to configuration, country, etc.
The control unit is housed in a grey metal cabinet. Depending on
country, convention, configuration, etc. the look, language and
functions might vary, as well as the max. number of loop units
(addresses).
The door has a Plexiglas ahead of the FBP part, see Figure 1. To open
the door (=access level 1), a key is required (supplied). When the
door is open, you fully see the front (the Fire Brigade Panel, FBP, and
Control Panel, CP), see Figure 2, page 16.
To open the inner door, for the purpose of maintenance or servicing, a
screwdriver is required.
