7.4 Input Wiring
7.4.4 LED-Equipped Limit Switch

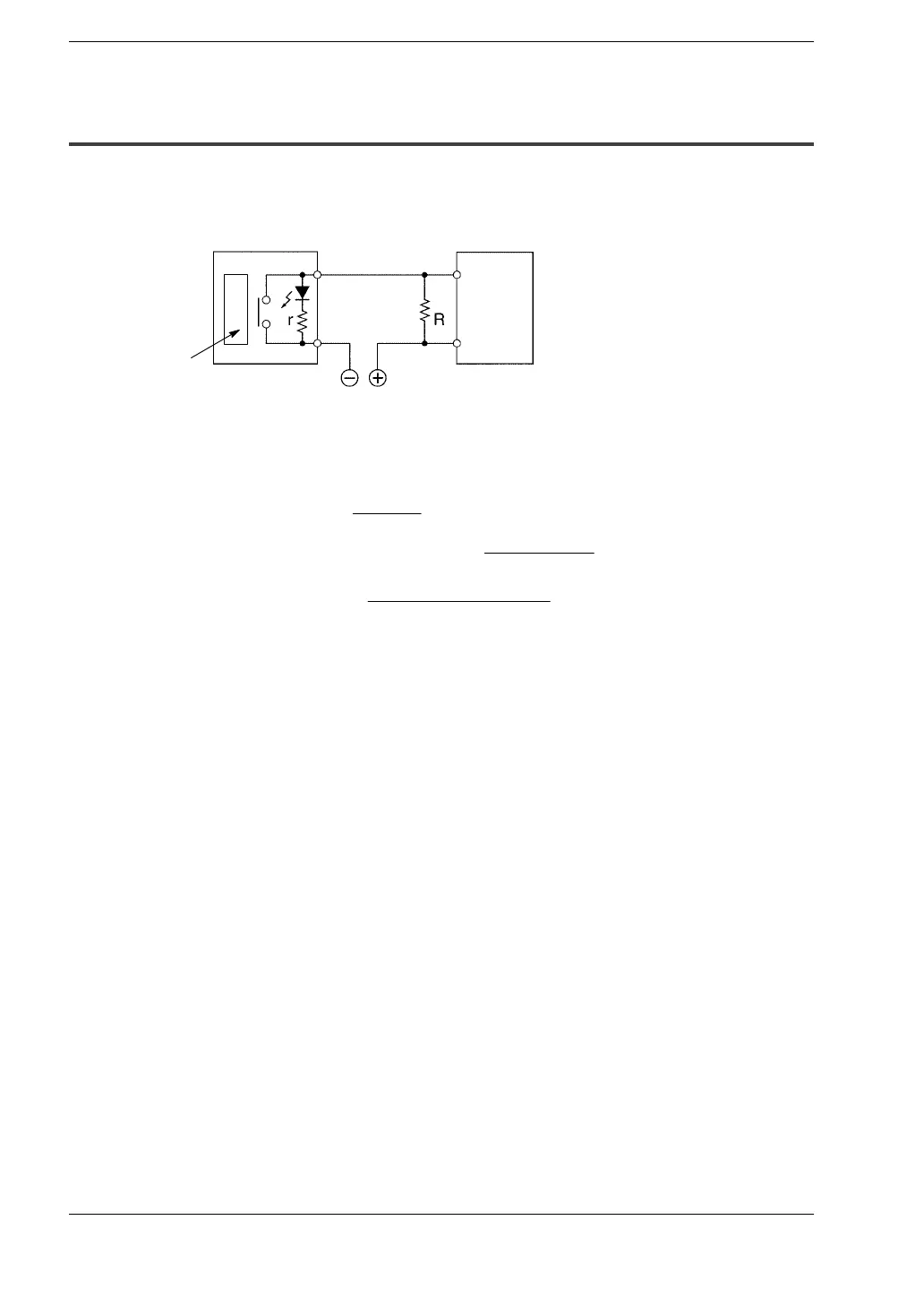

If the input of the FP0 does not turn OFF because of the leakage current from the
LED-equipped limit switch, the use of a bleeder resistor is recommended, as shown
below.
FP0
Internal circuit
r: Internal resistor of limit switch (kΩ)
R: Bleeder resistor (k
Ω)
The OFF voltage of the FP0 input is 2.4 V, therefore when the power supply voltage is 24 V,
select R so that
the current will be greater than I =
The resistance R of the bleeder resistor is: R < or =
The wattage W of the resistor is: W =
In the actual selection, use a value that is 3 to 5 times the value of W.
13.44
5.6 × I − 2.4
(kΩ)
24 - 2.4
r
(Power supply voltage)
2
R
LED-equipped
limit switch
COM
Input
terminal
Bleeder
resistor
