Panasonic FP0 - Mounting on DIN Rail

Dimensions FP0
13 − 6

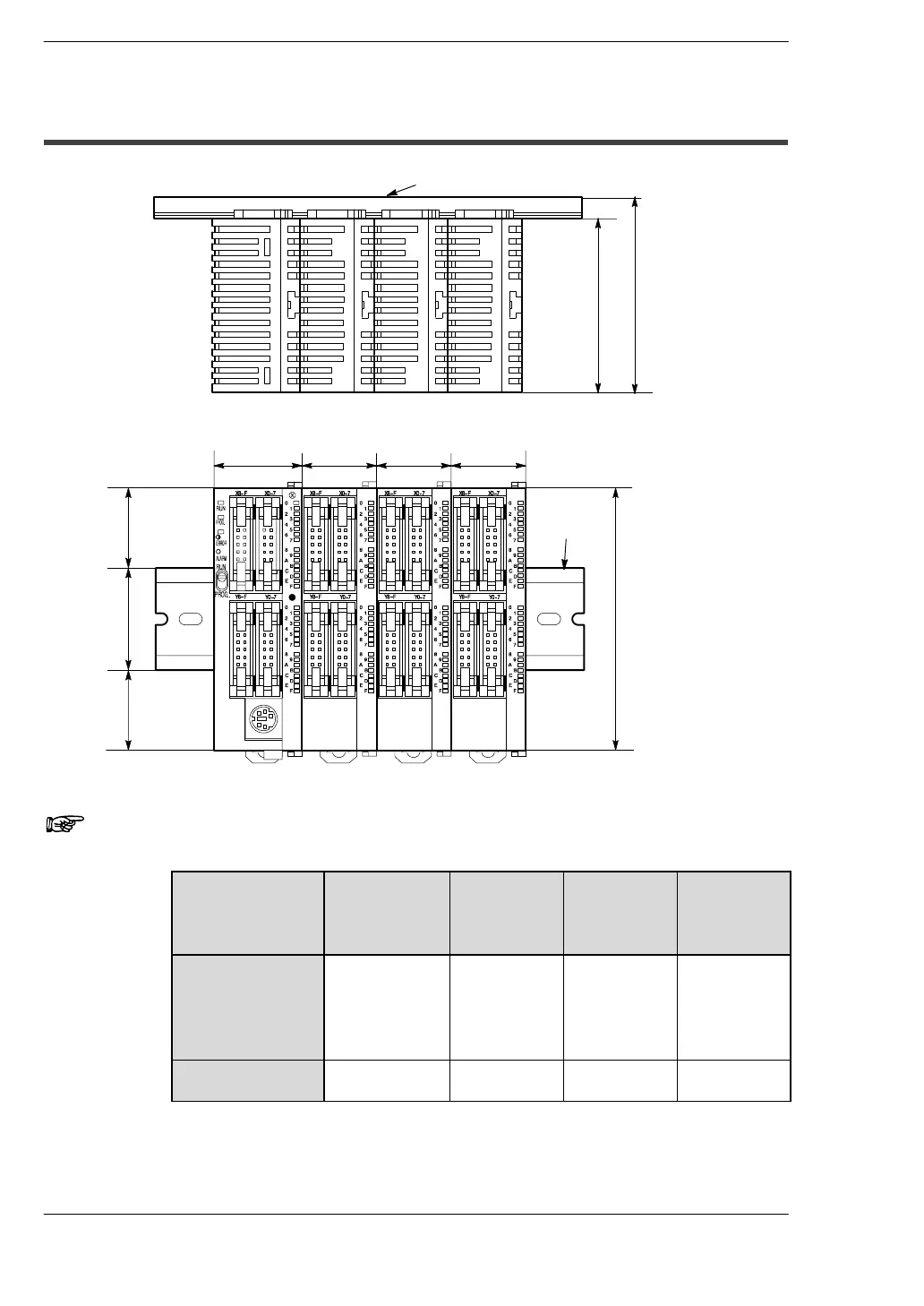

13.3 Mounting on DIN Rail
13.3 Mounting on DIN Rail
90.0/3.543
C
60.0/2.362
67.5/2.657
35.0/1.37827.5/1.083 27.5/1.083
DBA
DIN rail
DIN rail
(unit:
mm/in.)
Note
A + B +C + D dimensions (Unit: mm/in.)
Control unit type A
(Control unit
only)
A+B
(1 expansion
unit
connected)
A+B+C
(2 expansion
units
connected)
A+B+C+D
(3 expansion
units
connected)
C10RS, C10CRS,
C10RM, C10CRM,
C14RS, C14CRS,
C14RM, C14CRM,
C16T, C16CT,
C16P, C16CP
25/0.984 50/1.969 75/2.953 100/3.937
C32T, C32CT,
C32P, C32CP
30/1.181 55/2.165 80/3.150 105/4.134
