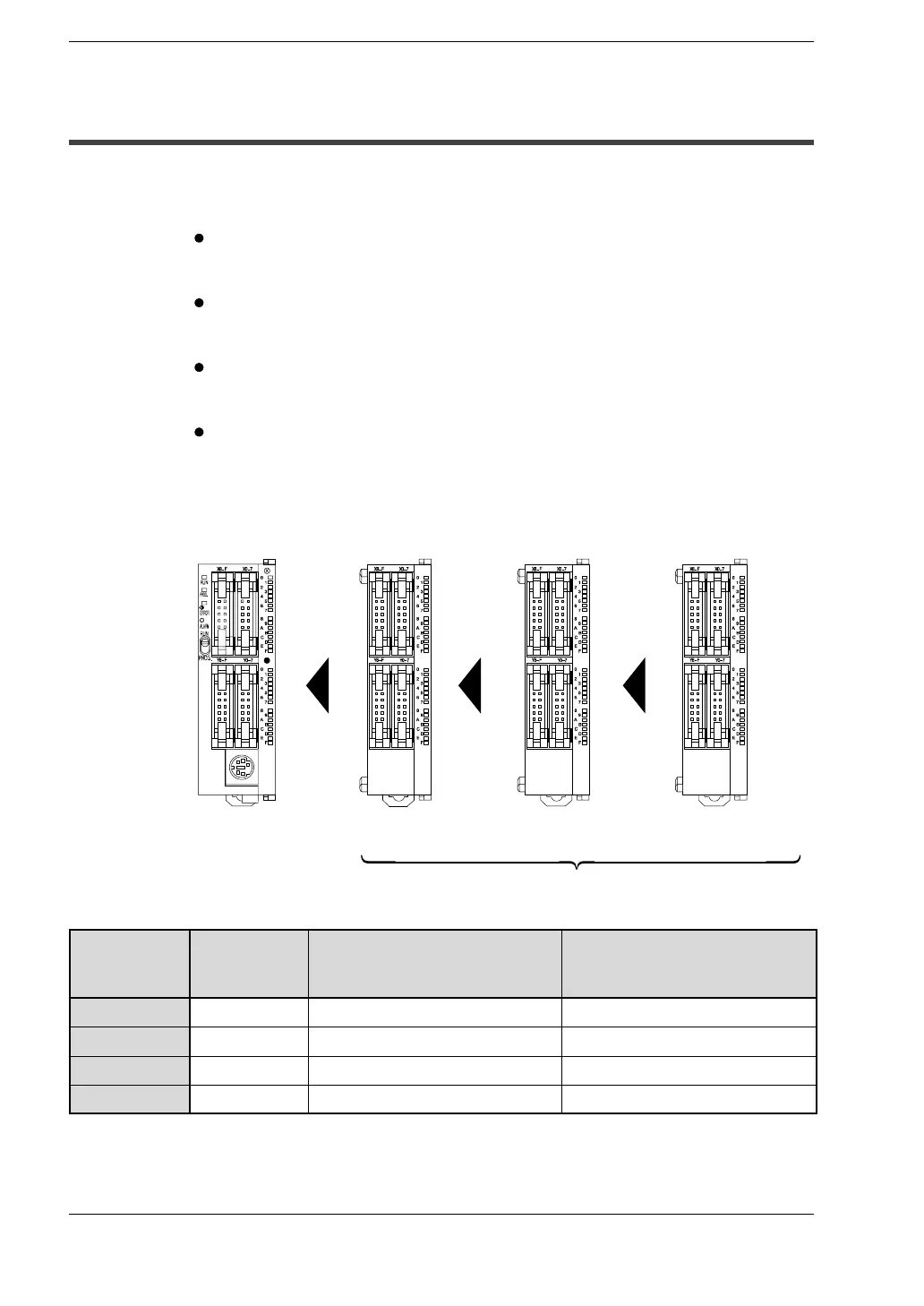

1.2 Expansion Possibilities
1.2 Expansion Possibilities
Be sure to check that the units are added according to the following restrictions:
A maximum of three expansion I/O units or analog I/O units
can be connected to one control unit.
There are no restrictions on the combinations of the kind
control units and expansion units.
A combination of relay output types and transistor output
types is also possible.
The expansion unit can be attached directly to the control unit
easily. Special expansion cables, backplanes, and so forth,
are unnecessary as the expansion unit employs a stacking
system that uses expansion connector and expansion hooks
on the surface of the unit itself.
Control unit
First
expansion unit
Second
expansion unit
Third
expansion unit
Maximum possible expansion is with a total of 3 units
Contollable I/O Points
Type of
control unit
Control unit
only
When the expansion unit is
the same output type as the
control unit
When the expansion unit is
a transistor output type
C10R 10 points max. 58 points max. 106 points
C14R 14 points max. 62 points max. 110 points
C16T/C16P 16 points max. 112 points max. 112 points
C32/T32 32 points max. 128 points max. 128 points
