Panasonic FP0 User Manual

WiringFP0
7 − 13

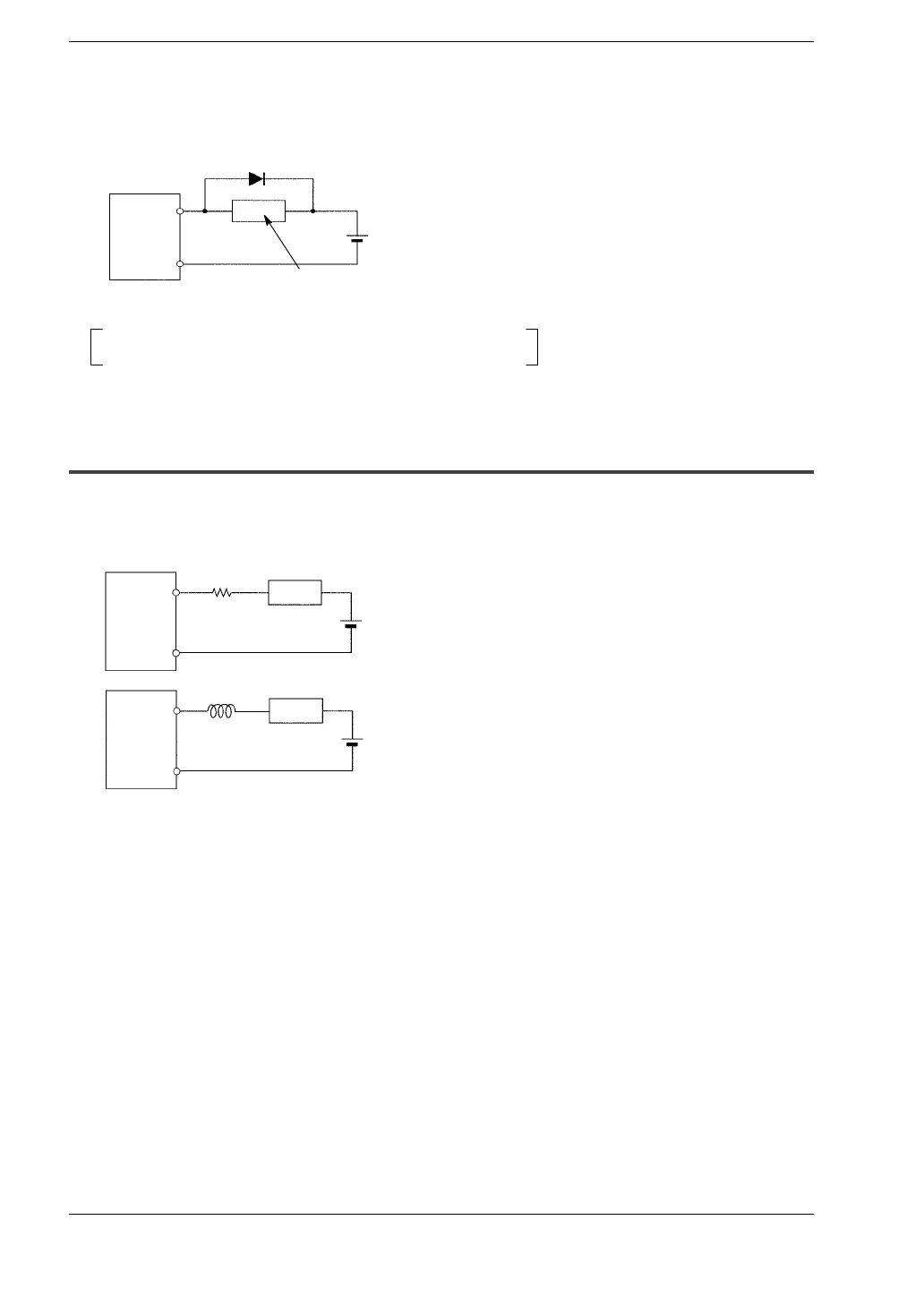

7.5 Output Wiring
When using a DC inductive load
FP0
DC inductive load
Reverse voltage (V
R
): 3 times the load voltage
Average rectified forward current (I
0
): Load current or more
(*) Diode:
COM
Output
terminal
Diode (*)
7.5.2 Precautions for Using Capacitive Loads
When connecting loads with large in-rush currents, to minimize their effect, connect a
protection circuit as shown below.
Inductor
FP0
FP0
COM
Output
terminal
Resistor
COM
Output
terminal
Load
Load

Panasonic FP0 Specifications

General

Model	FP0
Communication Ports	RS232C, RS485
Power Supply	24V DC
Operating Temperature	0°C to 55°C
Type	Programmable Logic Controller (PLC)
I/O Points	16 to 128
