4.8 Judging Errors Address Displays
4.8 Judging Errors Address Displays

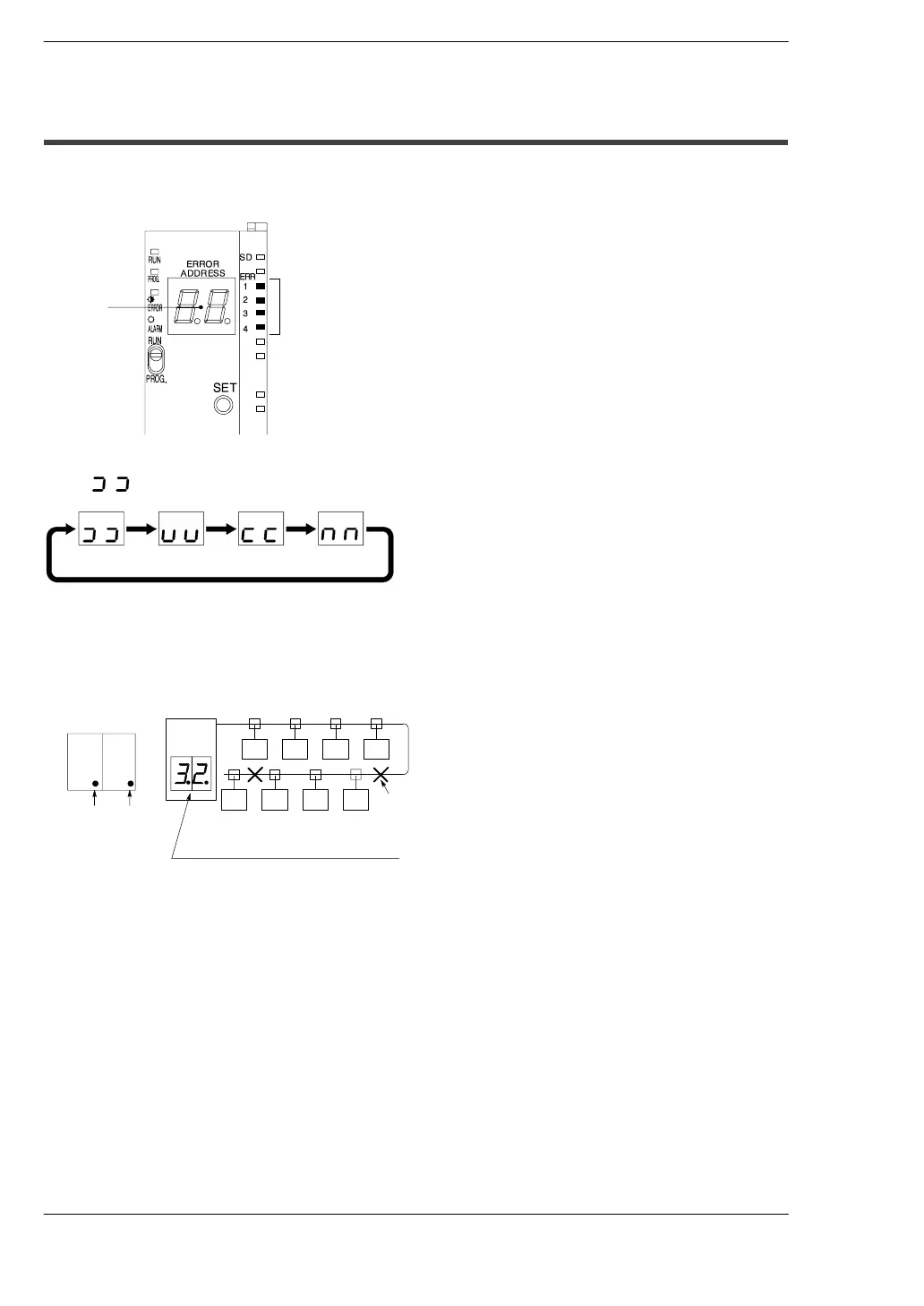

The transmission line is monitored at all times, and if an error occurs, the address at
which the error occurred is displayed as a hexadecimal value.
ERROR
ADDRESS
display
ERROR indicator
During normal transmission:
The “
” shaped charactor rotates in the clockwise direction.
If an error occurs:
The address is displayed. In case faults occur at several locations, the smallest error
address is displayed and the decimal points light up simultaneously.
10 20 30 40
80 70 60 50
S−LINK
control unit
<Multiple broken wires>
32(hexadecimal) = 50 (decimal)
Decimal points
light up
Broken wire
