Panasonic FP0 User Manual

Dimensions FP0
13 − 8

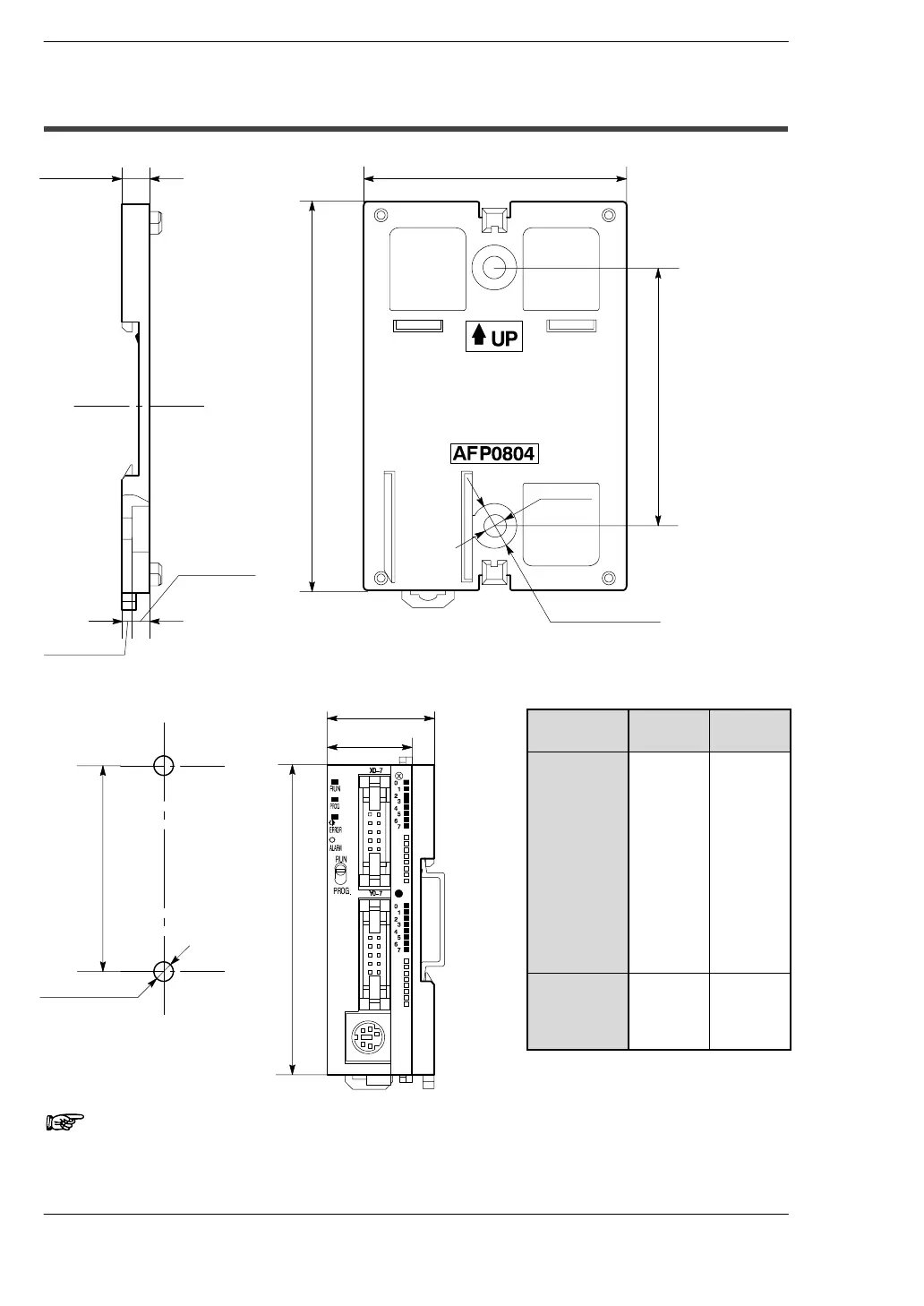

13.5 FP0 Flat Type Mounting Plate
13.5 FP0 Flat Type Mounting Plate
90.0/3.543
60.0/2.362
60.0/2.362
6.2/2.441
dir. 5.0/
0.197
dir. 10.0/0.394
2.2/0.087
4.0/0.157
(unit: mm/in.)
Unit type
A
(mm/in.)
B
(mm/in.)
C10RS
C10CRS
C10RM
C10CRM
C14RS
C14CRS
C14RM
C14CRM
C16T
C16CT
C16P
C16CP
31.2/1.23 25/0.98
C32T
C32CT
C32P
C32CP
36.2/1.43 30/1.18
Note
Cannot be used if system is expanded
A
90.0/3.543
60.0/2.362
dir. 5.0/0.197
Mounting hole
dimensions
Dimensions when mounted on DIN rail
B
(unit: mm/in.)

Panasonic FP0 Specifications

General

Model	FP0
Communication Ports	RS232C, RS485
Power Supply	24V DC
Operating Temperature	0°C to 55°C
Type	Programmable Logic Controller (PLC)
I/O Points	16 to 128
