Panasonic FP0 User Manual

DimensionsFP0
13 − 5

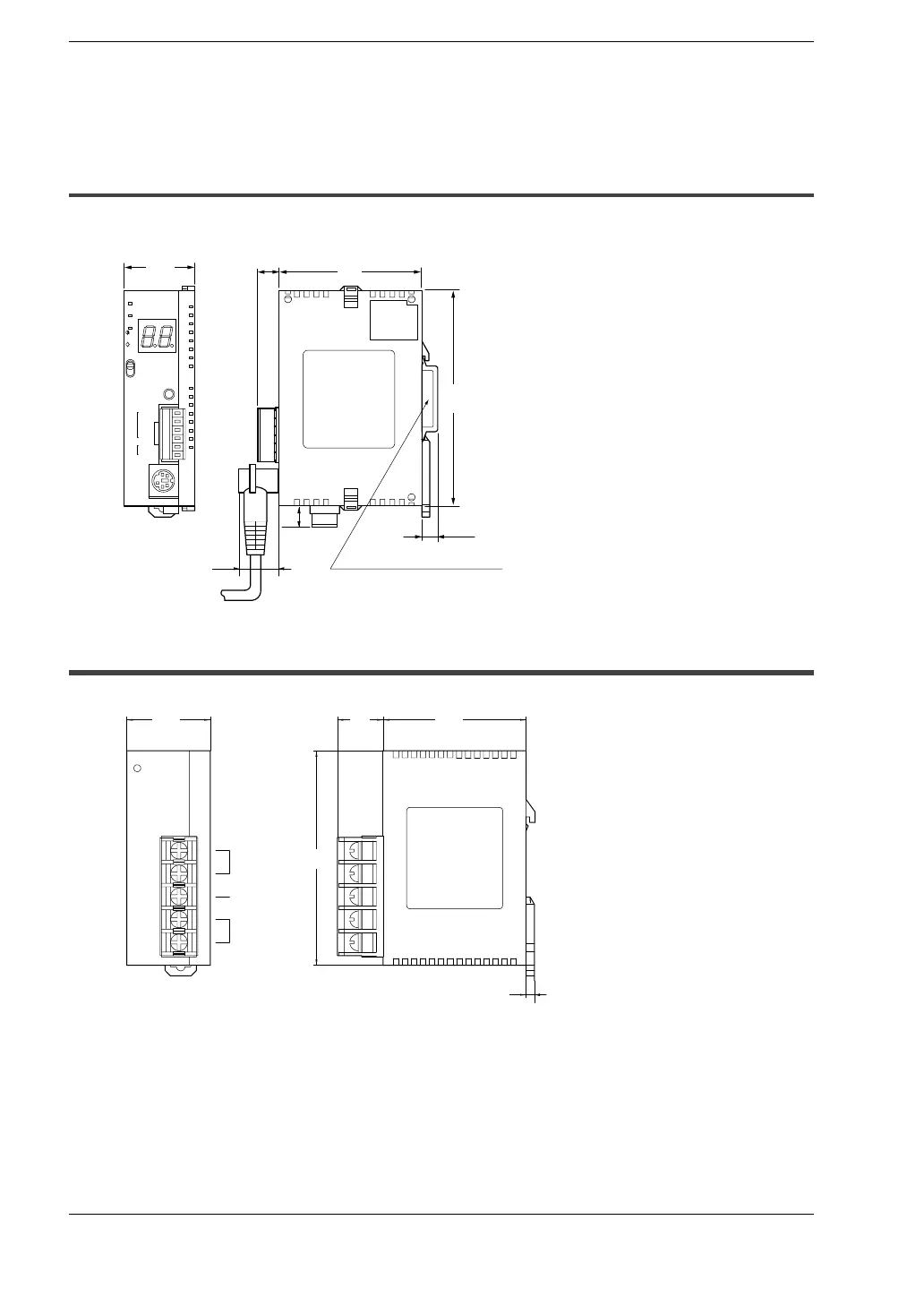

13.2 FP0 Power Supply Unit
13.1.5 FP0 S−LINK Control Unit
(unit: mm/in.)
PROG.
RUN
ALARM
ERROR
PROG
RUN
24V
0V
D
G
24V
0V
IN
SET
ERROR
ADDRESS
SD
ERR
1
2
3
4
FP0 −SL1
EXPANSION
CONNECTOR
30.0
1.181
60.0
2.362
(10)
(.394)
(7.5)
(.295)
(9)
(.354)
(17)
(.669)
DIN standard rail
(DIN EN50022 35 mm 1.378 inch width)
attachment gap
90.0
3.543
13.2 FP0 Power Supply Unit
(unit: mm/in.)
Input
terminal
Connection
terminal
Output
terminal
60.0
2.362
35.0
1.378
90.0
3.543
3.5
.138
19.2
.756

Panasonic FP0 Specifications

General

Model	FP0
Communication Ports	RS232C, RS485
Power Supply	24V DC
Operating Temperature	0°C to 55°C
Type	Programmable Logic Controller (PLC)
I/O Points	16 to 128
