Panasonic FP0 - Page 286

14-44

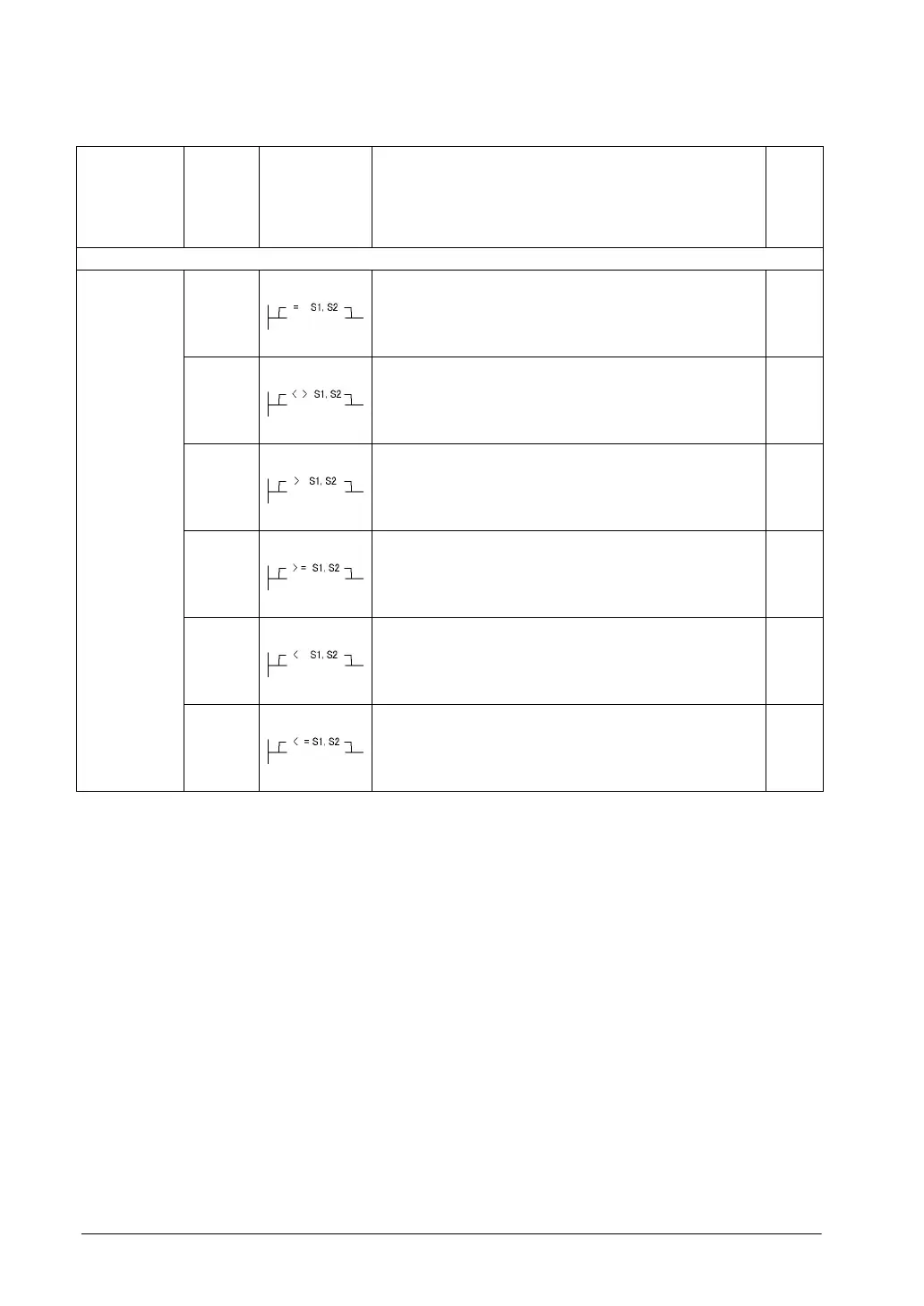

Name Boolean Symbol Description Steps
Data compare instructions
ST= Begins a logic operation by comparing two 16-bit data in
the comparative condition “S1=S2”.
5
ST<> Begins a logic operation by comparing two 16-bit data in
the comparative condition “S1<S2” or “S1>S2”.
5
ST> Begins a logic operation by comparing two 16-bit data in
the comparative condition “S1>S2”.
5
ST>= Begins a logic operation by comparing two 16-bit data in
the comparative condition “S1>S2” or “S1=S2”.
5
ST< Begins a logic operation by comparing two 16-bit data in
the comparative condition “S1<S2”.
5
16-bit data
compare
(Start)
ST<=
Begins a logic operation by comparing two 16-bit data in
the comparative condition “S1<S2” or “S1=S2”.
5
