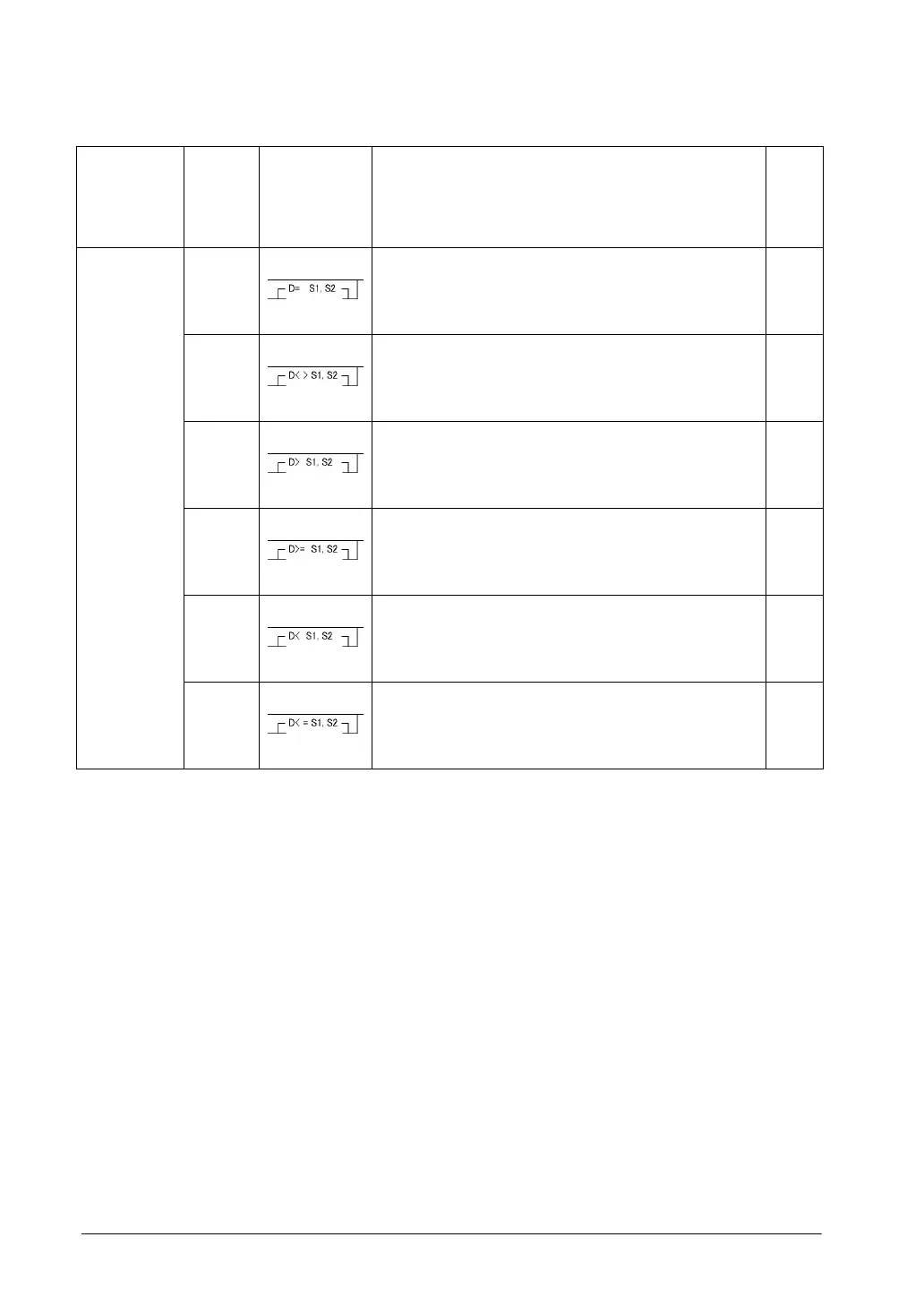

Name Boolean Symbol Description Steps
ORD= Connects a Form A (normally open) contact in parallel by
comparing two 32-bit data in the comparative condition
“(S1+1, S1)=(S2+1, S2)”.
9
ORD<> Connects a Form A (normally open) contact in parallel by
comparing two 32-bit data in the comparative condition
“(S1+1, S1)<(S2+1, S2)” or “(S1+1, S1)>(S2+1, S2)”.
9
ORD> Connects a Form A (normally open) contact in parallel by
comparing two 32-bit data in the comparative condition
“(S1+1, S1)>(S2+1, S2)”.
9
ORD>= Connects a Form A (normally open) contact in parallel by
comparing two 32-bit data in the comparative condition
“(S1+1, S1)>(S2+1, S2)” or “(S1+1, S1)=(S2+1, S2)”.
9
ORD< Connects a Form A (normally open) contact in parallel by
comparing two 32-bit data in the comparative condition
“(S1+1, S1)<(S2+1, S2)”.
9
32-bit data
compare
(OR)
ORD<=
Connects a Form A (normally open) contact in parallel by
comparing two 32-bit data in the comparative condition
“(S1+1, S1)<(S2+1, S2)” or “(S1+1, S1)=(S2+1, S2)”.
9
