Panasonic FP0 - Page 61

Expansion I/O UnitsFP0
3 − 9

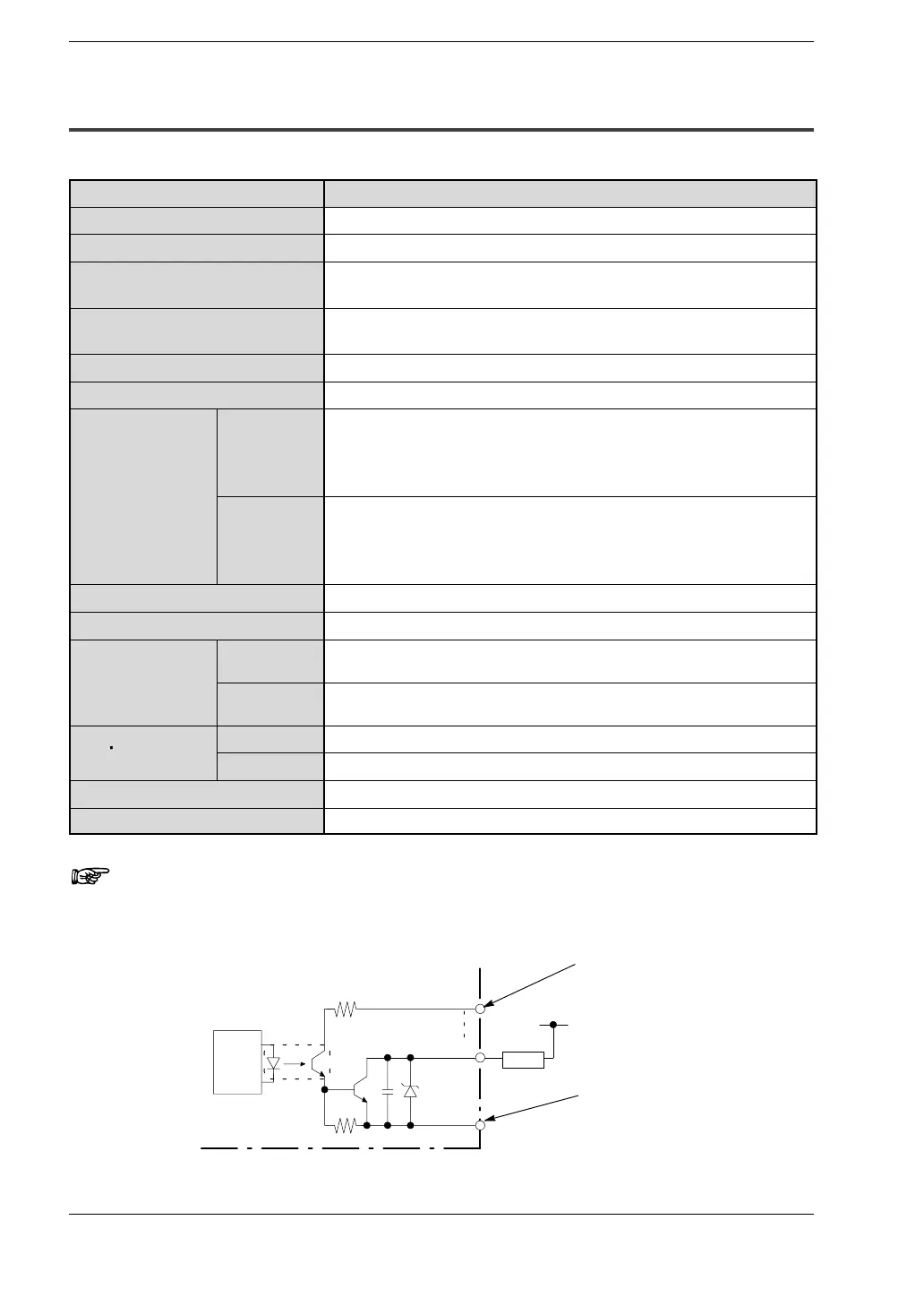

3.2 Specifications
3.2.3.2 Transistor Output Type
FP0 transistor output types: E16T, E16P, E32T, E32P, E8YT, E8YP, E16YT, E16YP
Item Description
Insulation method optical coupler
Output type open collector
Rated load voltage NPN open collector type: 5 to 24 V DC (* Note)
PNP open collector type: 24 V DC
Operating load voltage
range
NPN open collector type: 4.75 to 26.4 V DC
PNP open collector type: 21.6 to 26.4 V DC
Max. load current 0.1 A
Max. surge current 0.3 A
Output points
per common
E16T,
E16P,
E8YT,
E8YP
8 points/common
E32T,
E32P,
E16YT,
E16YP
16 points/common
OFF state leakage current 100 µA or less
ON state voltage drop 1.5 V or less
External power
su
pp
l
y
for
Voltage 21.6 to 26.4 V DC
supply
for
driving internal
circuit
Current Y0 and Y1: 5 mA/1 point, except Y0 and Y1: 3 mA/1 point
Response time
OFF → ON 1 ms or less (Y0 and Y1 only: 50 µs or less)
p
ON → OFF 1 ms or less (Y0 and Y1 only: 50 µs or less)
Surge absorber Zener diode
Operating mode indicator LED
Note
For NPN open collector type, able to be used with different
voltages for the load voltage and the external power supply for
driving the internal circuit.
(+)
(−)
Yn
Load
Internal
circuit
External power supply for
driving internal circuit
(21.6 V to 26.4 V DC)
Rated load voltage
(5 V to 24 V DC)
Ground for load voltage and
for external power supply for
driving internal circuit
