D-32 Programming 590 Series DC Digital Drive

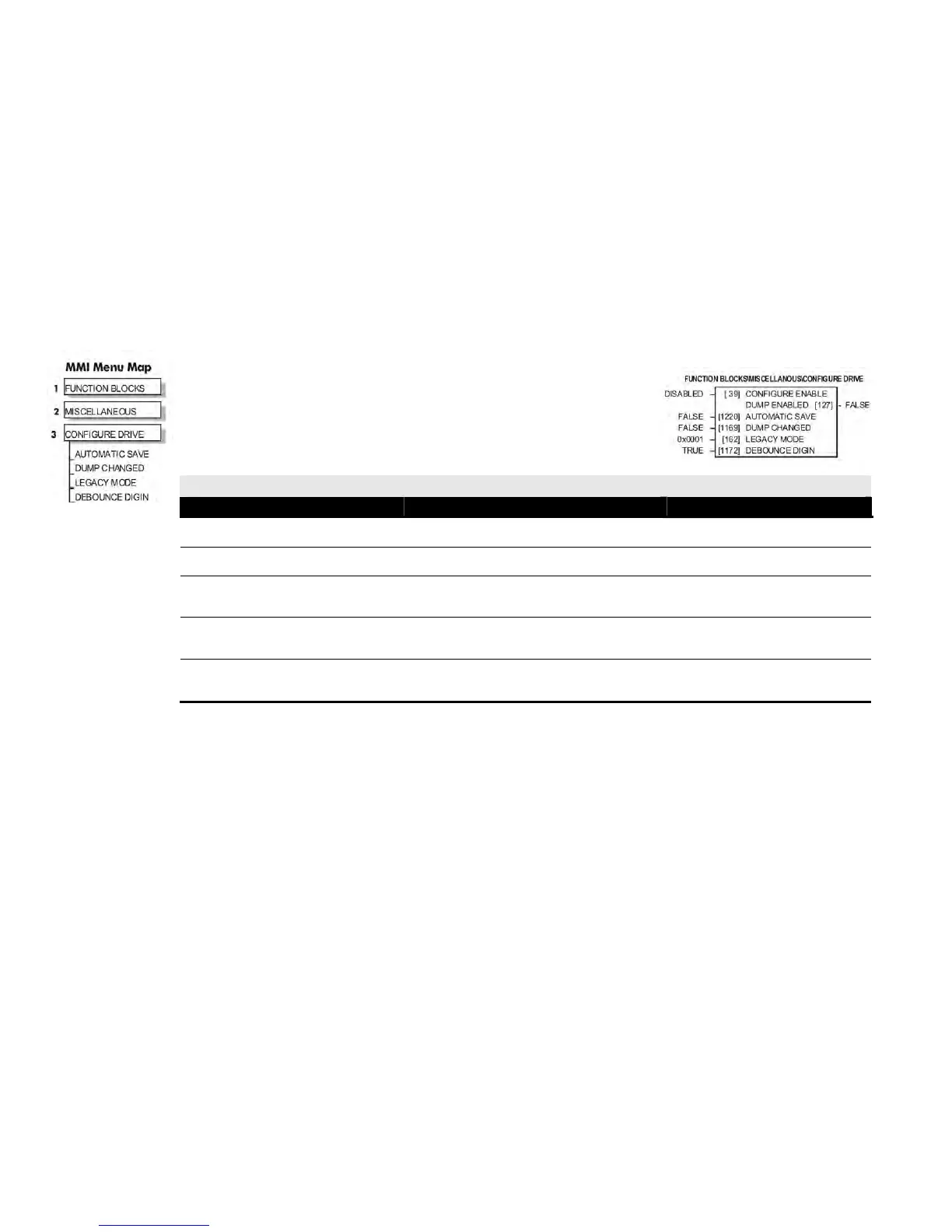

CONFIGURE DRIVE
This block contains many of the parameters required for configuring the drive.
NOTE The CONFIGURE DRIVE menu on the MMI contains a different set of
parameters, for set-up using the keypad.
CONFIGURE ENABLE: The operation of the Block Diagram is suspended and all Keypad LEDs will
flash whilst CONFIGURE ENABLE = TRUE.
NOTE The CONFIGURE ENABLE parameter is also available in the following MMI
menus for ease of use: CALIBRATION, CONFIGURE I/O
CONFIGURE DRIVE
Parameter Tag Range
CONFIGURE ENABLE 39 FALSE / TRUE
Selects Operating Mode (FALSE) or Configuration Mode (TRUE). Refer to “Modifying a Block Diagram”, page D-3.
AUTOMATIC SAVE 1220 FALSE/TRUE
When TRUE, changes made to parameters using the operator station are automatically saved to the drive’s non-volatile memory.
DUMP CHANGED 1169 FALSE /TRUE
This parameter is used in conjunction with DUMP MMI (TX) and DUMP BLOCKS. When TRUE, only those parameters that have been modified
from their default value are included in the dump.
LEGACY MODE 162 0x0000 to 0xFFFF
When non-zero the drive emulates some behaviour of earlier firmware versions of the 590, (firmware version 4.x) In particular this behaviour affects
linking of parameters in the function block diagram (refer to "Compatibility with Earlier Versions of Firmware". page D-9).
DEBO
UNCE DIGIN 1172 FALSE/TRUE
When TRUE the drive adds a 3ms debounce filter to the digital inputs. This affects terminals C3 to C8, B8 and B9. The hardware connection between
terminal B9, (COAST STOP) and the control of the external contactor is not affected.
