Perfecta 115 TS - Clutch-And-Brake Assembly; System Design

Service Manual 2 Knife Drive
2.2 Clutch-and-brake assembly
1/09 PERFECTA 115 / 132 / 168 / 225 – TS 10
PERFECTA Schneidemaschinenwerk GmbH  D-02625 Bautzen  Schäfferstr. 44  Tel.: +49-3591-556-131 to -133  Fax: +49 3591-556-139
2.2 Clutch-and-brake assembly
2.2.1 System design
Armature disk 3 provided with brake lining 1 or clutch lining 2, respectively, is axially
movable on a spline bush 4. Springs 5 force it against brake ring 6. This will safely
brake the machine.
When the clutch is energized armature disk 3 will be attracted by the magnetic field of
coil body 7 and pressed against friction ring 8. This will engage the clutch.
Please refer to Figure 3.

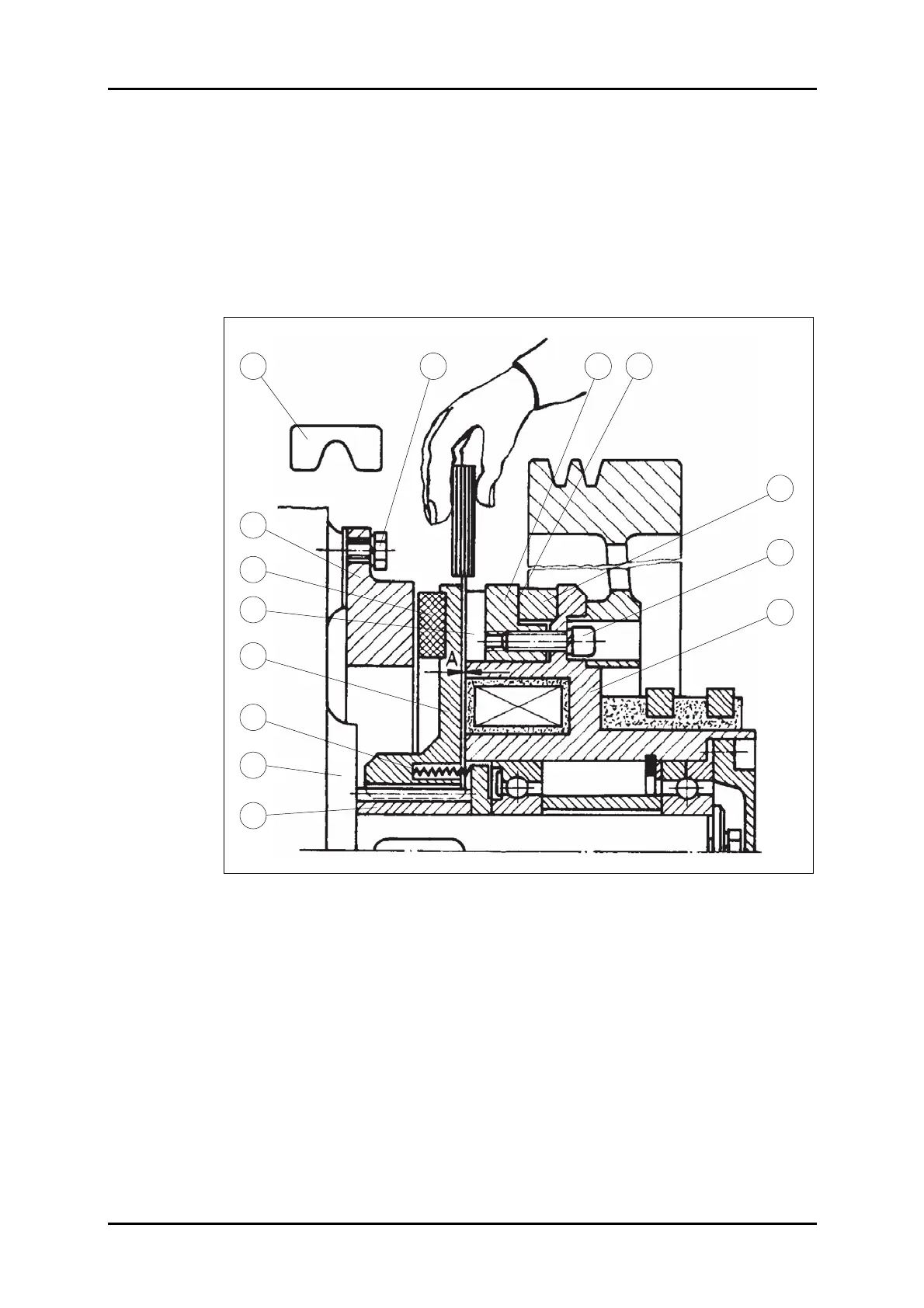

Figure 3: Clutch-and-brake assembly.
7
14
12 8
11
6
1
2
3
5
4
10
9
13
