11.2 Computer control
The machine is controlled by a multiprocessor system consisting of the control module,
the two processors in the safety module and of the PC responsible for visualization.
The safety module and the control module have a serial interconnection. The visuali-
zation PC and the control module are also connected with each other by a serial data
cable.

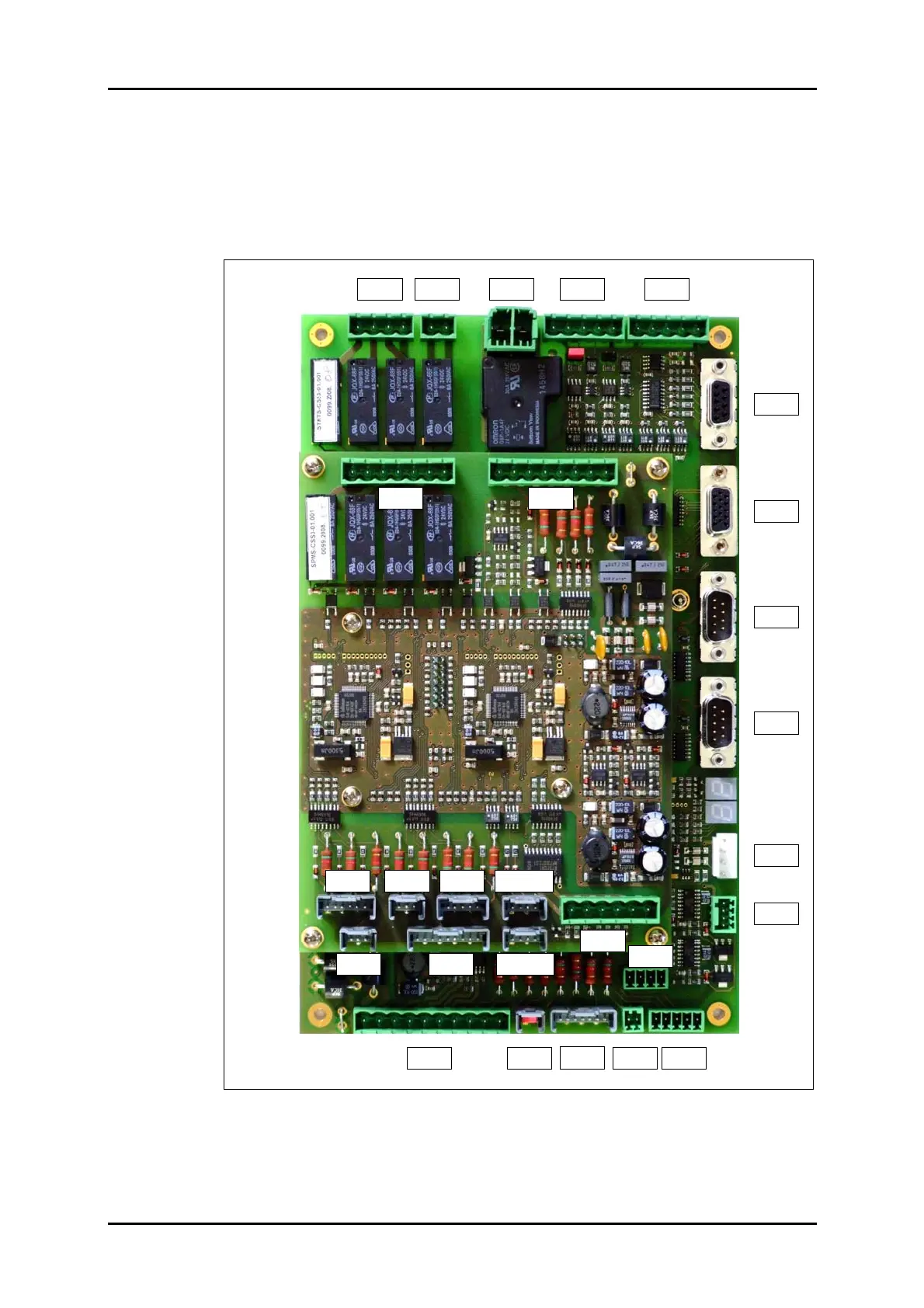

Figure 48: Control module/safety module connector assignments.
X831
X809
X810
X830
X814
X815
X511
X805
X808 X807
X804
X806X803
X502 X504 X506.1
X505X503X501 X506.2
X510 X512
X812 X811X801X802X813
