12. CEDES Safe 400 Light Guard
12.1 Light guard for P115/132
A CEDES light guard consist of a transmitter and a receiver unit. Both the transmitter
and the receiver strip have a pluggable connection cable each. Make sure to choose
the correct colour (blue or white) of the transmitter and the receiver connectors before
plugging them into the CEDES Safe CIS 3 controller.
At their sides, the light guard strips have profile grooves for easy installation in their
holders. With the aid of a fixing screw and a locking screw, the light guard strips can
be attached to their holders and aligned.
1 Light guard module 1
2 Light guard module 2
3 Status indicator LED (red – light guard is interrupted/green – light guard is free)
4 CEDES Safe CIS 3 light guard controller

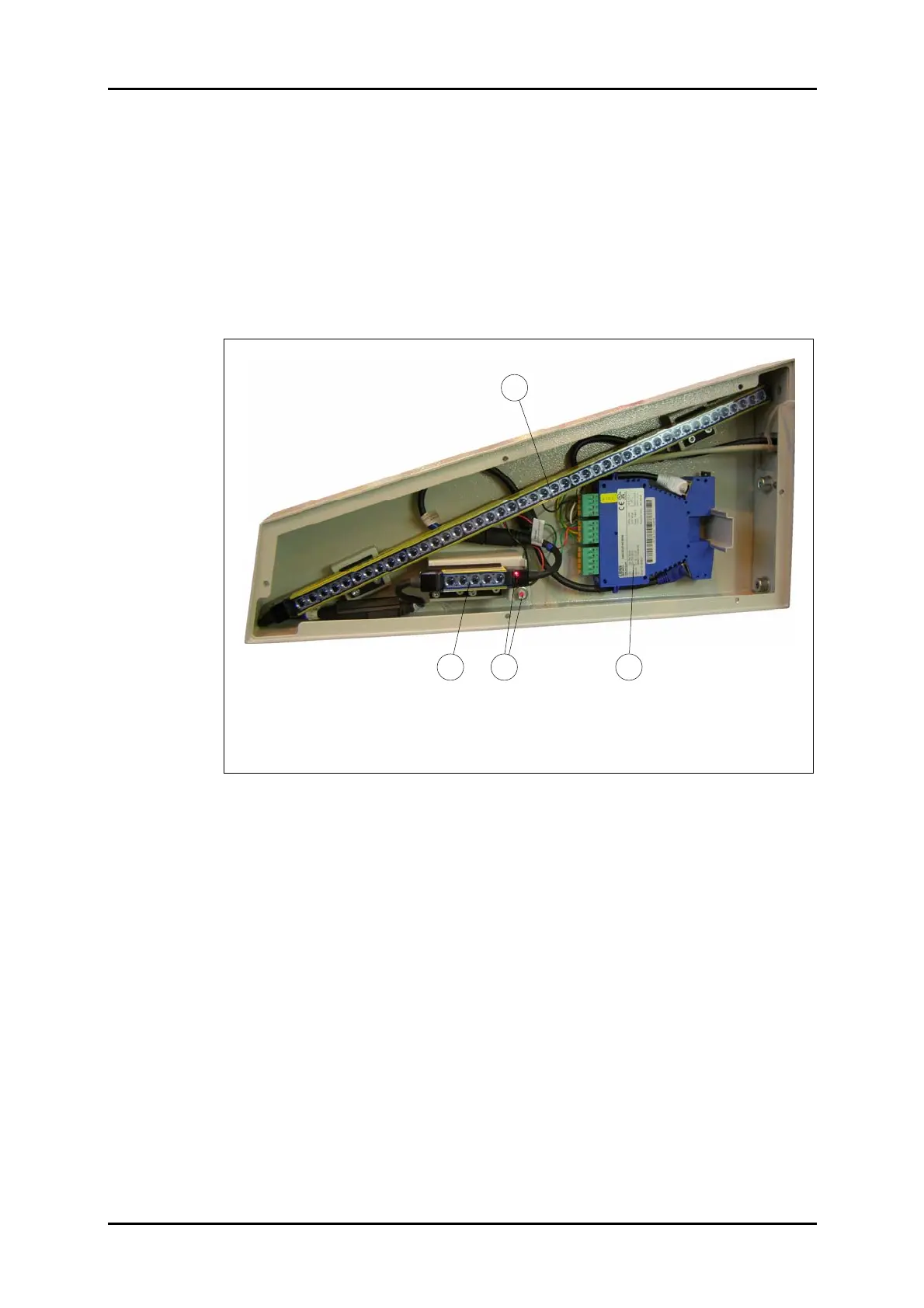

Figure 57: Light guard for P115/132 (receiver) – left-hand side.
4
1
32
