Service Manual 3 Clamping System
3.1 Gap between knife back and clamp edge
1/09 PERFECTA 115 / 132 / 168 / 225 – TS 15
PERFECTA Schneidemaschinenwerk GmbH D-02625 Bautzen Schäfferstr. 44 Tel.: +49-3591-556-131 to -133 Fax: +49 3591-556-139
3. Clamping System
In addition to gap s between the knife back and the clamp edge, the play of the clamp in
its guideways in decisive for obtaining a good-quality and precise cut.
3.1 Gap between knife back and clamp edge
It is important that gap s is kept at its prescribed value to bring the clamping pressure as
close to the cutting line as possible. Gap s shown in Figure 7 should be be 0.2 + 0.1 mm.

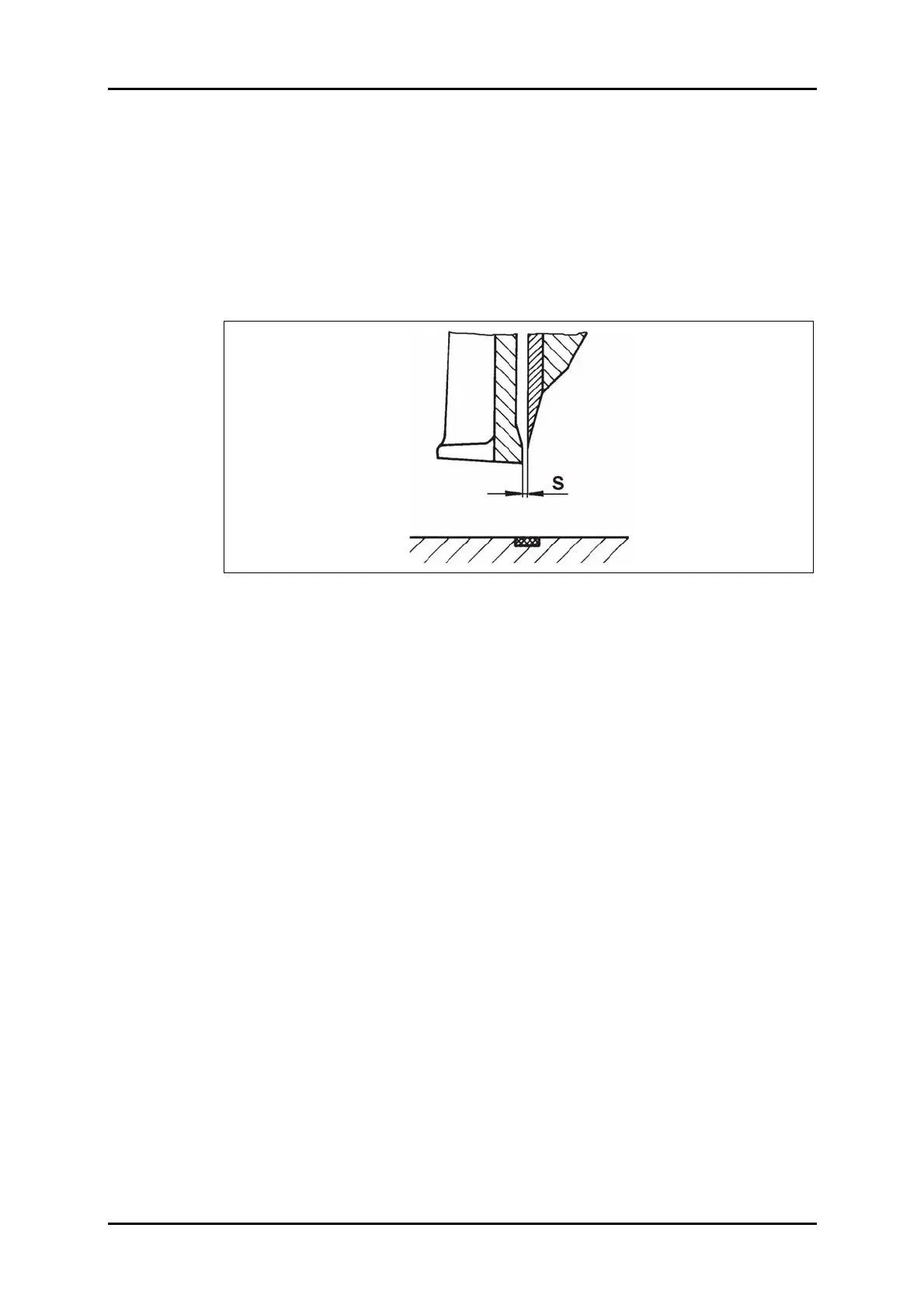

Figure 7: Gap between knife back and clamp edge.
