3.3 Clamp-to-cutting table height and parallelism
The clamp is factory set in parallel with the cutting table surface.
You can check it by placing a paper strip each on the left and right and bring the
clamp down for preclaming. If any correction should be necessary proceed as follows:
76/92 cm machines

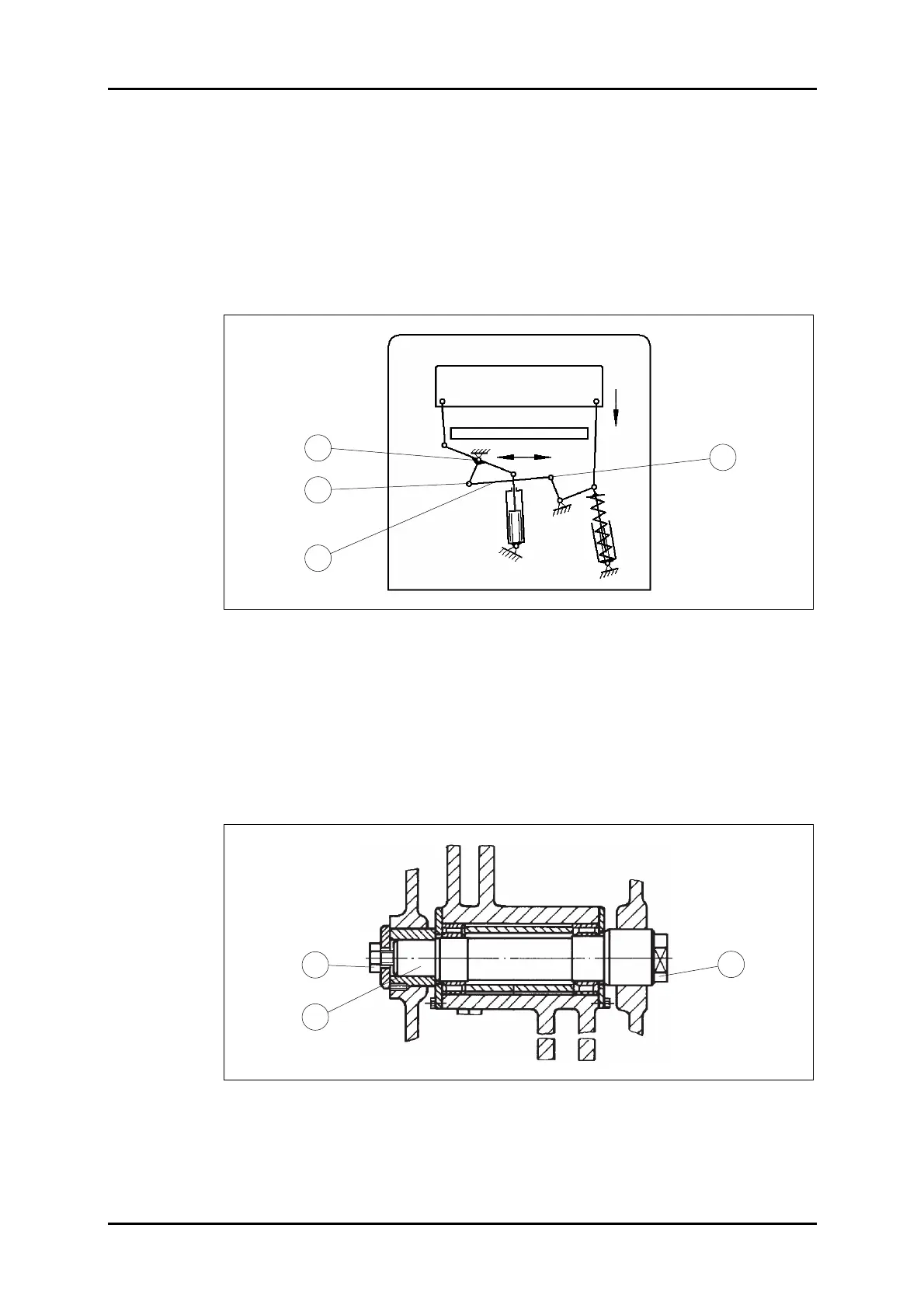

Figure 11 shows the clamping principle of the 76 and 92 cm machines.
Figure 11: PERFECTA 76/92 clamping principle.
Height adjustment:
- Remove the hydraulic front cover from under the table.
- Slacken locking screw 1.
- Rotate clamp lever pivot 2 to adjust the clamp stroke height (125 mm) on surface 3.
- After successful adjustment, re-tighten locking screw 1.
Figure 12: Height adjustment (PERFECTA 76/92).
4
2
5
3
1
3
2
