3.3 Clamp-to-cutting table height and parallelism
1/09 PERFECTA 115 / 132 / 168 / 225 – TS 21
PERFECTA Schneidemaschinenwerk GmbH  D-02625 Bautzen  Schäfferstr. 44  Tel.: +49-3591-556-131 to -133  Fax: +49 3591-556-139
Parallelism adjustment:
- Remove the hydraulic front cover panel from under the table.
- Slacken locking screws 1 in plunger rod eyes 2 and 3.
- Rotate plunger rod 4 as follows:
• Increasing the distance between the plunger rod eyes = the clamp will be
brought lower on the right.
• Decreasing the distance between the plunger rod eyes = the clamp will be lifted
on the right.
- After you have checked parallelism using paper strips, re-tighten locking screw 1
and return the hydraulics cover panel.

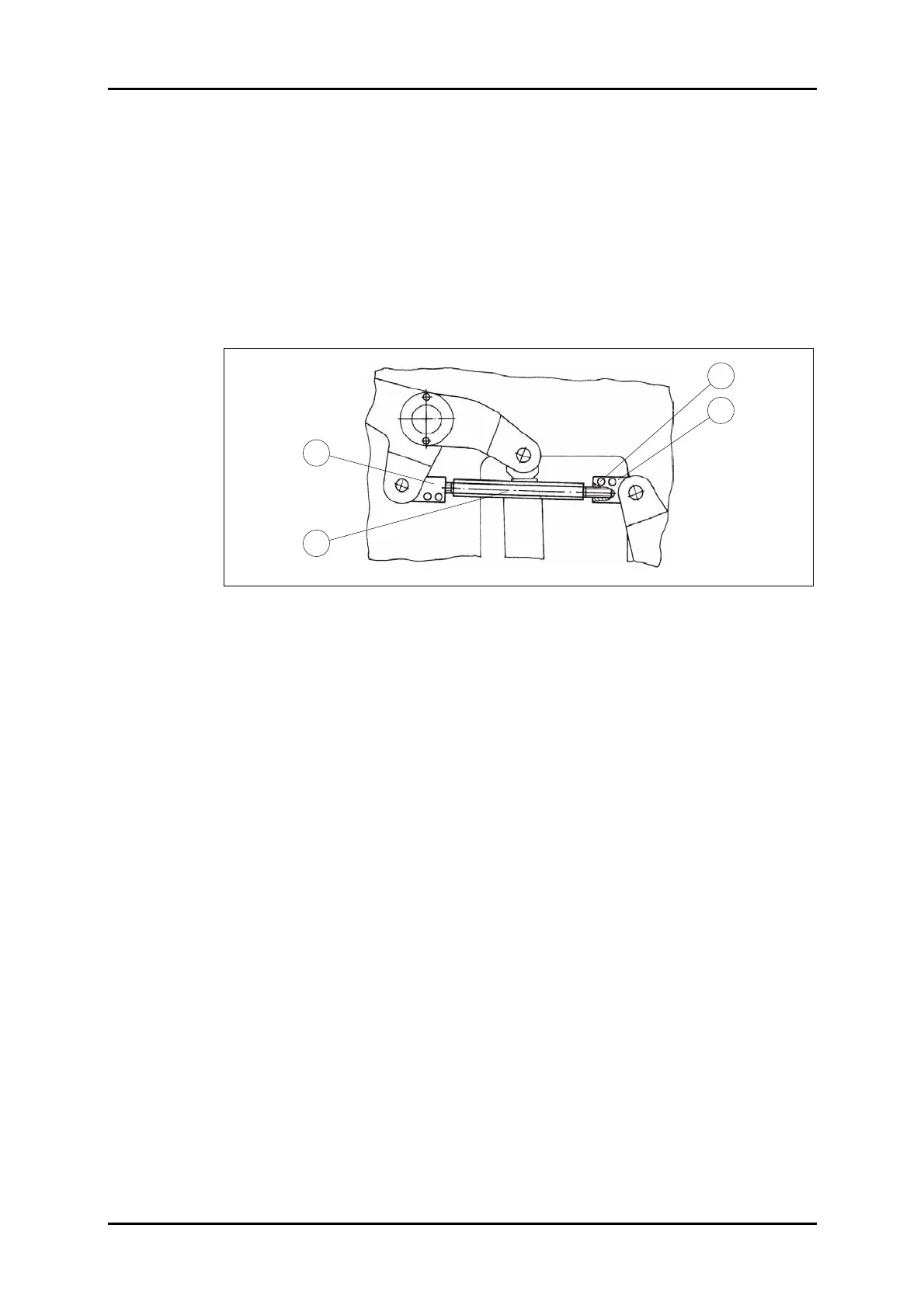

Figure 13: Parallelism adjustment (PERFECTA 76/92).
