Service Manual 3 Clamping System
3.3 Clamp-to-cutting table height and parallelism
1/09 PERFECTA 115 / 132 / 168 / 225 – TS 22
PERFECTA Schneidemaschinenwerk GmbH  D-02625 Bautzen  Schäfferstr. 44  Tel.: +49-3591-556-131 to -133  Fax: +49 3591-556-139
115/132 cm machines

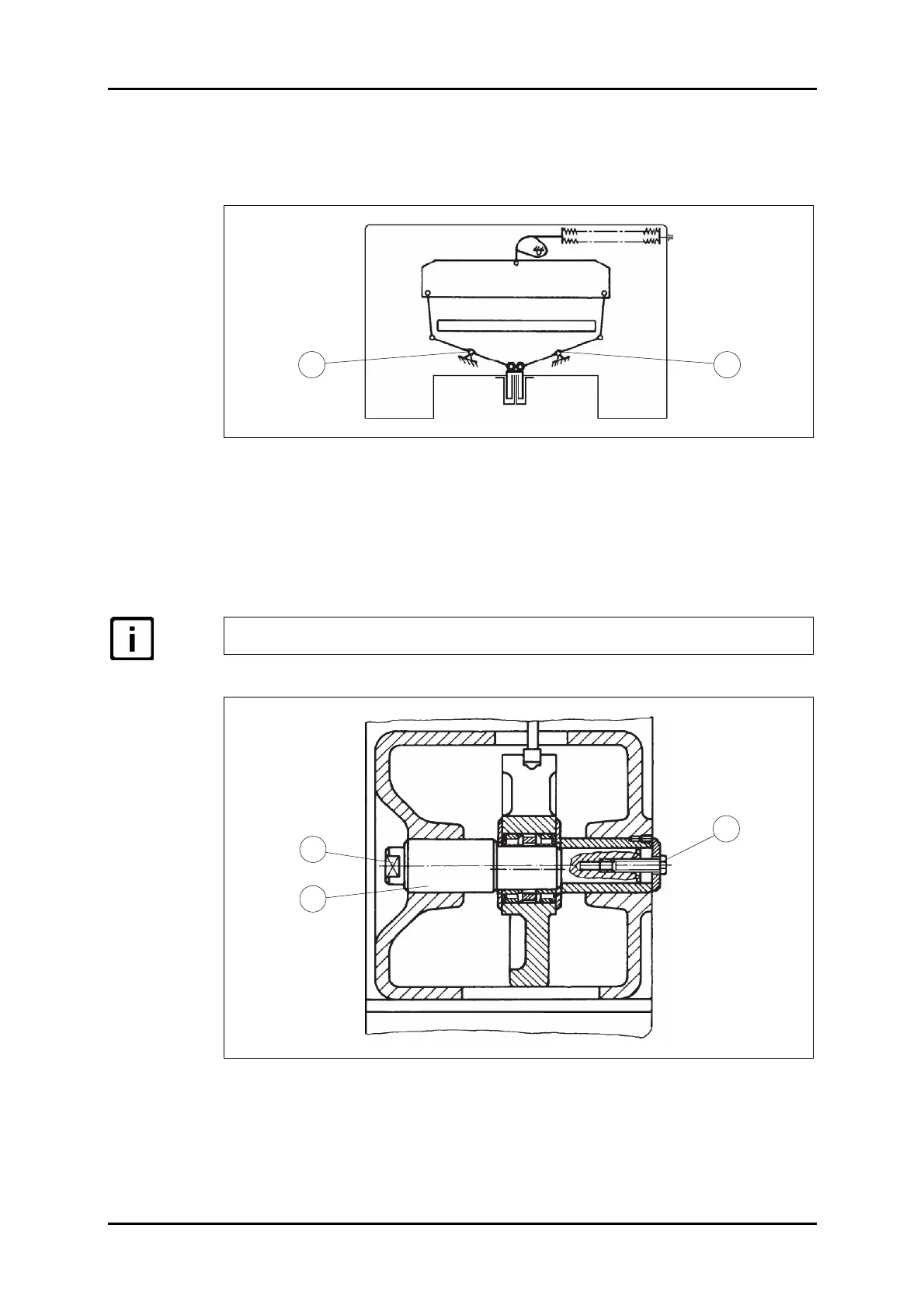

Figure 14 shows the clamping principle of these machines.
Figure 14: PERFECTA 115/132 clamping principle.
- Remove the front and rear hydraulics cover panels.
- Slacken screw 1 on the lower front cross bar.
- Gently rotate clamp lever pivot 2 or 3 by its flats from the machine rear side until
the paper strip is held by the clamp as described above.
- Re-tighten screw 1 and return the cover panel.
Only readjust that clamp lever pivot which is responsible for the deviation.
