Service Manual 3 Clamping System
3.3 Clamp-to-cutting table height and parallelism
1/09 PERFECTA 115 / 132 / 168 / 225 – TS 23
PERFECTA Schneidemaschinenwerk GmbH  D-02625 Bautzen  Schäfferstr. 44  Tel.: +49-3591-556-131 to -133  Fax: +49 3591-556-139
168/225 cm machines
- Slacken upper lock nut 3 of adjusting spindle 2 located in clamp 1.
- Turn nuts 4 so as to bring the clamp in a parallel position with the cutting table.
- Re-tighten lock nut 3.
Only readjust that side which is responsible for the deviation.

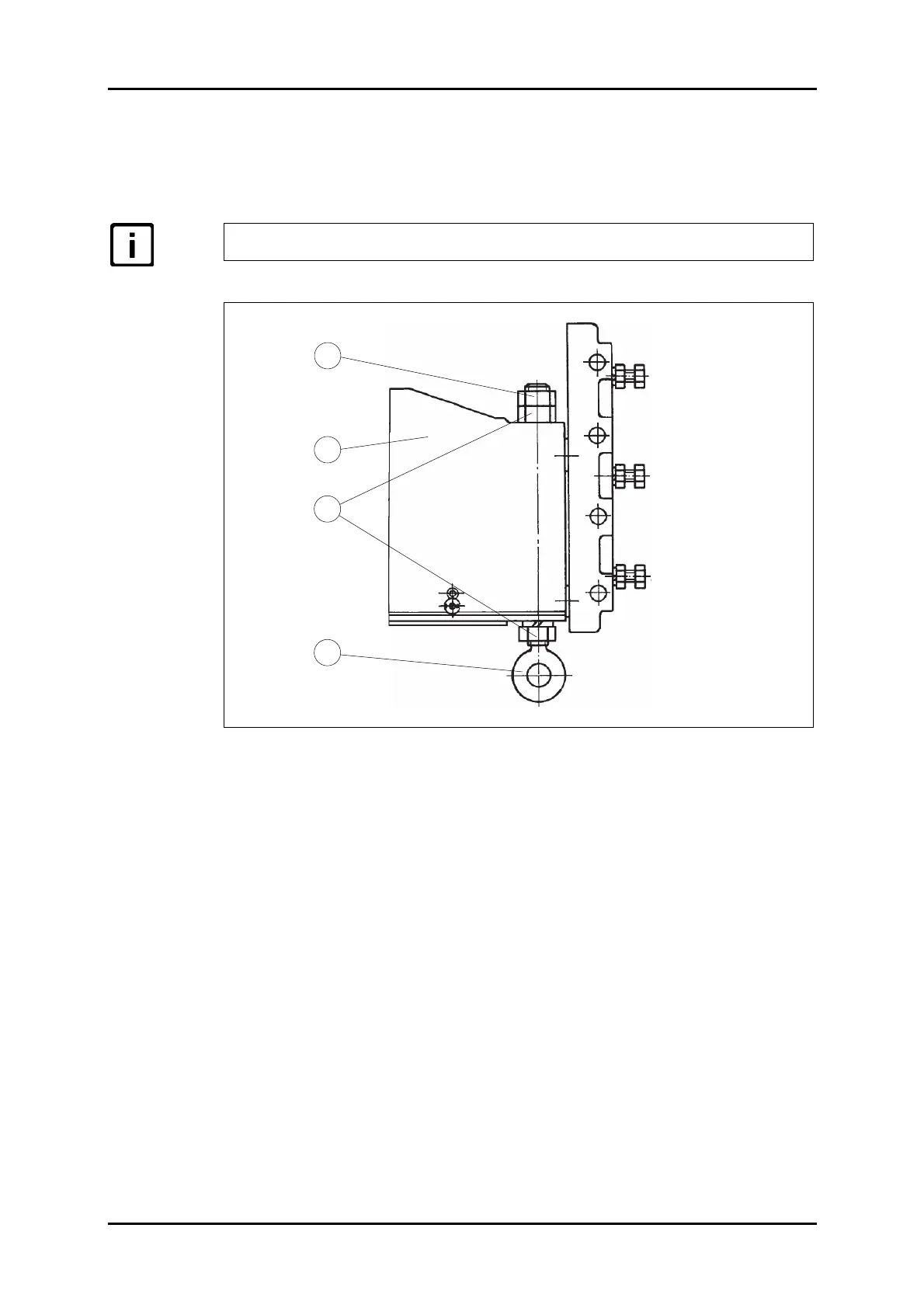

Figure 16: Parallelism adjustment (PERFECTA 168/225).
4
2
3
1
