Perfecta 115 TS - Page 67

Service Manual 11 Electrical Equipment
11.1 Machine safety switches
1/09 PERFECTA 115 / 132 / 168 / 225 – TS 67
PERFECTA Schneidemaschinenwerk GmbH  D-02625 Bautzen  Schäfferstr. 44  Tel.: +49-3591-556-131 to -133  Fax: +49 3591-556-139
1 B39 - Calibration range proximity switch
2 S12 - Flywheel guard safety switch
3 S56 - Mode selector switch
4 S57 - Manual clutch ON pushbutton
5 S52 - Cam control switch (knife up)
6 S53 - Cam control switch (knife down)
7 S54 - Cam control switch (knife upper dead centre)
8 B27 - Rear end position proximity switch
9 S29 - Clamp switch
10 S23 - False clamp switch

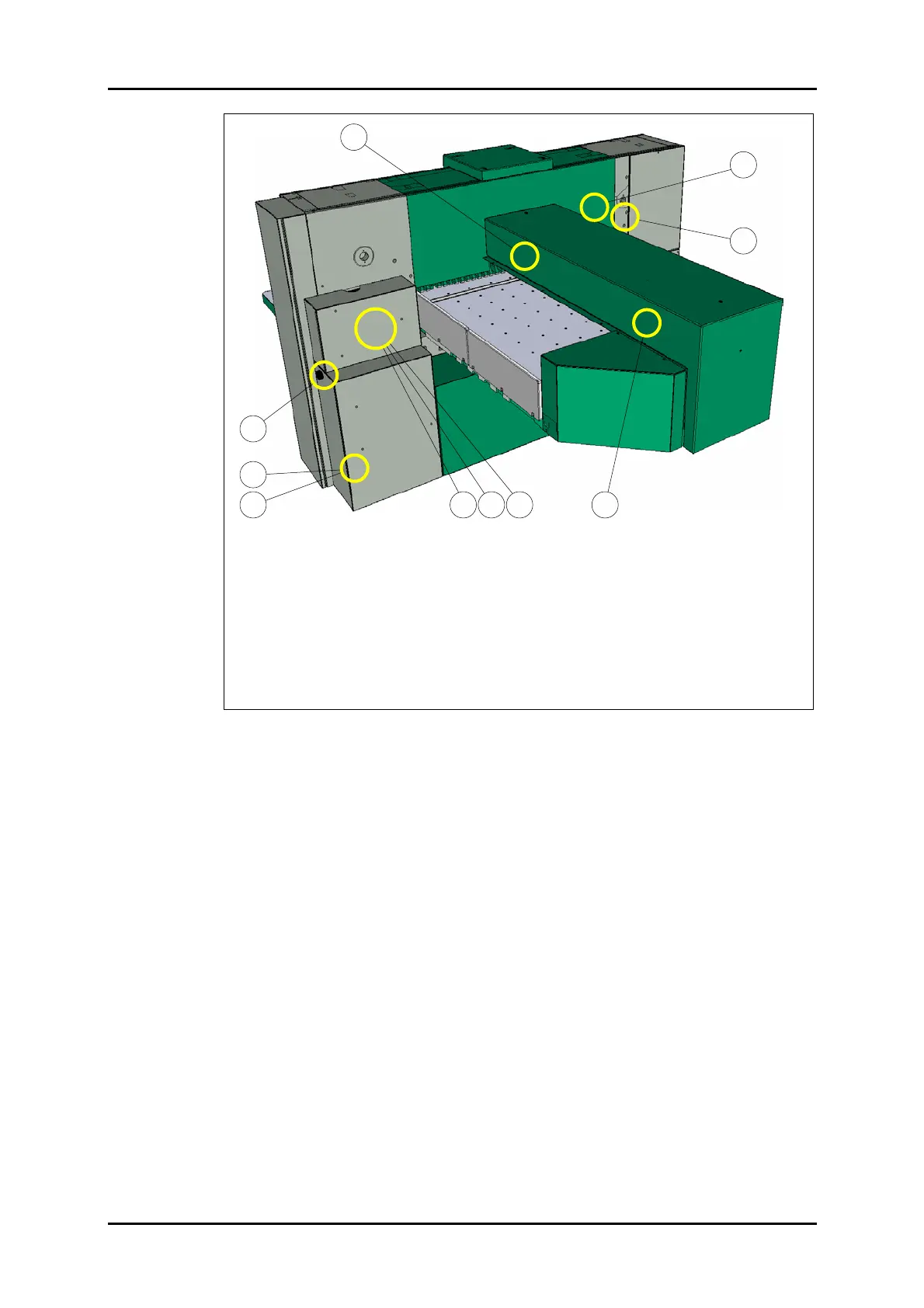

Figure 47: Machine back safety switches.
9
10
8
1
4
2
6 75
3
