Service Manual 9 Clamping pressure basic adjustments
9.1 Amplifier card setting instructions
1/09 PERFECTA 115 / 132 / 168 / 225 – TS 60
PERFECTA Schneidemaschinenwerk GmbH  D-02625 Bautzen  Schäfferstr. 44  Tel.: +49-3591-556-131 to -133  Fax: +49 3591-556-139
P4 Min. pressure setting
P6 Max. pressure setting
P7 Pot to be set to middle position
1 Red LED: - fault monitoring
2 Green LED: - stabilized reference circuit
3 Yellow LED: - output stage status

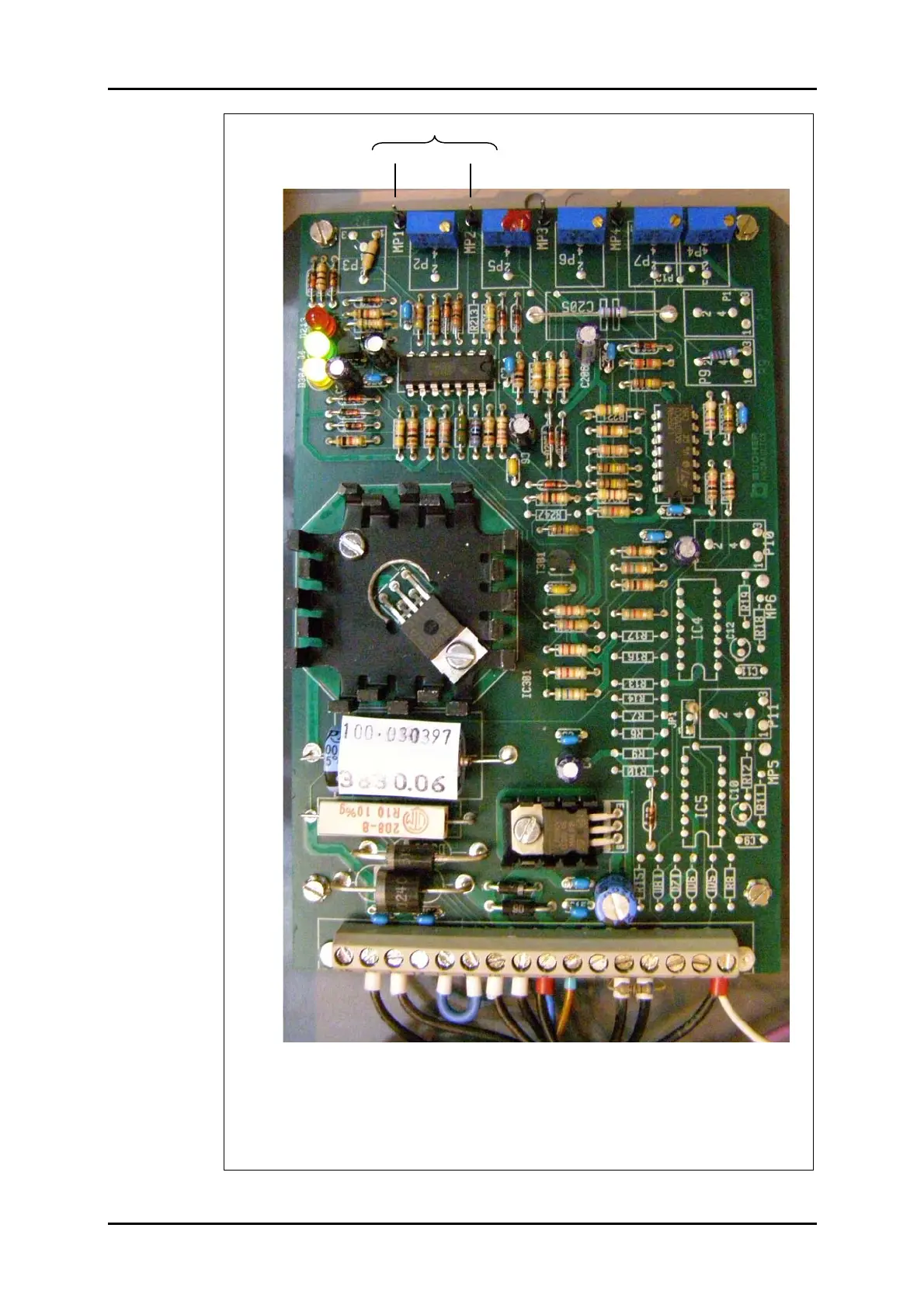

Figure 41: ESRV 103 amplifier card.
P2 P5 P6 P7 P4
To be set to 6.2 V at max. input signal
Meas.pt.1 Meas. pt.2
1
2
3
