PIAGGIO Beverly 500 i.e. - Inspecting the Valve Stem Guide Clearance

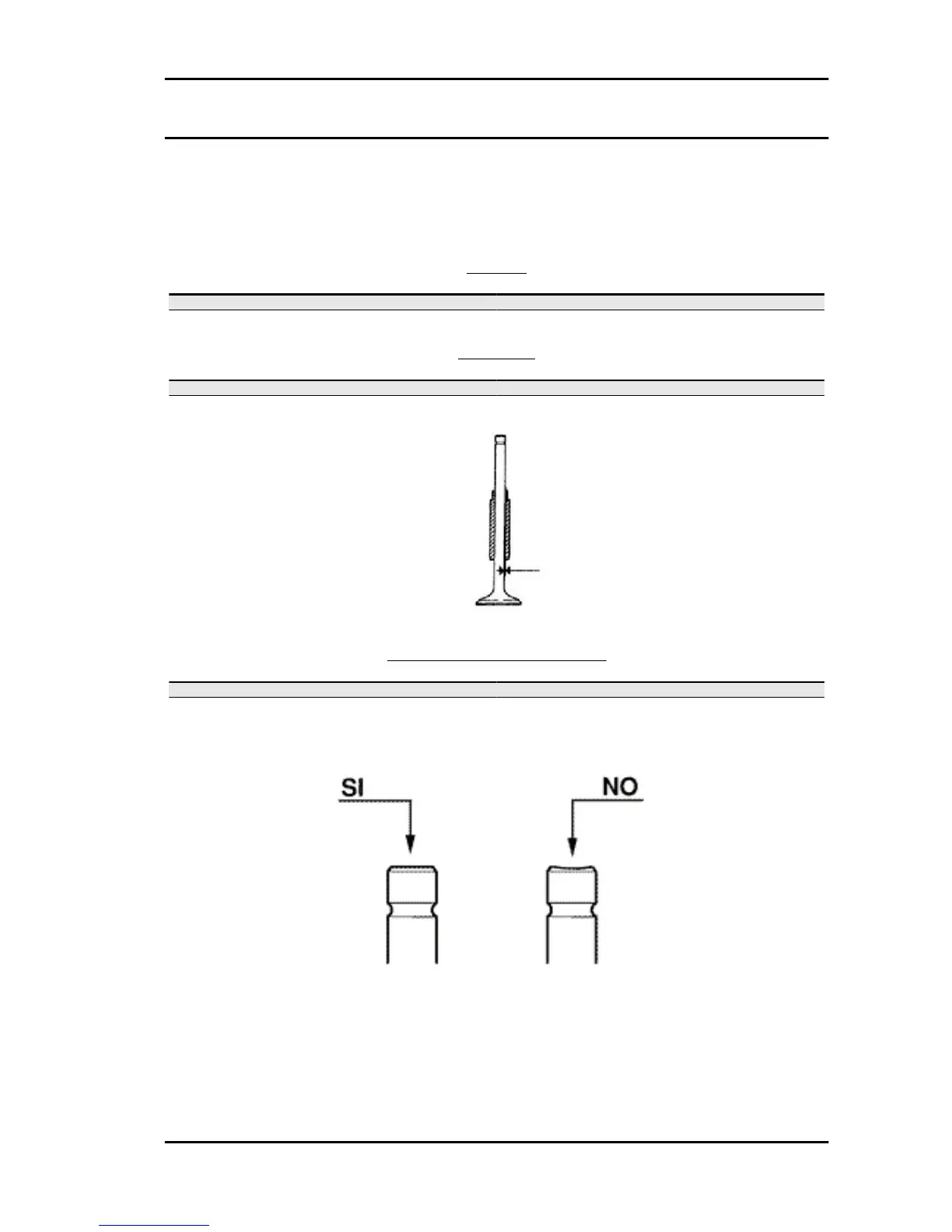

Inspecting the valve stem guide clearance
- After measuring the valve guide diameter and the valve stem diameter, check clearance between
guide and stem.
INTAKE
Specification Desc./Quantity
Standard clearance: 0.013 - 0.04 mm
Admissible limit: 0.08 mm
EXHAUST
Specification Desc./Quantity
Standard clearance: 0.025 to 0.052 mm
Admissible limit: 0.09 mm
STANDARD VALVE LENGTH
Specification
Desc./Quantity
Intake: 95.0 ± 0.3 mm
Exhaust: 94.2 ± 0.3 mm
- Check that there are no signs of wear on the surface of contact with the articulated register terminal.
Beverly 500 i.e. Engine
ENG - 121
