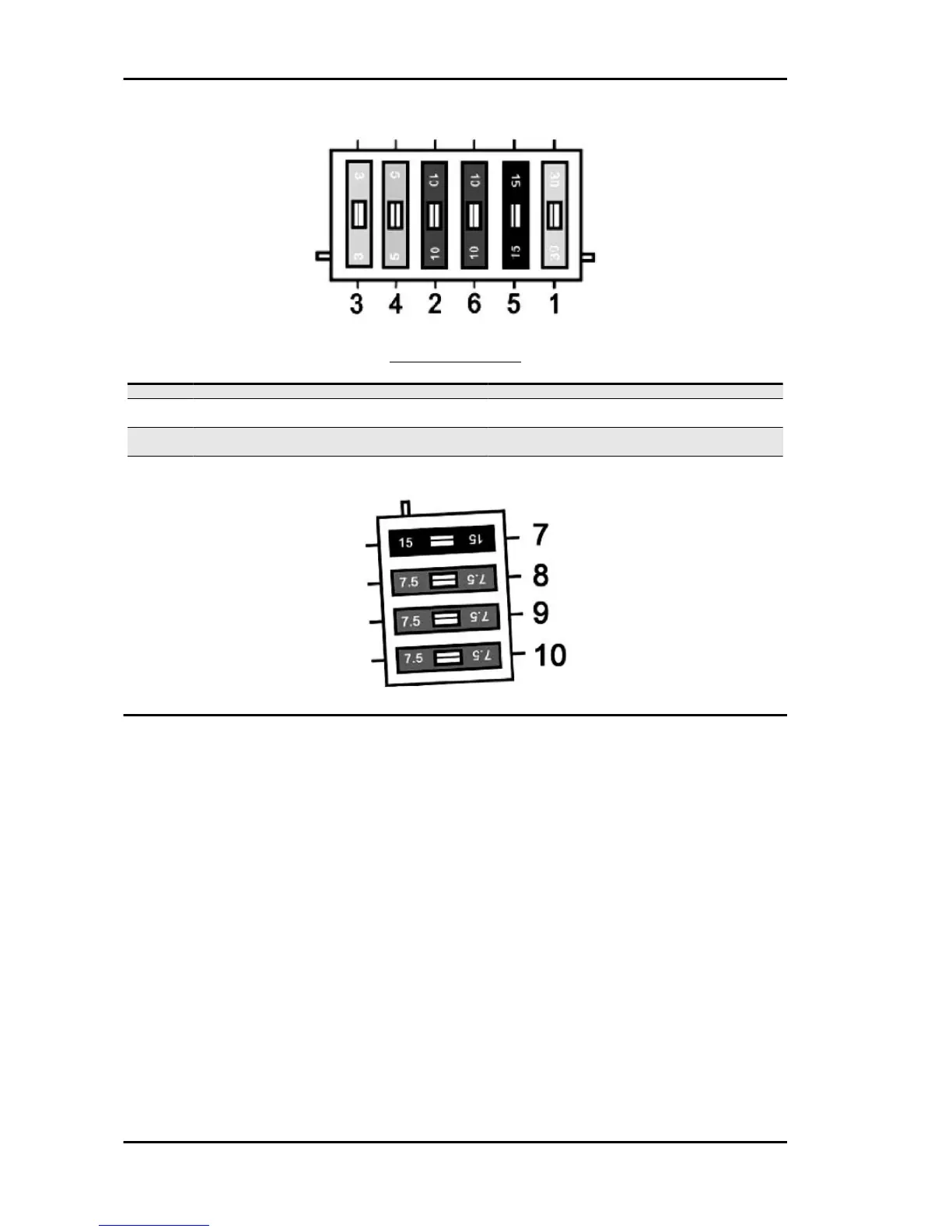

FUSE HOLDER B
Specification Desc./Quantity
1 7 - Light flash, fitting for accessories, horn Fuse: 15A
2 8 - Brake lights, fitting for radio and anti-theft system,
damper, under-key instrument panel.
Fusibile: 7,5A
3 9 - Light switch. Lamps for front and rear side/taillights,
number plate light, indicators on the instrument panel.
Fusibile: 7,5A
4 10 - Immobilizer led, radio/intercom fitting, anti-theft sys-
tem
Fuse: 7,5A
Sealed battery
Commissioning sealed batteries
If the vehicle is provided with a sealed battery, the only maintenance required is the check of its charge
and recharging, if necessary. These operations should be carried out before delivering the vehicle, and
on a six-month basis while the vehicle is stored in open circuit. Besides upon pre-delivery it is therefore
necessary to check the battery charge and recharge it, if required, before storing the scooter and af-
terwards every six months.
INSTRUCTIONS FOR THE RENEWAL RECHARGE AFTER OPEN-CIRCUIT STORAGE
1. Voltage check
2.
•
Before installing the battery on the vehicle, check the open circuit voltage with a regular
tester.
•
If voltage exceeds 12.60 V, the battery may be installed without any renewal recharge.
•
If voltage is below 12.60 V, a renewal recharge is required as explained at 2).
3. Constant-voltage battery instructions
Electrical system Beverly 500 i.e.
ELE SYS - 46
