PIAGGIO Beverly 500 i.e. - Brake Fluid Level Check

Brake fluid level check
•
Rest the scooter on a flat ground and
on the central stand.
•

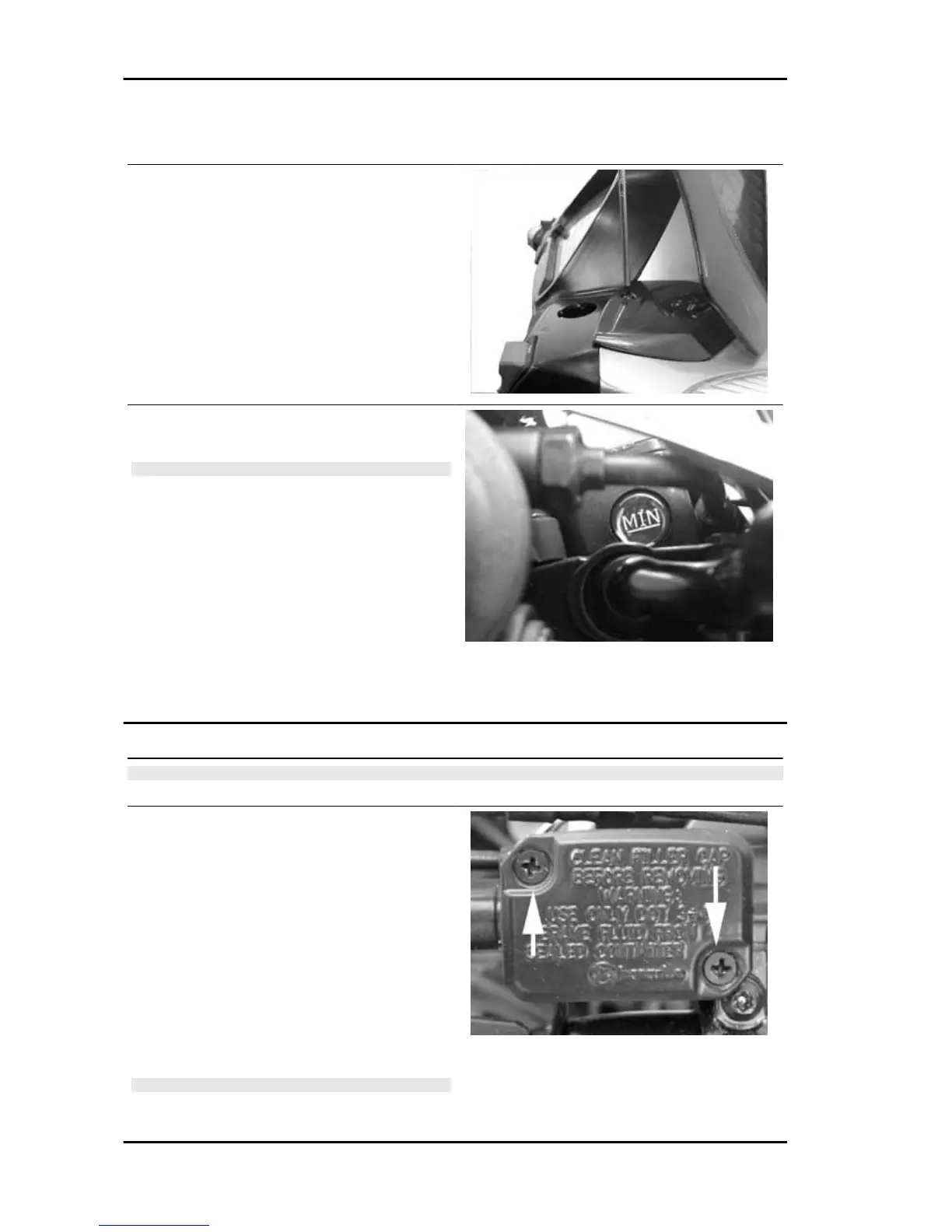

Remove the brake pump cover as
shown in the figure
•
Check the fluid level by the portholes
on the pumps.
N.B.
THE LEVEL TENDS TO DROP AS THE BRAKE PADS GET
WORN, A MINIMUM LEVEL SHOULD NOT BE REACHED.
IF THE LEVEL IS TOO LOW, CHECK AND FIX THE SYSTEM
SEALS, IF REQUIRED. TOP UP THE PUMP RESERVOIR, IF
REQUIRED, CONSIDERING THAT THE "MAX." LEVEL
MUST ONLY BE OBTAINED WITH NEW PADS.
For re-assembly, perform the operations for removal in the reverse order according to the tightening
torque of the tank cover screws.
Top up
CAUTION
ONLY USE DOT 4-CLASSIFIED BRAKE FLUID.
Proceed as follows:
•
Rest the scooter on a flat ground and
on the centre stand.
•
- Remove the brake pump cover as
shown in the figure.
•
Remove the tank cap by loosening its
two screws indicated in figure remove
the gasket and top up the level, using
only the prescribed fluid without ex-
ceeding the maximum level.
CAUTION
Braking system Beverly 500 i.e.
