PIAGGIO Beverly 500 i.e. - Frame Central Cover; Legshield

Frame central cover
•

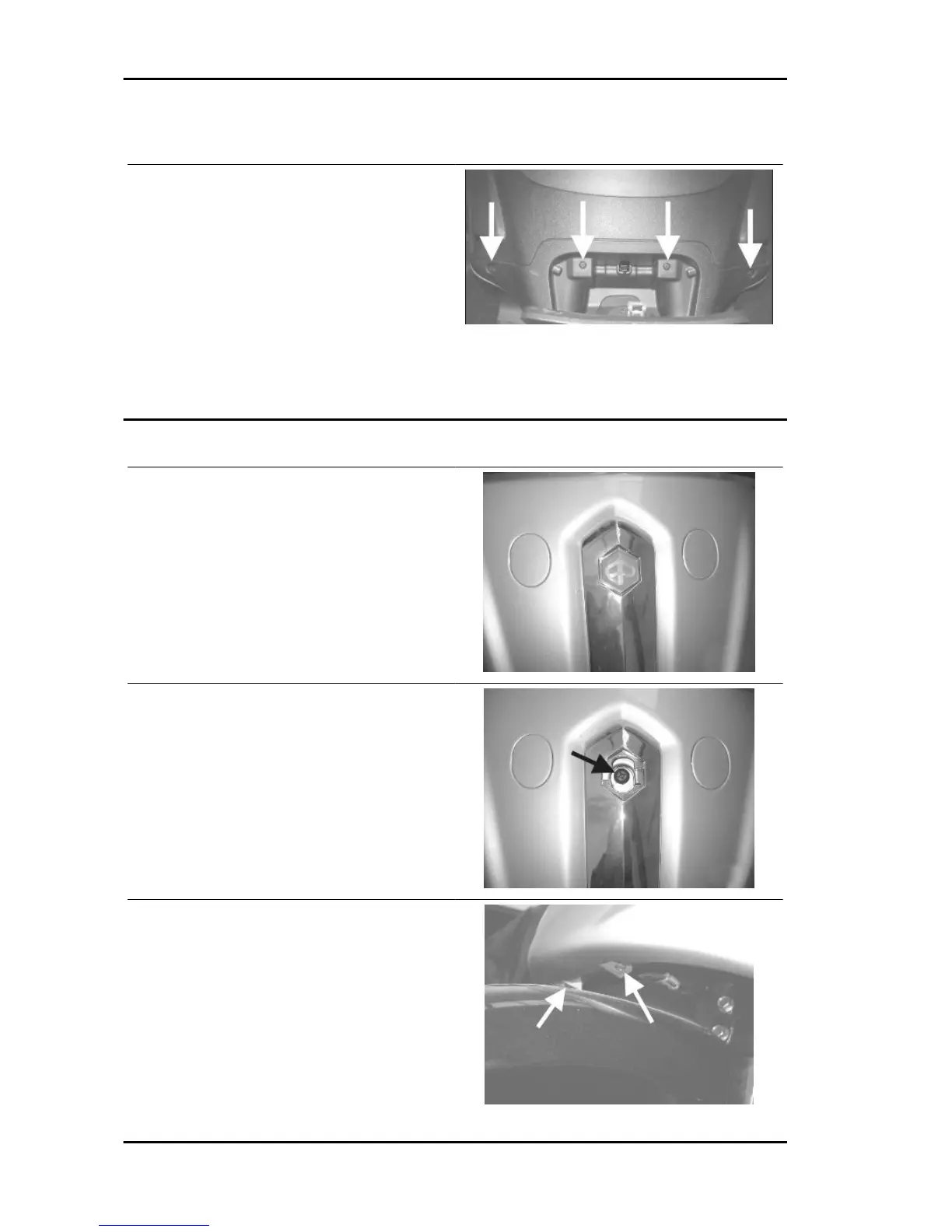

Open the fuel tank access port.
•
Loosen the 4 screws shown in the fig-
ure.
•
Temporarily remove the fuel tank cap
and the underlying rubber mat.
•
Remove the chassis central cover by
sliding it from the rear side of the scoot-
er and disconnecting it from the door
opening transmission.
Legshield
•
Remove Piaggio badge using a screw-
driver being careful not to damage the
front shield.
•
Remove the screw shown in the figure.
•
Remove the two lower fixing screws
shown in the figure.
Chassis Beverly 500 i.e.
CHAS - 314
