Front brake disc
Removal

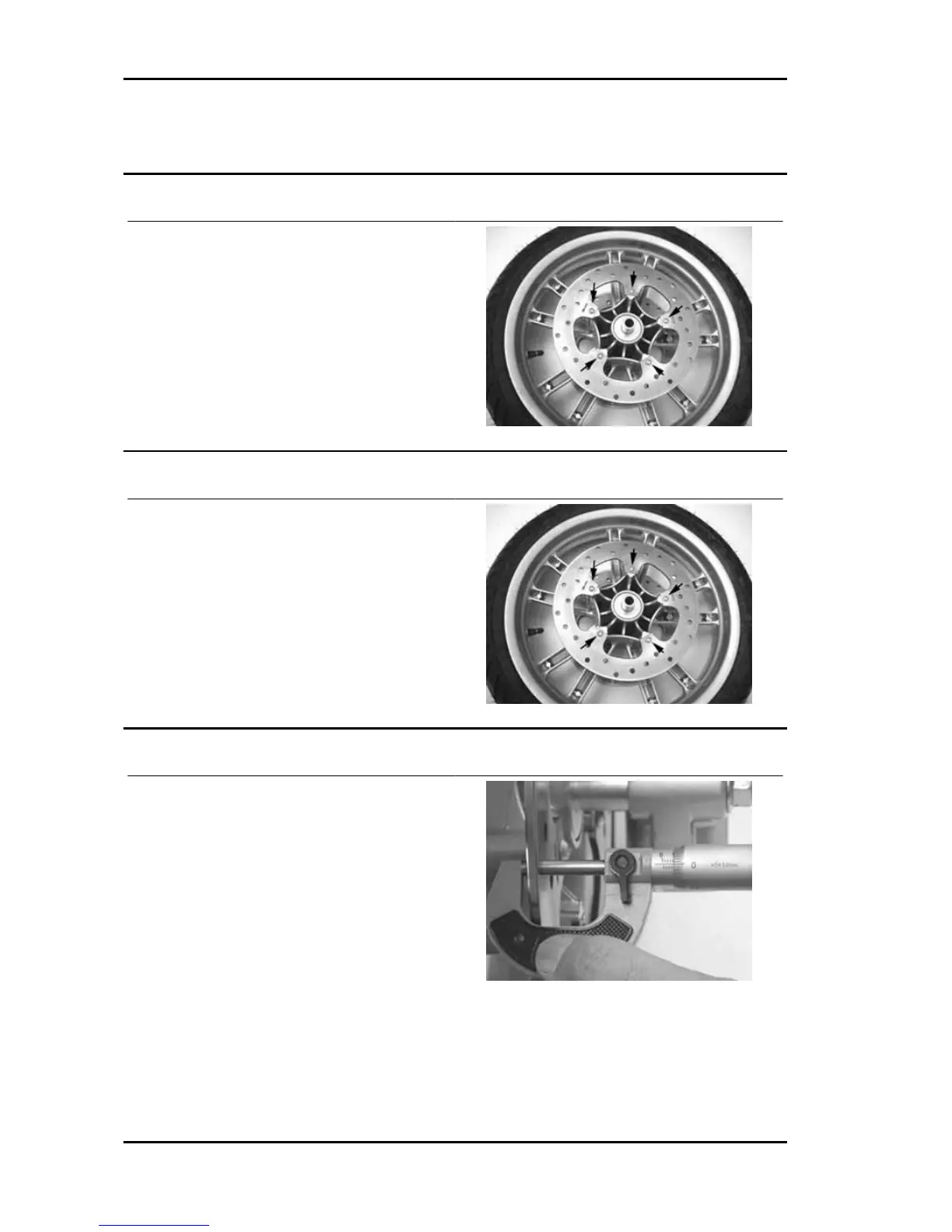

- Remove the front wheel.
- Adequately support the front wheel and remove
the break disc operating on the five screws shown
in the photograph.
Refitting
•
Perform the removal operations in the
reverse order according to the direc-
tion of rotation of the disc, as shown by
the arrow on the disc.
•
Tighten the 5 screws to the prescribed
torque.
Locking torques (N*m)
Brake disc tightening torque 11-13 Nm
Disc Inspection
•
Use the micrometer to check the thick-
ness of the disc as shown in the pho-
tograph
Characteristic
Standard thickness:
4 +02-01mm
Braking system Beverly 500 i.e.
BRAK SYS - 292
