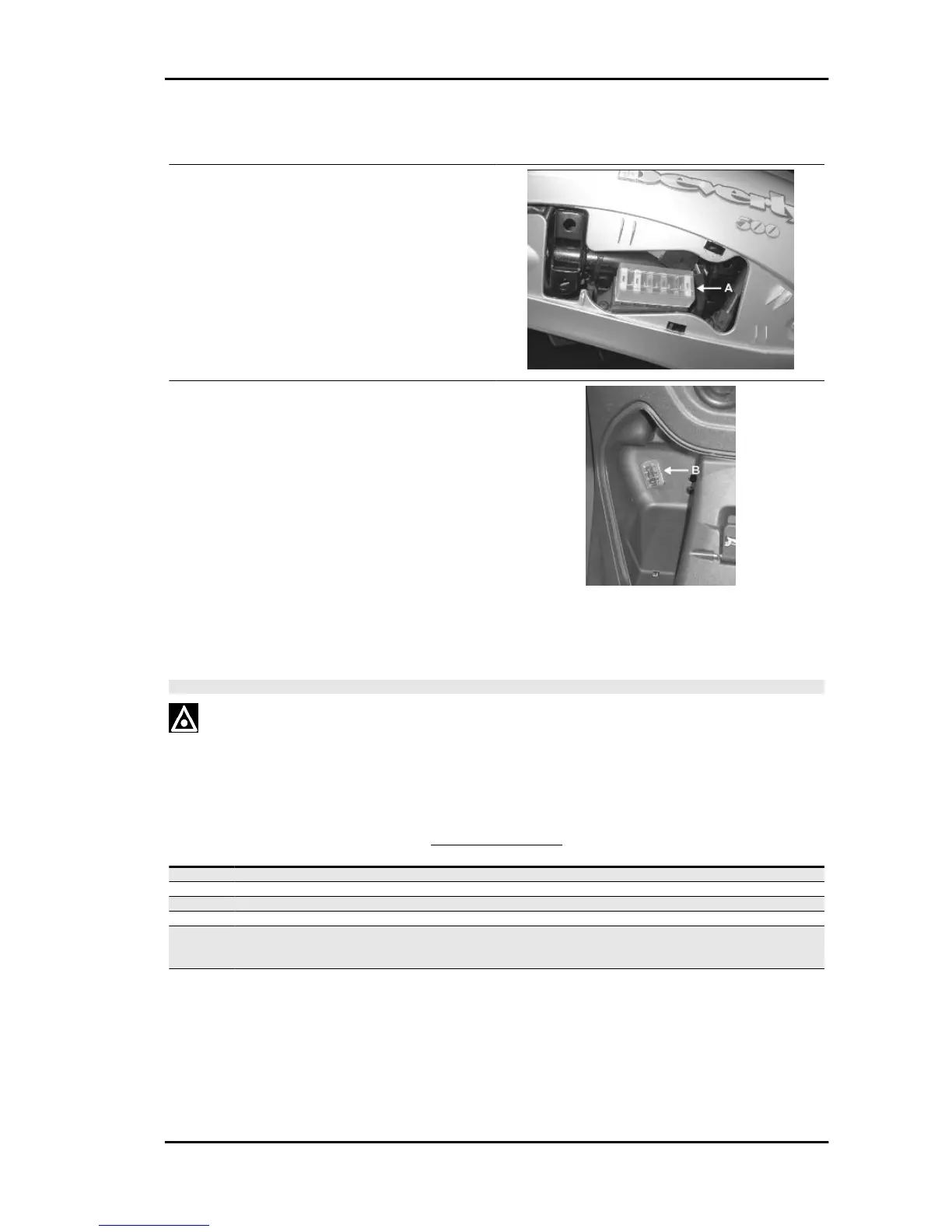

Fuses
The electrical system is equipped with:
•
Six «A » fuses located inside the right-
hand side fairing.
•
Four «B» protection fuses for the dif-
ferent circuits of the electrical system
located inside the glove-box on the top
left-hand side of the helmet compart-
ment.
Never try to replace a blown fuse with a fuse of a different rating than that specified or using
other material (for example, a piece of electrical wire).
The tables show the position and characteristics of the fuses on the scooter.
CAUTION
BEFORE REPLACING THE BLOWN FUSE, SEARCH AND SOLVE THE PROBLEM THAT CAUSED
IT TO BLOW.
NEVER TRY TO REPLACE A BLOWN FUSE WITH A FUSE OF A DIFFERENT RATING THAN THAT
SPECIFIED OR USING OTHER MATERIAL (FOR EXAMPLE, A PIECE OF ELECTRICAL WIRE).
FUSE HOLDER A
Specification
Desc./Quantity
1 1 - General Fuse: 30 A
2 2 - Electronic control unit remote control switch Fuse: 10A
3 3 - Controller power supply, immobilizer Fuse: 3A
4 4 - Under-panel controller Fuse: 5A
5 5 - Socket 12v - 180w, helmet compartment lighting but-
ton, key switch contacts, saddle opener actuator, electric
button opening.
Fuse: 15A
6 Remote light control switch Fuse: 10 A
Beverly 500 i.e. Electrical system
ELE SYS - 45
