This section is dedicated to operations that can be carried out on the suspensions.
Front

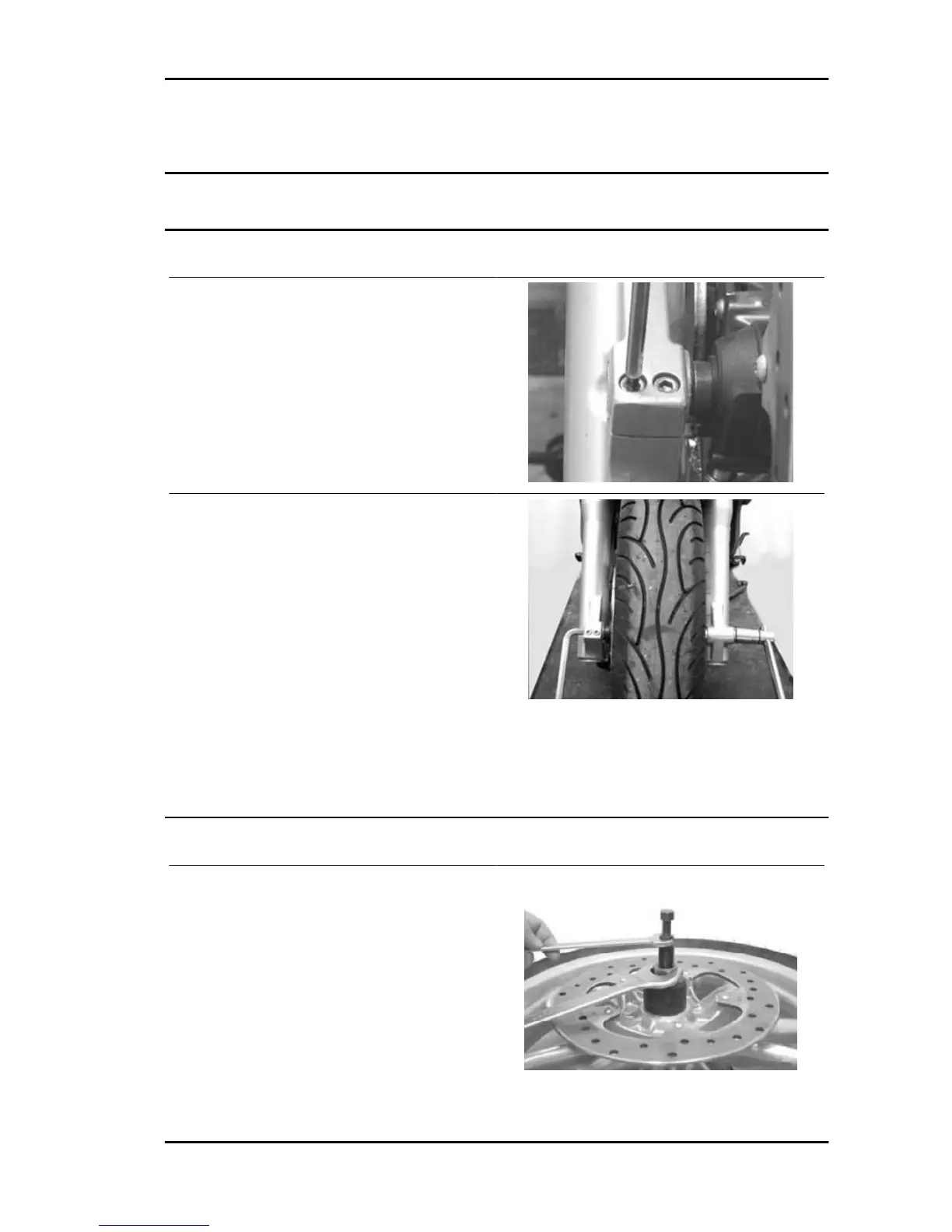

Removing the front wheel
•
Loosen the two wheel axle locking
screws shown in the figure.
•
Remove the wheel axle locking nut.
•
Slide off the wheel axle and remove the
wheel.
•
Upon removal take care not to damage
the sensor that detects movement in
the odometer.
•
Check that the wheel axle does not
show signs of wear or deformations. If
it does, replace it.
Locking torques (N*m)
Wheel axle fixing screws: 6 ÷ 7 Nm Front wheel
axle nut 45 - 50
Front wheel hub overhaul
Check that the wheel bearings do not show signs
of wear.
If you have to replace the wheel bearings, proceed
as follows:
•
Remove the 2 bearings on the odom-
eter movement sensor side using the
pliers 14 or 34 and the driver, part 9.
•
Remove the inside spacer.
Specific tooling
Beverly 500 i.e. Suspensions
SUSP - 261
