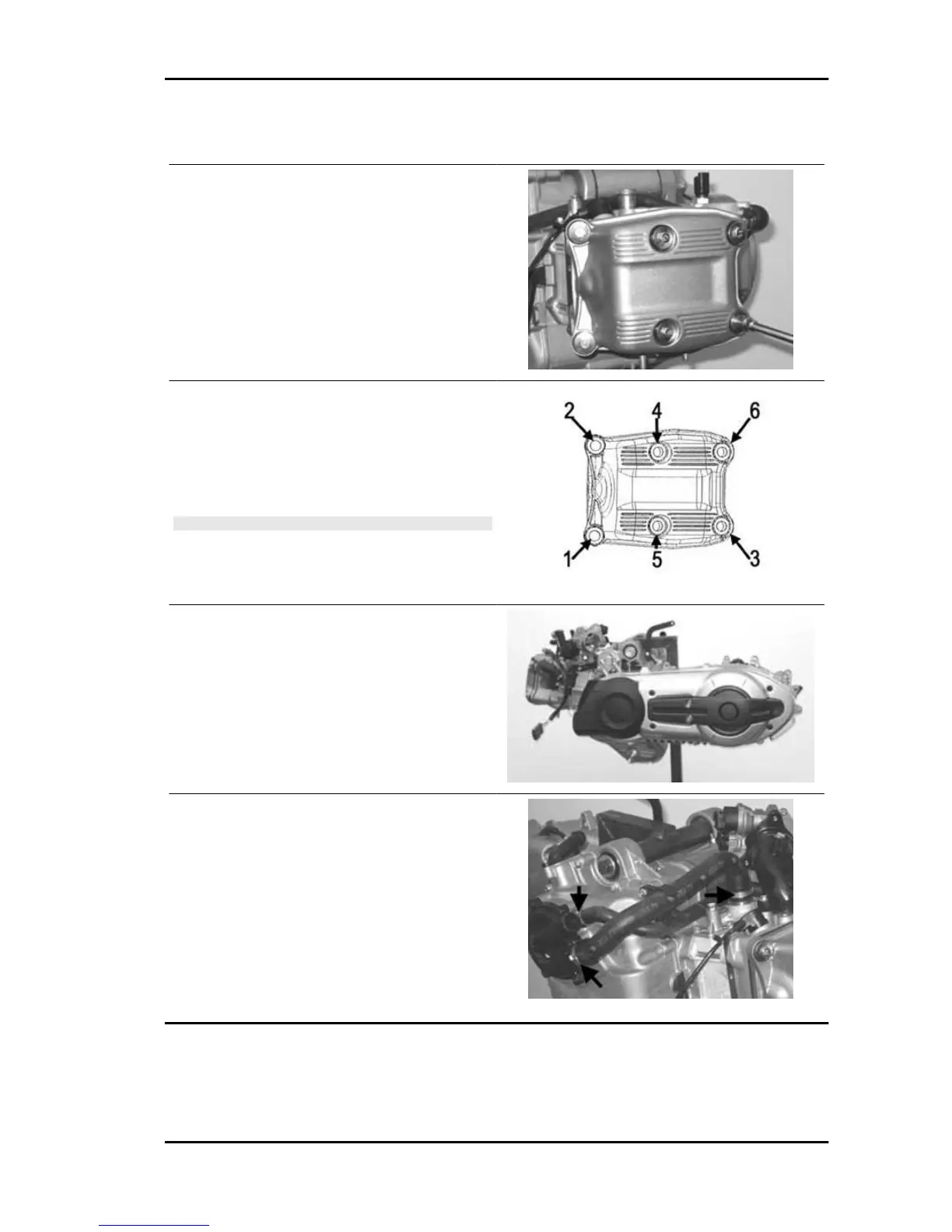

Refitting the rocker-arms cover
- Check that the gasket is in good working order.
- Tighten the two screws indicated in the figure with
«1» and «2» to limit the reciprocal sliding of the
cover surface with the head surface.
- Tighten the remaining 4 screws in a crossed se-
quence (3, 4, 5, 6).
N.B.
CHECK THE PROPER POSITION OF THE GASKET.
Locking torques (N*m)
Tappet cover fixing screws 7 - 9
- Install the transmission cover and the relevant
mesh filter and the outside transmission cover as
described in the "Automatic transmission" chapter.
- Install the cooling system sleeves using new
bands, as described in the "Flywheel cover" chap-
ter.
