AVOID CONTACT OF THE BRAKE FLUID WITH YOUR
EYES, SKIN, AND CLOTHING. IN CASE OF ACCIDENTAL
CONTACT, WASH WITH WATER.
WARNING
BRAKE CIRCUIT FLUID IS VERY CORROSIVE; DO NOT
LET IT COME INTO CONTACT WITH PAINTED PARTS.
Recommended products
AGIP BRAKE 4 Brake fluid
FMVSS DOT 4 Synthetic fluid

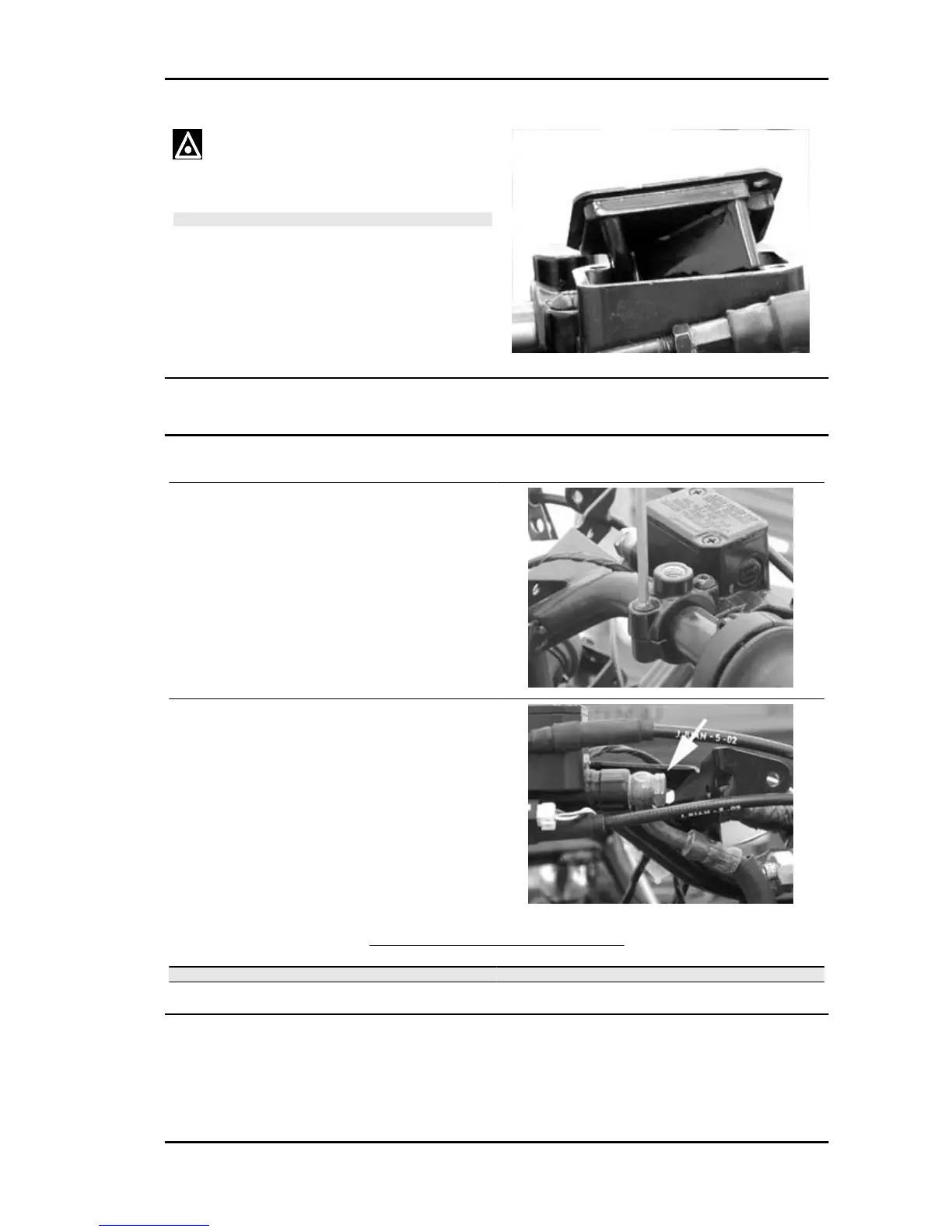

Front brake pump
Removal
- Remove the front handlebar cover
- Remove the two screws mounting the brake
pump to the handlebar, as shown in the figure.
- Remove the oil pipe fitting from the pump undoing
the screw indicated in the figure.
- Remove the stop light switch connector
BRAKE PUMP TECHNICAL DATA
Specification
Desc./Quantity
Pump right piston diameter: Ø 12
Pump left piston diameter: Ø 14
Refitting
To refit, carry out the removal operations but in reverse order, observing the specified torques.
Locking torques (N*m)
Beverly 500 i.e. Braking system
BRAK SYS - 299
