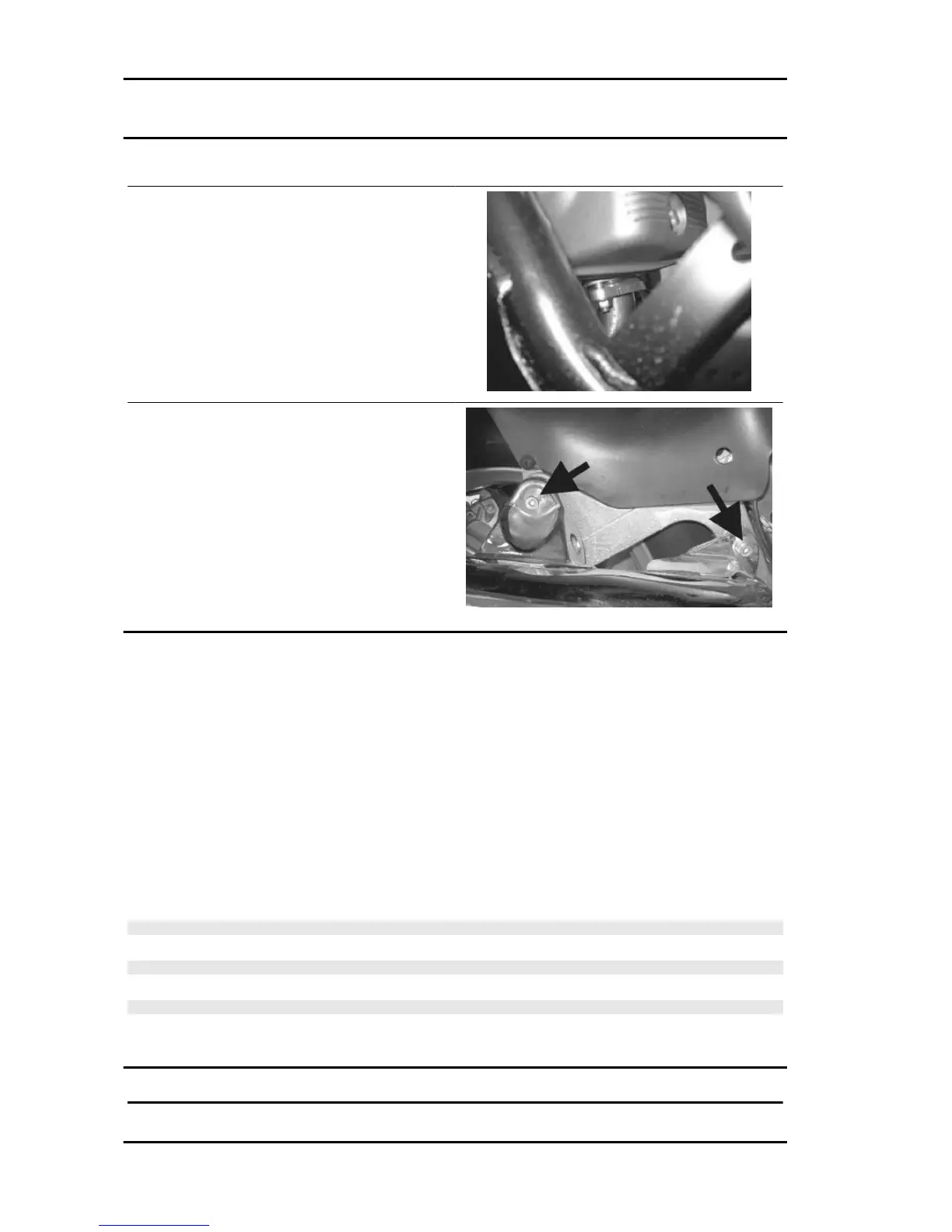

Exhaust assy. Removal
- Undo the two exhaust manifold fixings on the
head.
- Undo the three screws fixing the muffler to the
mounting arm.
- Remove the full muffler unit.
Removal of the engine from the vehicle
•
Disconnect the battery, remove the saddle and the fairings and drain the coolant.
•
Remove the muffler and the relevant support and remove the rear wheel.
•
Remove the swinging arm and the accelerator control transmission.
•
Remove the air filter sleeve and the engine earth cable.
•
Disconnect the carburettor electrical devices and the starter motor power supply cable.
•
Disconnect the fuel delivery and return pipes from the carburettor and the cooling system
piping (outlet from the head and inlet to the thermostat).
•
Disconnect the spark plug H.V. cable and the alternator cables from the scooter electrical
system.
WARNING
CARRY OUT THESE OPERATIONS WHEN THE ENGINE IS COLD.
WARNING
HANDLE FUEL WITH CARE.
CAUTION
WHEN INSTALLING THE BATTERY, ATTACH THE POSITIVE LEAD FIRST AND THEN THE NEG-
ATIVE ONE.
Vehicle engine assembly
Engine from vehicle Beverly 500 i.e.
