que, orientating the union parallel to
the horizontal axis, as shown in the fig-
ure
Locking torques (N*m)
Brake calliper fastening screws: 20-25 N•m Brake
coolant pipe union 20-25 N·m

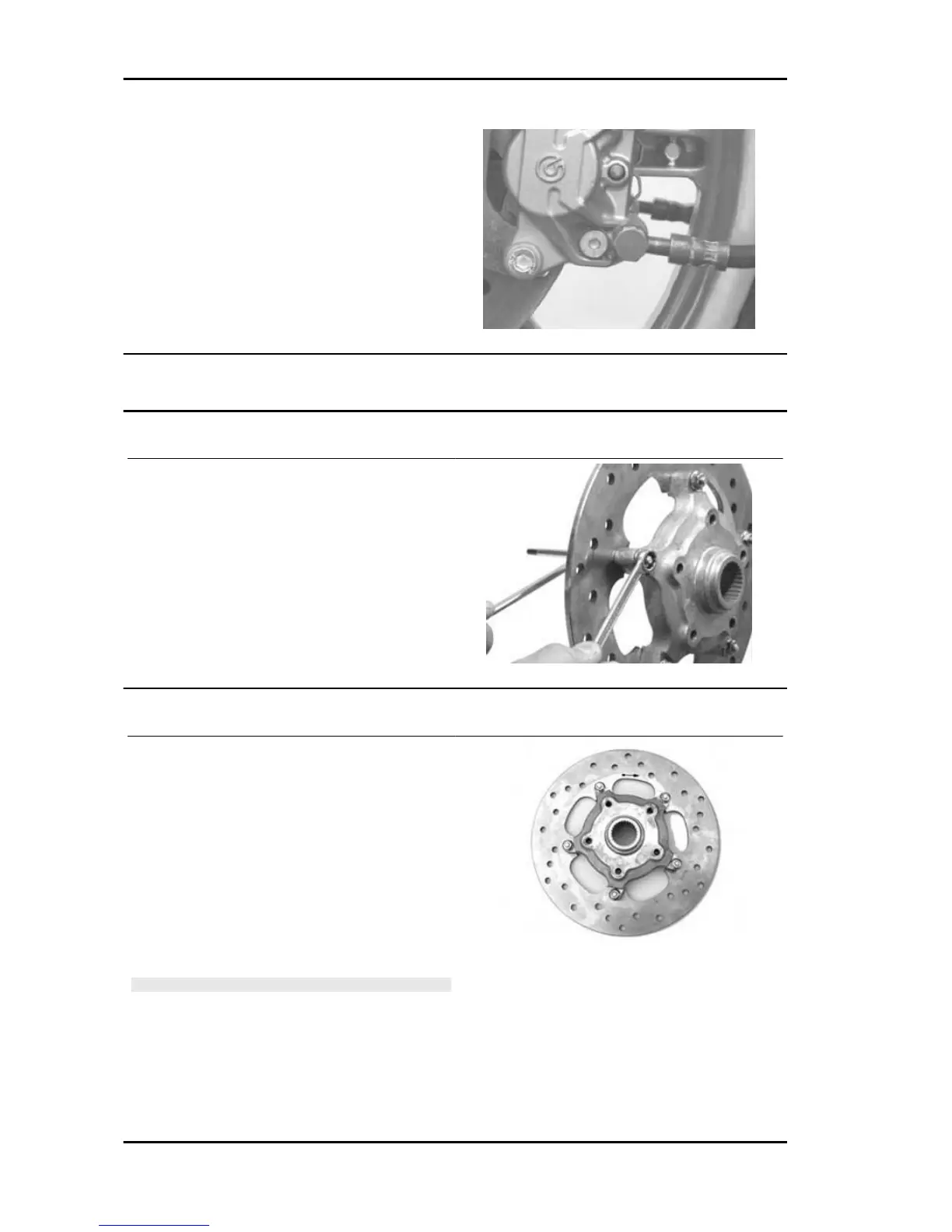

Rear brake disc
Removal
- Remove the rear brake calliper
- Remove the brake disc with hub from the wheel
axle.
- To remove the brake disc from the hub, support
the unit in a vice and tighten the 5 fastening bolts
with self-locking nuts.
Refitting
- To reassemble the brake disc on the hub, carry
out the removal operations in the reverse order ar-
ranging the brake disc on the hub on the side
opposed the wheel keying
- Follow the direction of rotation shown by the ar-
row and tighten to the prescribed torque.
- Lubricate the seat of the wheel bearing shaft on
the manifold support with the recommended
grease.
N.B.
APPLYING AN EXCESSIVE QUANTITY OF GREASE MAY
IMPAIR THE BRAKE PERFORMANCE
Recommended products
AGIP GREASE PV2 Grease for steering bear-
ings, pin seats and swinging arm
Braking system Beverly 500 i.e.
BRAK SYS - 290
