PIAGGIO Beverly 500 i.e. - Centre-Stand; Side Stand

Shock absorber lower clamping 33 to 41 Upper shock absorber retainer 33 to 41

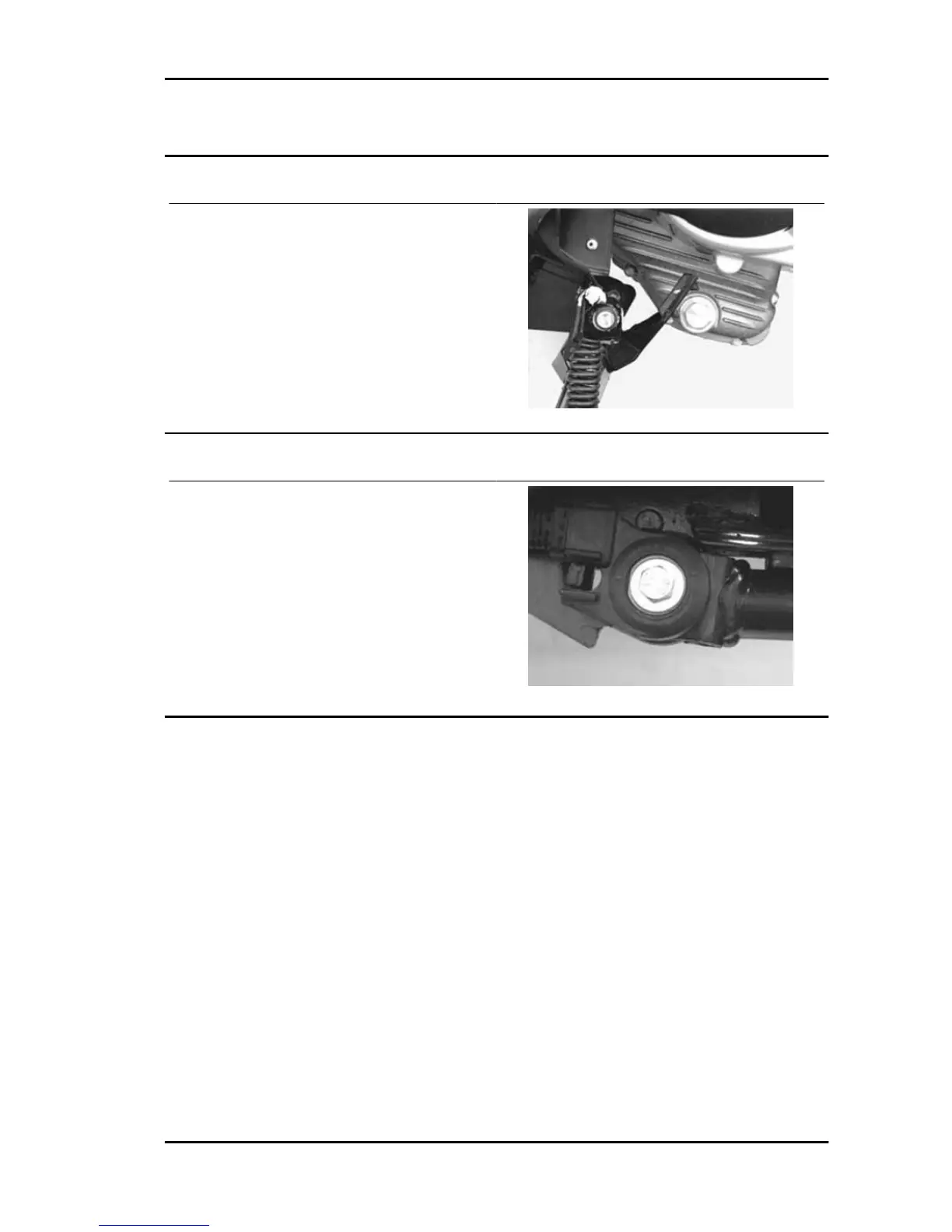

Centre-stand
- Remove the two return springs from the centre
stand.
- Loosen the fastening nuts.
- Remove the centre stand.
- On refitting tighten the nut to the specified torque.
Locking torques (N*m)
Central stand retainers 25 ÷ 30
Side stand
•
Release the springs.
•
Loosen the nut.
•
Extract the screw.
FITTING
•
For reassembly, perform the previous
operations in the reverse order
Locking torques (N*m)
Side stand fastening bolt 40 - 45 Nm
Beverly 500 i.e. Suspensions
SUSP - 283
