PIAGGIO Beverly 500 i.e. - Refitting the Hub Cover Bearings

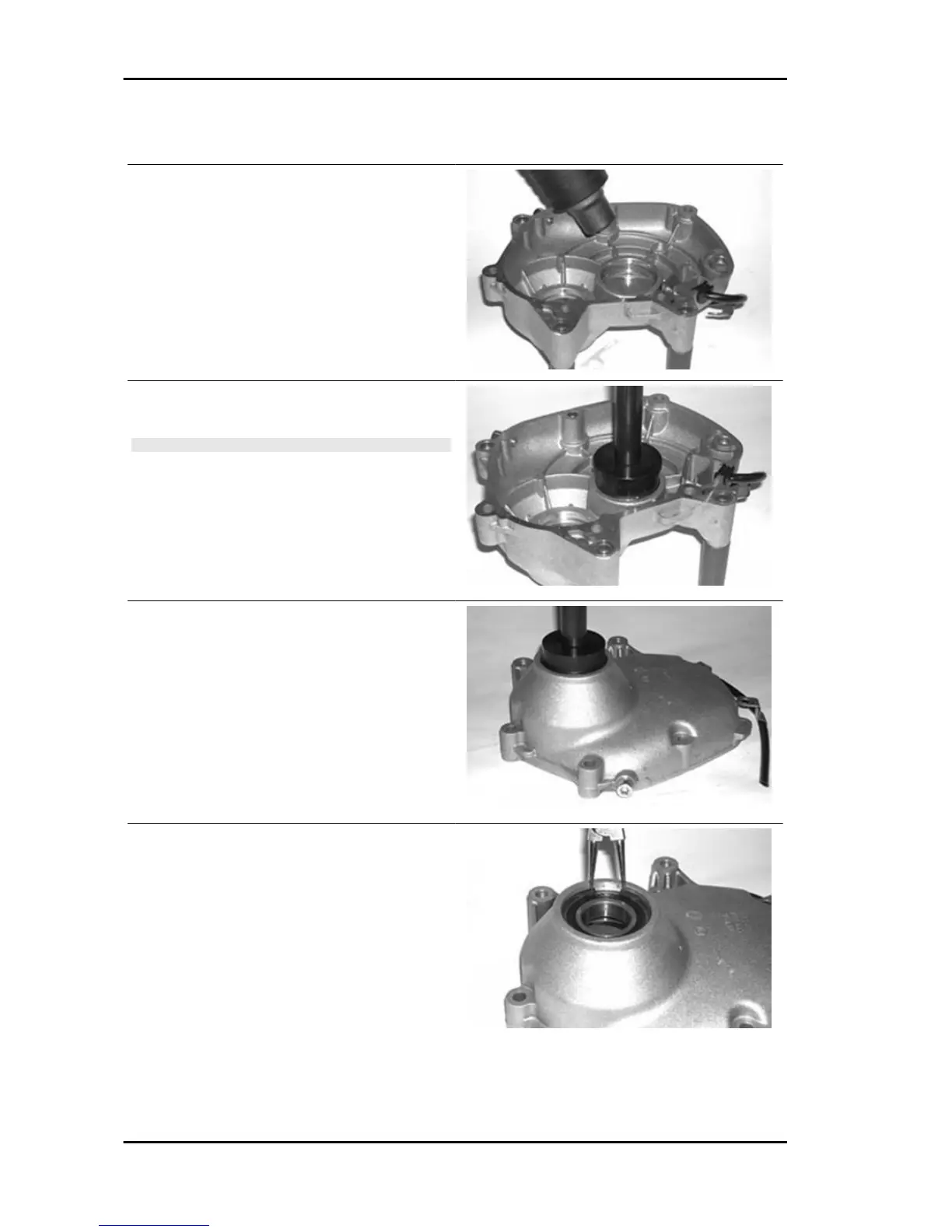

Refitting the hub cover bearings
- Heat the bearing seats on the cover using the
heat gun.
- Support the hub cover using the stud bolt set.
Specific tooling
020151Y Air heater
020476Y Stud bolt set
- Insert the intermediate shaft bearing on the cover
using the special tool.
N.B.
PLACE IT WITH THE BALLS FACING THE HUB (THIS AP-
PLIES TO BEARINGS WITH PLASTIC CAGE).
Specific tooling
020376Y Adaptor handle
020360Y 52x55-mm Adaptor
020363Y 20-mm guide
- Heat the gear shaft bearing seat from the cover
outside.
- Insert the gear shaft bearing on the cover using
the special punch until abutment.
Specific tooling
020376Y Adaptor handle
020360Y 52x55-mm Adaptor
020483Y 30-mm guide
- Replace the snap ring
Engine Beverly 500 i.e.
ENG - 78
