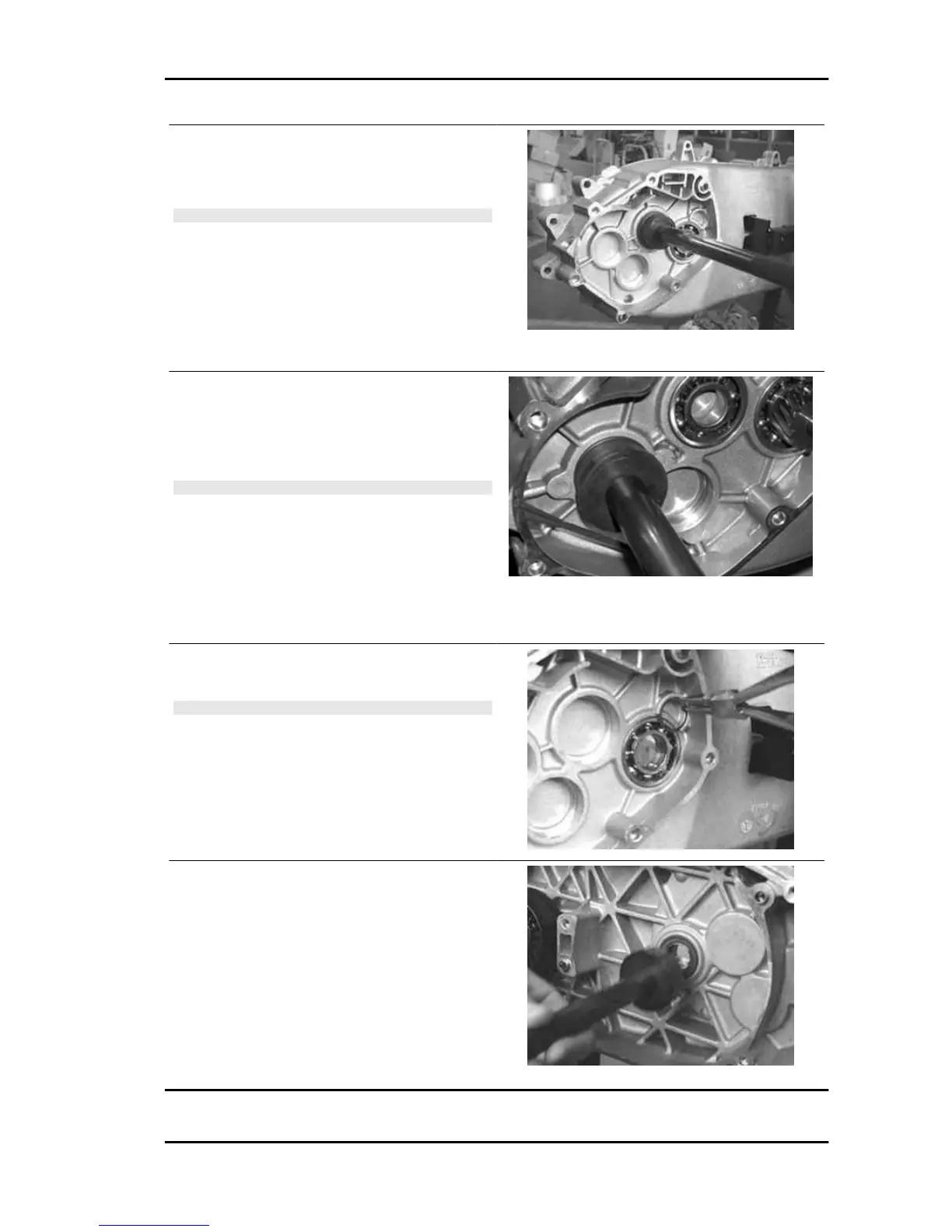

- Heat the intermediate gear bearing seat.
- Insert the intermediate shaft bearing using the
special tool.
N.B.
PLACE IT WITH THE BALLS FACING THE HUB (THIS AP-
PLIES TO BEARINGS WITH PLASTIC CAGE).
Specific tooling
020376Y Adaptor handle
020359Y 42x47-mm Adaptor
020363Y 20-mm guide
- Heat the gear shaft bearing seat on the crank-
case.
- Insert the gear shaft bearing in the upper crank-
case seat using the special tool.
N.B.
PLACE IT WITH THE BALLS FACING THE HUB (THIS AP-
PLIES TO BEARINGS WITH PLASTIC CAGE).
Specific tooling
020376Y Adaptor handle
020359Y 42x47-mm Adaptor
020412Y 15-mm guide
- Place the safety lock Seeger ring of the driven
pulley shaft bearing.
N.B.
PLACE IT IN THE POSITION SHOWN IN THE FIGURE.
- Insert the pulley shaft oil guard on the transmis-
sion side.
