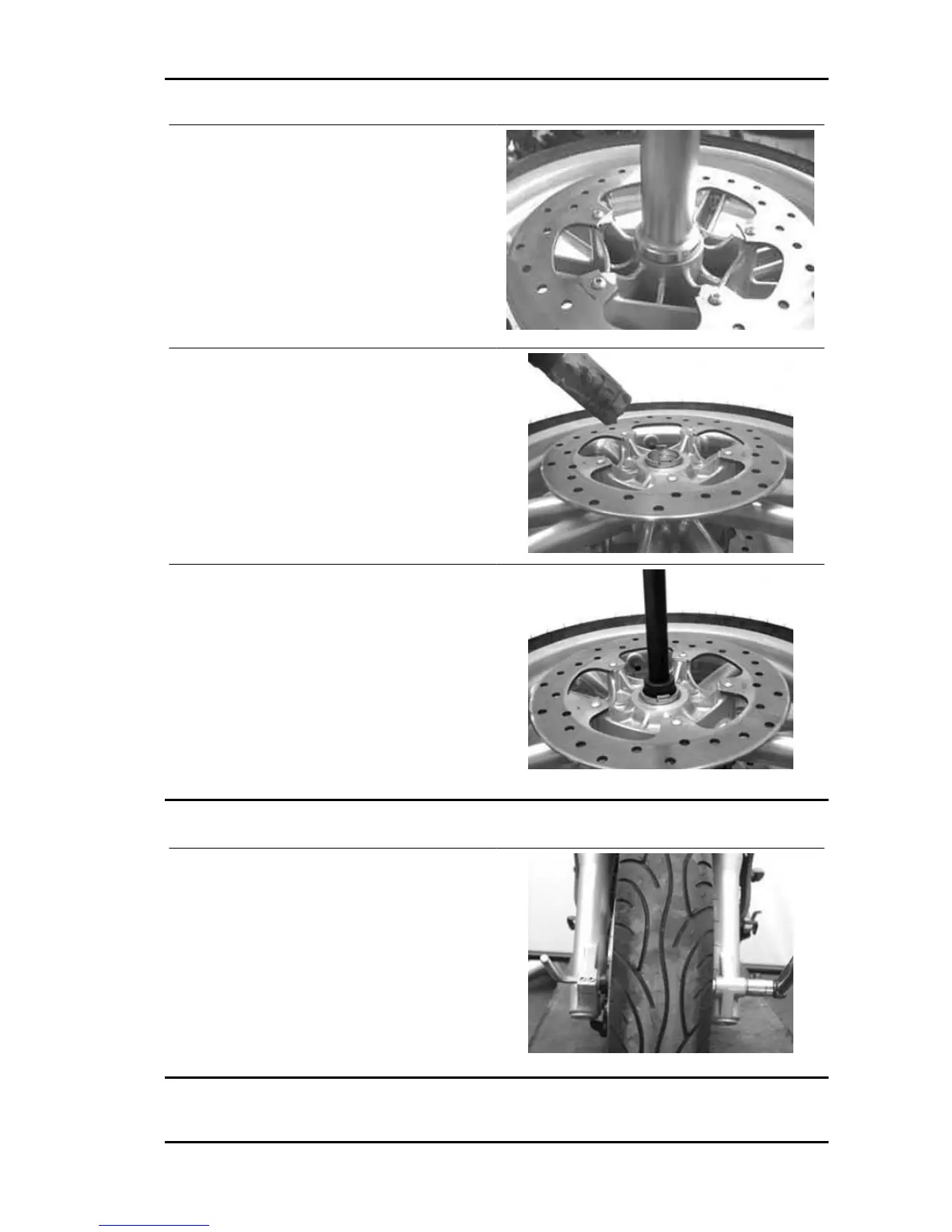

Reinsert the spacer bushing on the
brake disc side using the specific tool
and drive it until it stops.
Specific tooling
020376Y Adaptor handle
020359Y 42x47-mm Adaptor
020412Y 15-mm guide
020201Y Spacer bushing driving tube
•
Turn over the wheel and insert the in-
side spacer with the section fitted with
the Seeger ring facing the left side
bearing previously installed.
•
Heat the seat of the bearing on the od-
ometer movement sensor side with the
heat gun.
•
Fit the 2 bearings using the punch con-
sisting of adaptor handle, 32x35 mm
adaptor and 15 mm guide, and drive it
until it stops.
Specific tooling
020376Y Adaptor handle
020357Y 32x35-mm Adaptor
020412Y 15-mm guide
Refitting the front wheel
- To refit, carry out the removal operations but in
reverse order, observing the prescribed torques.
- Place the odometer movement sensor until the
reference correctly fits into its slot.
Locking torques (N*m)
Front wheel axle 45 to 50 Safety screw on fork
leg 6 ÷ 7
Beverly 500 i.e. Suspensions
SUSP - 263
