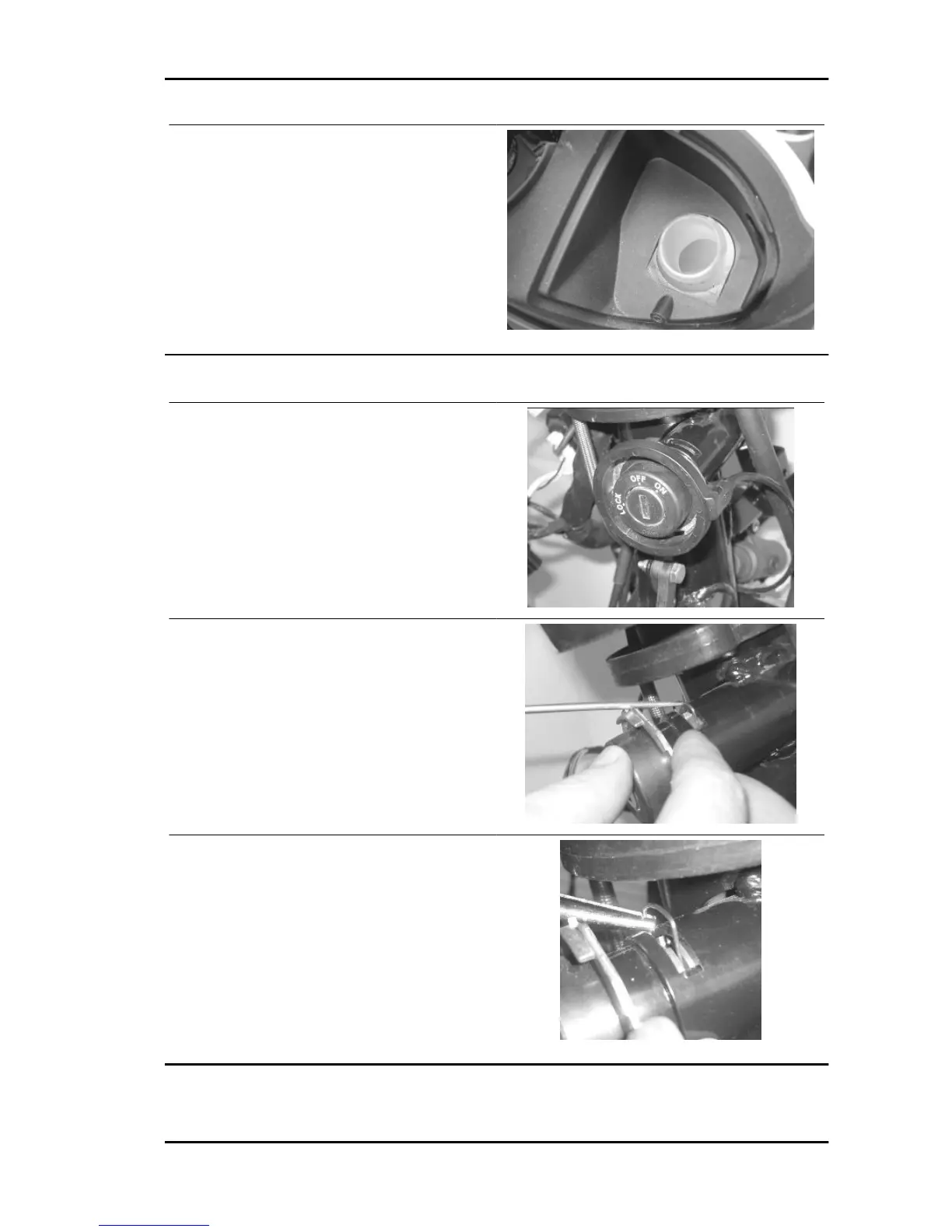

Remove the cover and rubber gasket
from the expansion tank filler.
•
Detach the shield back plate and re-
lease the expansion tank filler from the
hole on the shield back plate.
•
Remove the shield back plate.
Removing the ignition key-switch when on *off*
•
Remove the rear shield.
•
Remove the immobilizer aerial shown
in the figure.
•
Lightly push the master-cylinder and
extract the lock from the notch shown
in the figure.
•
Hence extract the master-cylinder
complete with the lock body.
•
To refit place the spring on the right
side hole.
•
Insert the master-cylinder and the lock
body and, using a pair of pliers, drive
the stop spring until it stops.
Beverly 500 i.e. Chassis
CHAS - 317
