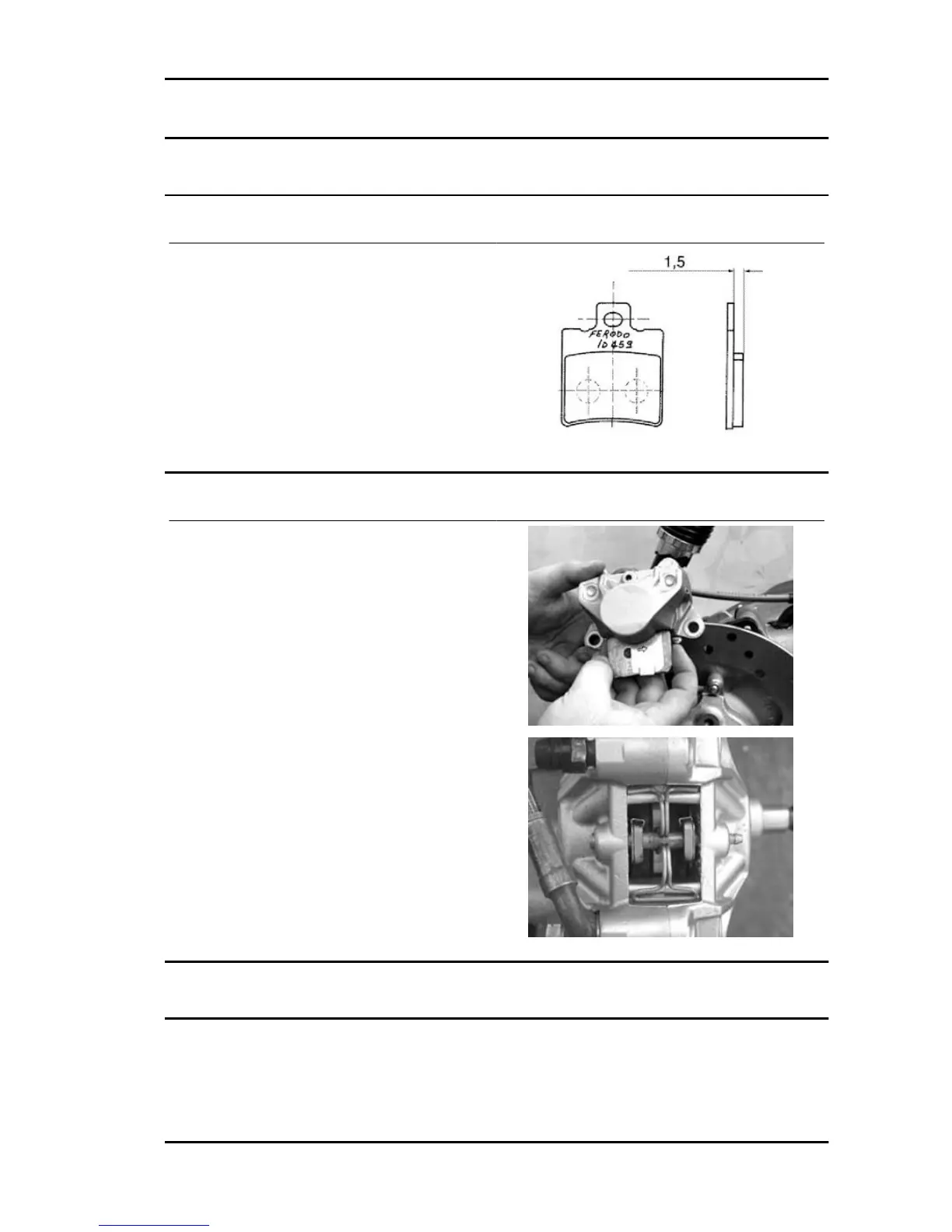

Rear brake pads
Removal
- Remove the rear brake calliper
- Remove the brake pad and check there are no
faults or warping. If it does, replace it.
- Check that the thickness of the friction material
is over 1.5 mm. Otherwise, replace it.
Refitting
•
Insert the brake pads according to the
direction of rotation of the brake disc,
as indicated by the arrow on the anti-
vibration pad.
•
Insert the pad mounting pin and the re-
tain spring with its ends facing the
bleed screw as shown in the figure.
•
Insert the retaining ring on the pin
•
Fasten the rear brake calliper to the
bracket and tighten the 2 screws to the
prescribed torque.
Locking torques (N*m)
Rear brake calliper fixing screws 20 to 25
