PIAGGIO Beverly 500 i.e. - Page 294

Refitting
•

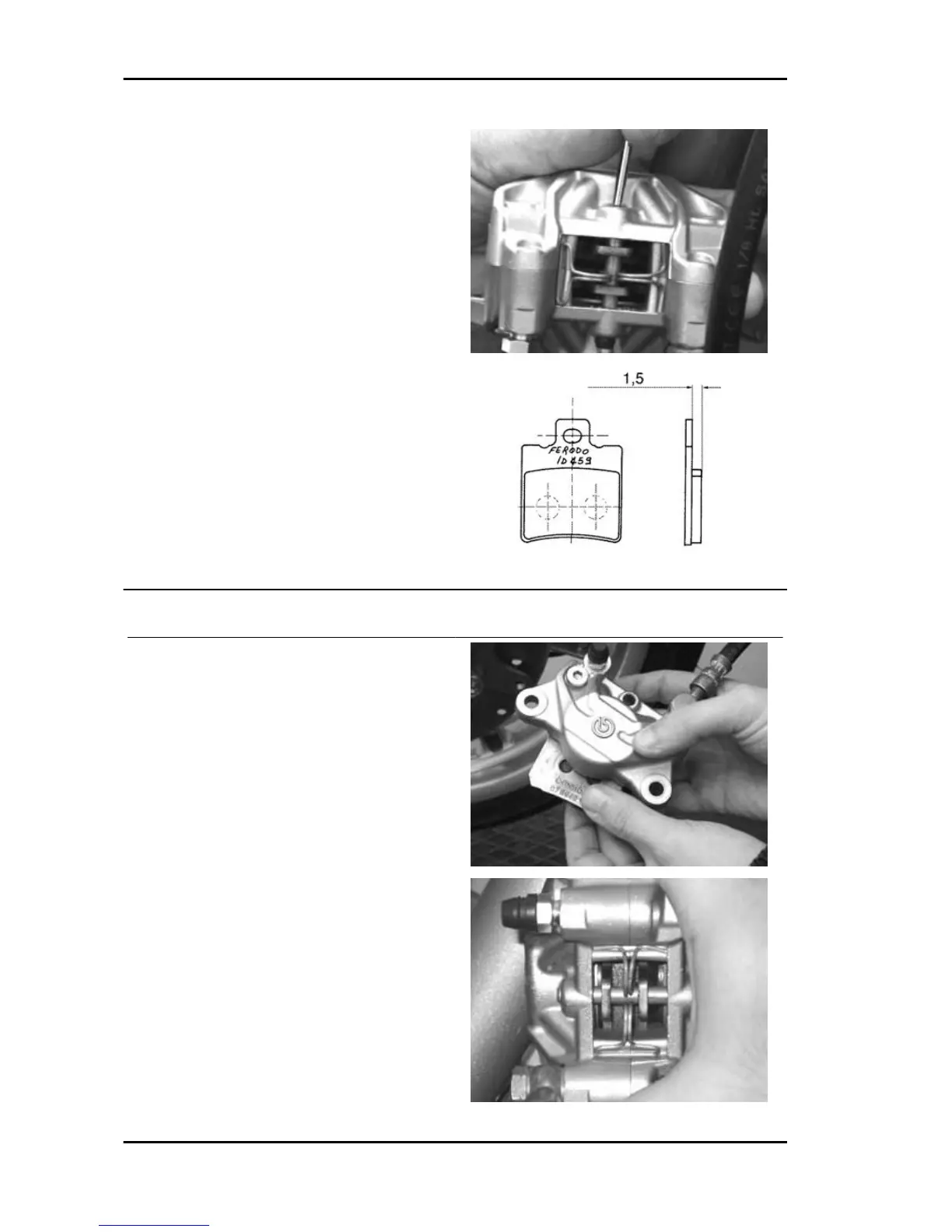

Insert the break pad in the calliper as
shown in the photograph
•
Insert the pad fixing pin and the reten-
tion spring being careful to position its
ends pointing towards the bleed screw
as shown in the photograph
•
Insert the circlips on the break pad fix-
ing pin
•
Keep the brake pad in contact with the
plungers and insert the calliper in the
brake disc.
Braking system Beverly 500 i.e.
BRAK SYS - 294
