PIAGGIO Beverly 500 i.e. - Constant Supply Circuit Check

Constant supply circuit check

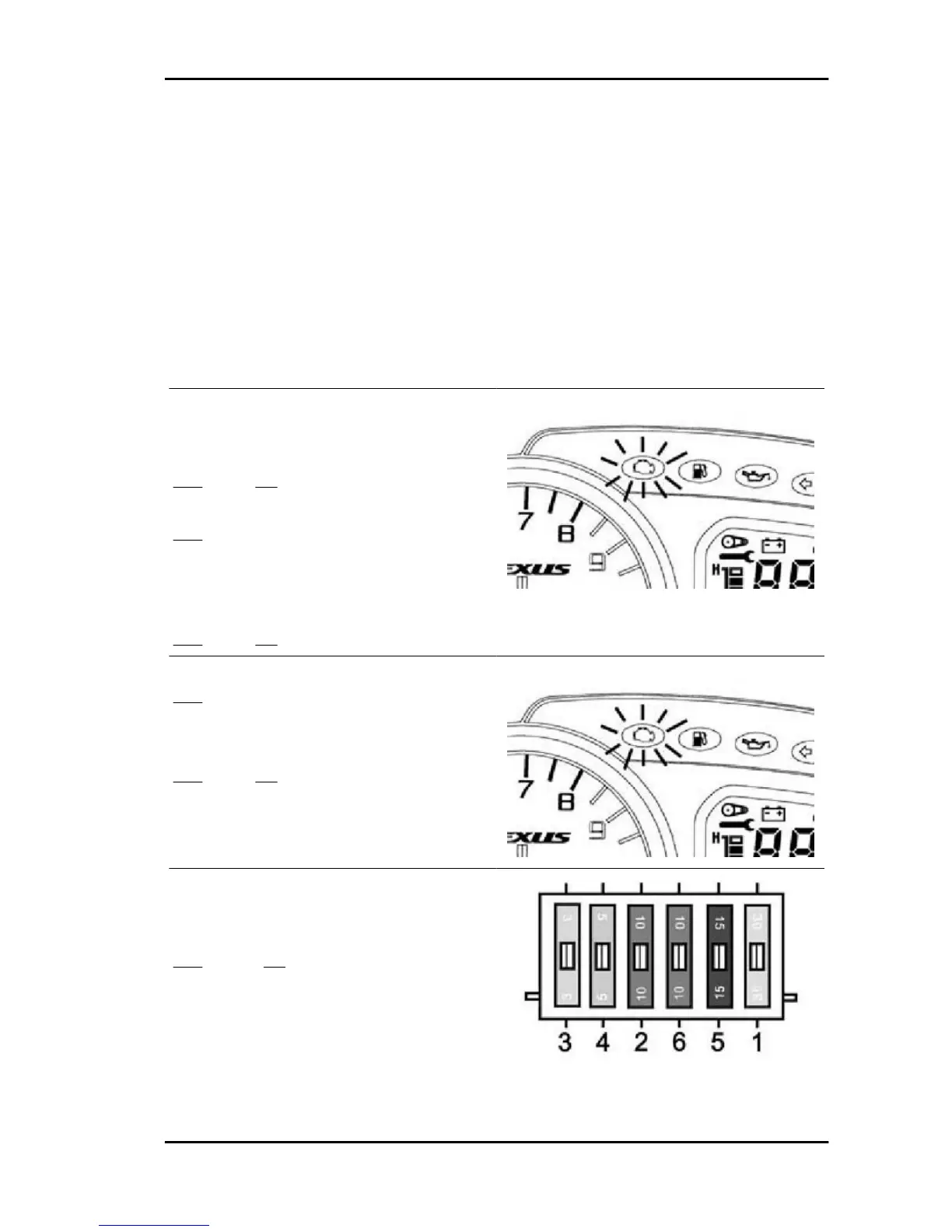

The decoder basic power supply is necessary for the deterrent flashing management. The injection
control unit power supply is necessary for the Stepper motor management.
A power supply failure disables both ignition and injection.
In case of power supply faults, the diagnostic tester gives the information "NO REPLY FROM THE
CONTROL UNIT".
To carry out the check, proceed as follows:
Specific tooling
020680Y Diagnosis Tool
1 - Check whether the immobiliser system LED in-
dicates that the switch is in position "ON" and that
the deterrent flashing is on.
YES go to 2 NO go to 7
2 - The decoder is properly programmed.
YES go to 3
3 - Switch set to "ON" with side stand raised and
emergency switch set to "OFF". The injection tell-
tale light turns on for about 3 seconds.
YES go to 5 NO go to 4
4 - Check the instrument unit and its power supply.
YES go to 3
5 - Set the emergency switch to "RUN". The injec-
tion telltale light comes on for about 5 seconds.
YES go to 6 NO go to 7
6 - The injection controller is certainly powered.
7 - Check the efficiency of the 3 A fuse no. 3 loca-
ted in the fuse-holder under the right side.
YES go to 10 NO go to 8
