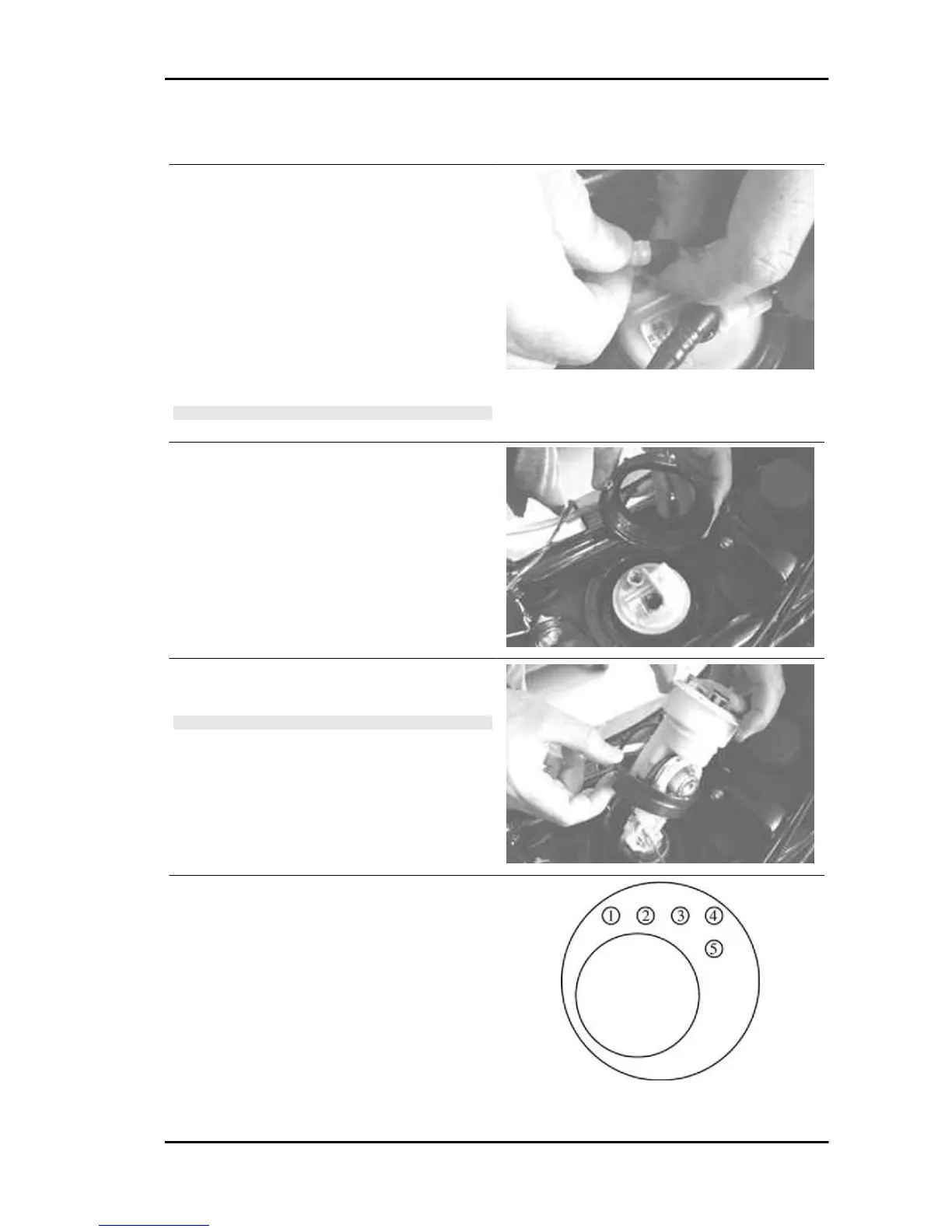

Pump bracket overhaul
To remove the pump support from the tank, pro-
ceed as follows:
- Disconnect the electric connector.
- Start the engine and wait for the spontaneous
stop.
- Clean the tank and the pump support (wash and
blow with compressed air, if necessary).
- Disconnect the delivery and return pipes by the
fast-release fittings.
CAUTION
PREVENT ANY FUEL SPRAYING.
- Loosen the pump support mounting ring nut (RH
threading).
- Remove the pump support and the sealing gas-
ket.
N.B.
UPON EXTRACTING IT, BE CAREFUL NOT TO DEFORM
THE FLOATING ARM.
To replace the components, proceed as follows:
(1) Level indicator:
- Note the assembly position and the path of the
two connecting wires.
pos 2 = wire connected to the circuit
pos 3 = wire connected to the movable arm
Beverly 500 i.e. Injection
INJEC - 205
